CCTV Security Cameras Product Store Choice Collections provide cctv camera,camera system Terrific Deals 16mm lens 5MP 2592x1944 CMOS Aptina MI5100 Endoscope Free driver industrial usb camera /web camera usb 5mp for machine vision. Get Discount Now! Only US $47.36/piece at this time. Hurry buy Now before back to normal price! Normal price US $51.48 or you can Check price now. Dont waste your time. Buy Now only in ELP Ailipu camera module Store Trusted Seller Store!
Inexpensive rate and free delivery. Let's buy prior to costs climb.
When you use it, a great item or service is produced and also given of course to supply convenience and make you comfortable. There are so many methods to get a high quality product. The swiftly expanding on-line world makes it easier for you to look for items to your taste and needs. Among these items is actually extremely understanding of your requirements for this Terrific Deals 16mm lens 5MP 2592x1944 CMOS Aptina MI5100 Endoscope Free driver industrial usb camera /web camera usb 5mp for machine vision special goods. High technology-made products provide the purchasers the opportunity they desire.

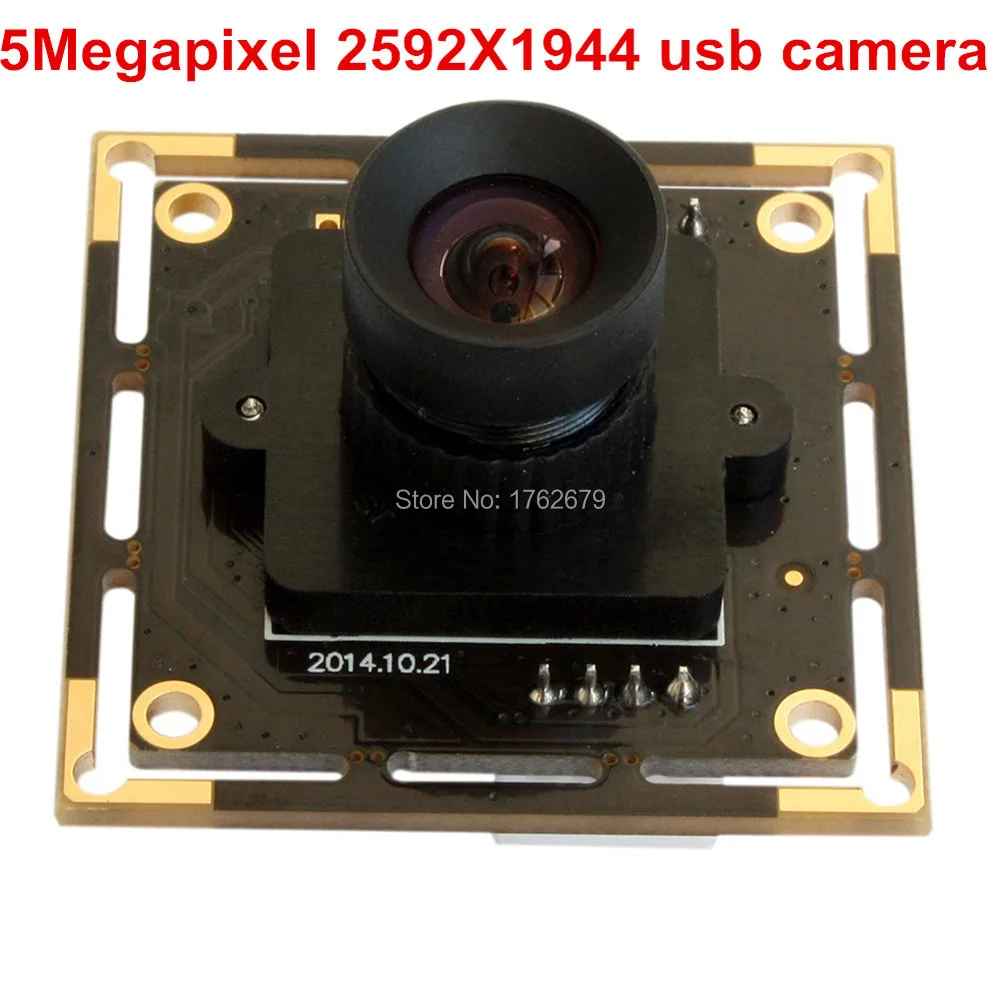

16mm lens 5MP 2592x1944 CMOS Aptina MI5100 Endoscope Free driver industrial usb camera /web camera usb 5mp for machine vision
Product detail
Effect
Package
We have different case for this camera module, if you need, please cntact us
such as
or
Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution
The HD 5Megapixel USB CMOS board camera module,which meet those program need to see clear all kinds of distance. It is ideal for many applications like security systems, portablevideo system, video phones, industrial machine monitoring and toys.
Feature
*Super high resolution 5mp USB camera module
*Can used for micro endoscope camera
*5Megapixel CMOS sensor for high quality image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance-ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate-30 fps in 1280X720 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Specification
Model ELP-USB500W05G
SensorAptina MI5100
Lens Size1/2.5 inch(4:3)
Pixel Size2.2um
image area 5.7mm x 4.28mm
Max. Resolution2592(H) X 1944(V)
Compression format MJPEG / YUV2(YUYV)
Resolution & frame2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG
1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG
1920x1080 @ 30fps MJPEG / 1280x720 800x600
S/N Ratio38dB
Dynamic Range70dB
Sensitivity 1.4V/lux-sec@550nm
Mini illumination0.1lux
Shutter Type Electronic rolling shutter / Frame exposure
Connecting Port type USB2.0 High Speed
Free Drive ProtocolUSB Video Class(UVC)
OTG protocol USB2.0 OTG
AECSupport
AEB Support
AGC Support
Button camera Support
Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
Lens ParameterSize: 1/2.5, Iris: F2.4, Focus: 3mm, FOV: 100 Degree
LED board control interfaceSupport 2P-1.25mm socket
LED board power connector Support 2P-2.0mm socket
Power supply USB BUS POWER 4P-2.0mm socket
Operating Voltage DC5V
Working current150mA~200mA
Working temperature -10~700C
Storage temperature -20~850C
Board size 38X38mm(compatible 32X32mm)
Operating system request WinXP/Vista/Win7/Win8
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above with UVC
Applications
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental
monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Terrific Deals 16mm lens 5MP 2592x1944 CMOS Aptina MI5100 Endoscope Free driver industrial usb camera /web camera usb 5mp for machine vision
