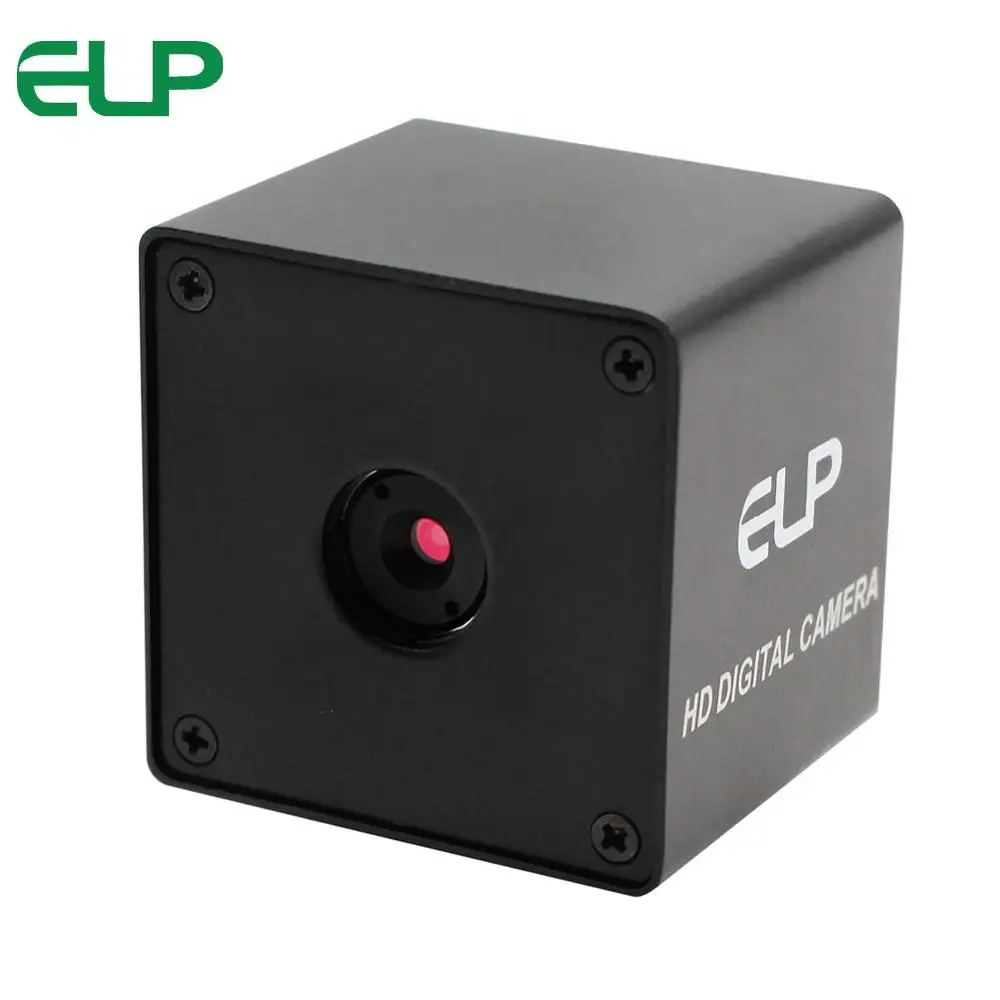

5 megapixel MJPEG UVC board ATM Kiosk industrial machine vision autofocus usb camera
General Description
The HD 5Megapixel USB CMOS board camera module(model: ELP-USB500W02M serials), adopting 800W Auto Focus HD lens, which meet those program need to see clear all kinds of distance. It is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by OmniVision OV5640, one of the world leaders in this field of electronics.
The 5Megapixel Auto Focus USB camera are ideal for equipment manufacturers, experimenters and hobbyists.
Applications
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site
monitoring, environmental monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player,
LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external,
evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system,
simple security system, teaching system, Interactive system, automobile data recorder. Project video
capture, credit card machine, attendance machine, Voting system, High speed video shooting Device,
exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance,
micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Features
*800W Auto Focus HD Lens
*5Megapixel CMOS sensor for high quality image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate–30 fps in 1280X720 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Parameters
Image Sensor: OmniVision1/4” Color CMOS image sensor OV5640
LENS: HD Auto Focus Lens
(can also choose other suitable lens as your required view angle)
CABLE: 2m USB cable (1M/3M/5M optional)
(can also make the other special length cable according to your requirement)
Effective Pixels:
2592 (H) x 1944 (V) pixels
2048 (H) x 1536 (V) pixels
1600 (H) x 1200 (V) pixels
1920 (H) x 1080 (V) pixels
1280 (H) x 1024(V) pixels
1280 (H) x 720 (V) pixels
1024 (H) x 768 (V) pixels
800 (H) x 600 (V) pixels
640 (H) x 480 (V) pixels
(Other special size resolution is customized)
Signal Output: Serial data for USB standard compliant 2.0
Performance:
2592 (H) x 1944 (V) pixels MJPEG 15fps YUY2 3fps
2048 (H) x 1536 (V) pixels MJPEG 15ps YUY2 3fps
1600 (H) x 1200 (V) pixels MJPEG 15fps YUY2 3fps
1920 (H) x 1080 (V) pixels MJPEG 15fps YUY2 3fps
1280 (H) x 1024 (V) pixels MJPEG 15fps YUY2 7.5fps
1280 (H) x 720 (V) pixelsMJPEG 30fps YUY2 7.5fps
1024 (H) x 768 (V) pixelsMJPEG 30fps YUY2 15fps
800 (H) x 600 (V) pixels MJPEG 30fps YUY2 30fps
640 (H) x 480 (V) pixels MJPEG 30fps YUY2 30fps
Operating System: Linux 2.6.26 or above, Windows XP SP2or above
UVC: Windows XP SP2 or above
Operating temperature: -30°C-70°C
Power Consumption: 5V 120mA
Dimensions (mm): 32mm*32mm/38mm*38mm
(can make other dimension as customers’ requirement)
Product detail
Optional color case
Inside the case
Effect
Package
Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution
