CCTV Security Cameras Product Store Choice Collections provide remote cctv, spy camera Big Stock Limited 170 degree fisheye lens 5MP 2592x1944 MJPEG YUY2 ov5640 HD USB cmos wide angle camera module with UVC,Auto white blance AEB. Get Discount Now! Only US $46.55/piece at this time. Hurry buy Now before back to normal price! Normal price US $50.60 or you can Check price now. Dont waste your time. Buy Now only in ELP Ailipu camera module Store Trusted Seller Store!
Quality items ensure your life extra comfy when using it. If you are interested to buy it, you can directly get in touch with the sales to get even more info concerning this quality goods.

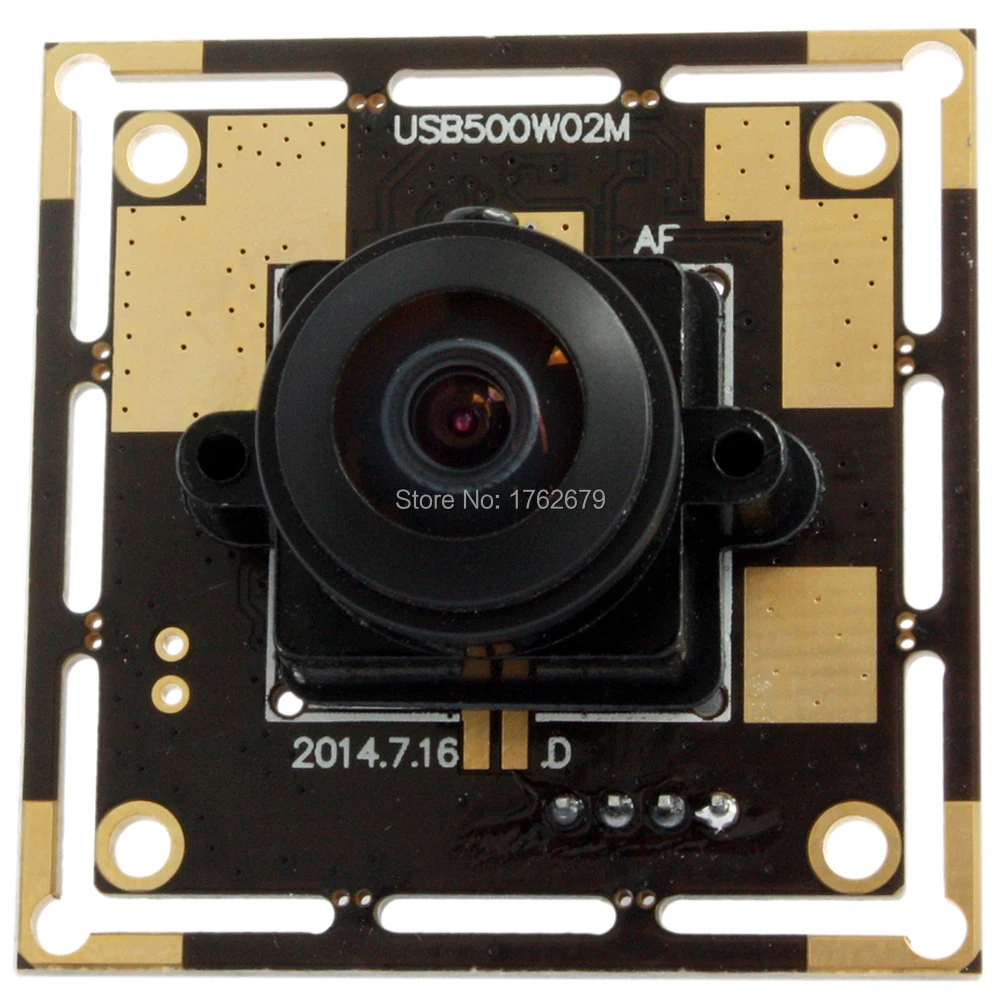

170 degree fisheye lens 5MP 2592x1944 MJPEG YUY2 ov5640 HD USB cmos wide angle camera module with UVC,Auto white blance AEB
Optional models
ELP-USB500W02M-L21(2.1mm lens)
ELP-USB500W02M-L28(2.8mm lens)
ELP-USB500W02M-L36(3.6mm lens)
ELP-USB500W02M-L60(6mm lens)
ELP-USB500W02M-L80(8mm lens)
ELP-USB500W02M-L12(12mm lens)
ELP-USB500W02M-L170 (170 degree fishey lens)
General Description
1. High speed USB 2.0 interface;
2. High quality image 5Megapixel CMOS sensors OmniVision;
3. High frame rate 30fps@1280X720P resolution
4. UVC.
Features
*5Megapixel CMOS sensor for high quality image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate–30 fps in 1280X720 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above. Android
*Camera with UVC.
Parameters
Image Sensor: OmniVision1/4” Color CMOS image sensor OV5640
LENS: 3.6mm /2.1mm/2.8mm/6mm/8mm/12mm Optional)
(can also choose other suitable lens as your required view angle)
CABLE: 1m USB cable (2M/3M/5M optional)
(can also make the other special length cable according to your requirement)
Specification:
| Optional models | ELP-USB500W02M-L21(2.1mm lens) ELP-USB500W02M-L170 (170-180 degree fisheye lens) |
| Sensor | 1/4" CMOS OV5640 |
| Lens size | 500W, 5.0megapixel, Max. 2592(H)x1944(V)pixels |
| Max. Resolution | 2592X1944 |
| Picture format | MJPEG |
| USB Protocal | USB2.0 HS/FS, USB1.1 FS |
| Support free driver | USB Video Class(UVC)1.1 |
| Auto exposure AEC | Support |
| Auto white blance AEB | Support |
| Frame rate | 2592 (H) x 1944 (V) pixels MJPEG 15fps YUY2 3fps |
| Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |
| Night vision | optional, can choose IR board |
| view angle | 30-150 degree optional |
| voltage | DC 5V |
| current | 150mA |
| work temperature | DEGREES(-20~70) |
| Size | 32x32mm/38*38 |
| Support OS | WinXP/Vista/WIN7/WIN8 |
Applications
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site
monitoring, environmental monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player,
LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external,
evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system,
simple security system, teaching system, Interactive system, automobile data recorder. Project video capture,
credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system,
Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance,
endoscope, Medical auxiliary equipment, etc.
Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution
