Hot Offers Night Vision CMOS OV2710 Full HD 1920*1080 MJPEG 30fps/60fps/120fps 12pcs IR LED and IR CUT security video usb Camera module

Hot Offers Night Vision CMOS OV2710 Full HD 1920*1080 MJPEG 30fps/60fps/120fps 12pcs IR LED and IR CUT security video usb Camera module Rating: 4.9 out of 5

CCTV Security Cameras Product Store Choice Collections provide cctv camera, spy camera Hot Offers Night Vision CMOS OV2710 Full HD 1920*1080 MJPEG 30fps/60fps/120fps 12pcs IR LED and IR CUT security video usb Camera module. Get Discount Now! Only US $41.49/piece at this time. Hurry buy Now before back to normal price! Normal price US $45.10 or you can Check price now. Dont waste your time. Buy Now only in ELP Ailipu camera module Store Trusted Seller Store!
Excellent

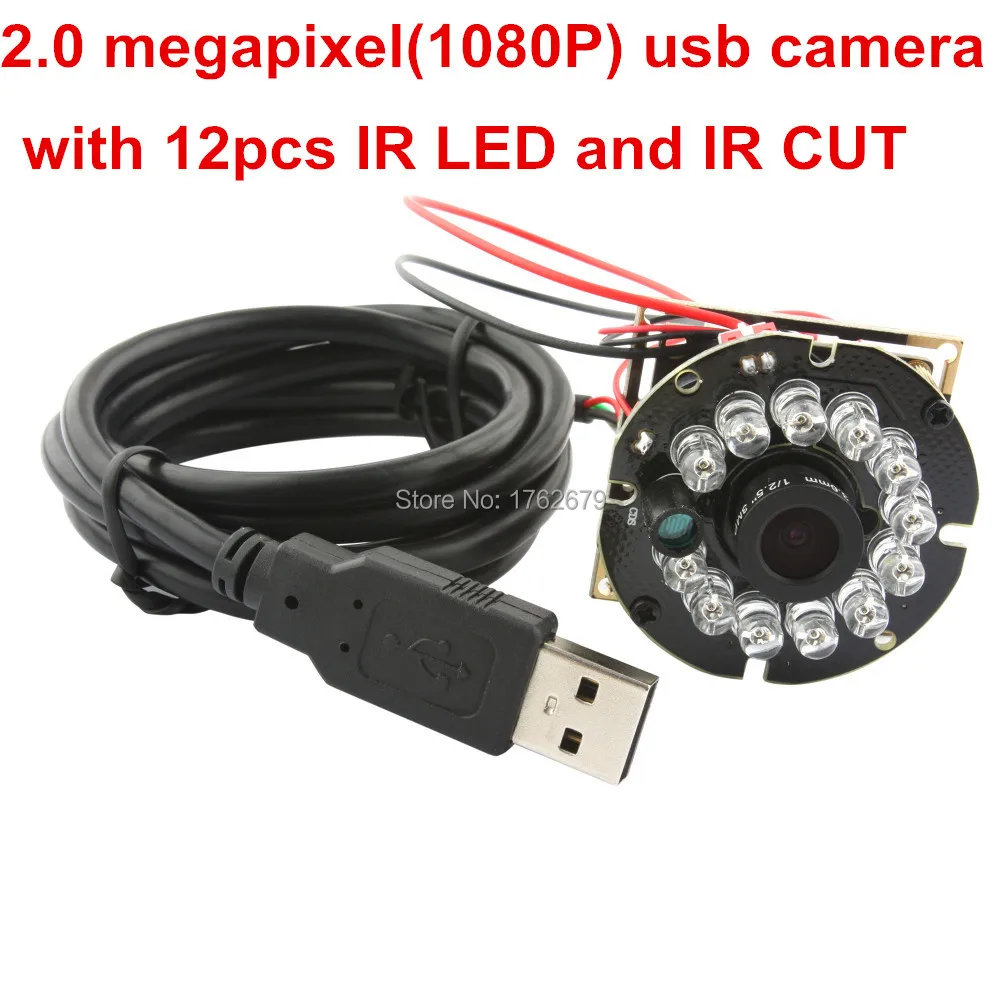

Night Vision CMOS OV2710 Full HD 1920*1080 MJPEG 30fps/60fps/120fps 12pcs IR LED and IR CUT security video usb Camera module

General Description

The HD 1080P USB CMOS board camera module(model: ELP-USBFHD05M serials) is ideal for many applications like security systems, portable video system, video phones, industrial

machine monitoring and toys. It use high quality image sensors made by OmniVision,

one of the world leaders in this field of electronics.

The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.

Applications

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.

Features

*CMOS 1080P sensor for high quality image and low power consumption.

*High speed USB 2.0 interface for high resolution PC camera interface.

*high pixel technology for sharp image and accurate color reproduction.

*low light performance – ideal for any lighting condition.

*Super small outline and thin profile for embedded applications.

*High frame rate– deliver 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.

*High quality lens, true and undistorted color image.

*Low power consumption – ideal for portable equipment.

*UVC for use in Android, Linux, Windows , MAC, SP2 or above.

*Camera with UVC.

Specification

LENS: 3.6mm /2.1mm/2.8mm/6mm/8mm/12mm Optional)
(can also choose other suitable lens as your required view angle)

CABLE: 1m USB cable (2M/3M/5M optional)

Optional models

ELP-USBFHD05M

Sensor

1/2.7" CMOS OV2710

Lens size

200W, 2.0megapixel, 1920(H)x1080(V)pixels

Max. Resolution

1920X1080

Picture format

MJPEG

USB Protocal

USB2.0 HS/FS, USB1.1 FS

Support free driver

USB Video Class(UVC)1.1

Auto exposure AEC

Support

Auto white blance AEB

Support

Frame rate

1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps
1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps
800 (H) x 600 (V) pixelsMJPEG 60fps YUY2 21fps
640 (H) x 480 (V) pixelsMJPEG 120fps YUY2 30fps
352(H)x 288 (V) pixelsMJPEG 120fps YUY2 30fps
320 (H) x 240 (V) pixelsMJPEG 120fps YUY2 30fps

Adjustable parameters

Brightness/Contrast/Color saturation /Definition/Gamma/WB

Night vision

with IR cut & IR LED board

view angle

30-185 degree optional

voltage

DC 5V

current

150mA

work temperature

DEGREES(-20~70)

Size

32x32mm/38*38

Support OS

WinXP/Vista/WIN7/WIN8 /Linux with UVC
Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above

Effective Pixels:

1920 (H) x 1080 (V) pixels
1280 (H) x 1024 (V) pixels
1280 (H) x 720 (V) pixels
1024 (H) x 768 (V) pixels
800 (H)x 600 (V) pixels
640 (H)x 480 (V) pixels
352(H)x 288 (V) pixels
320 (H)x 240 (V) pixels

Product detail

Daytime effect

Night vision effect

Package

We also have dome case for this camera board

ELP usb camera module
