CCTV Security Cameras Product Store Choice Collections provide camera system,security surveillance,cctv camera Fast Deals 170 degree lens wide angle cctv camera secuirity 5MP 2592*1944 HD OV5640 mini 38*38mm cmos usb camera module auto focus. Get Discount Now! Only US $66.23/piece at this time. Hurry buy Now before back to normal price! Normal price US $71.99 or you can Check price now. Dont waste your time. Buy Now only in ELP Ailipu camera module Store Trusted Seller Store!
170 degree lens wide angle cctv camera secuirity 5MP 2592*1944 HD OV5640 mini 38*38mm cmos usb camera module auto focus
The HD 5Megapixel USB CMOS board camera module(model: ELP-USB500W02M serials), adopting 800W Auto Focus HD lens,which meet those program need to see clear all kinds of distance. It is ideal for many applications like security systems, portablevideo system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by OmniVision OV5640,one of the world leaders in this field of electronics.
*Super high resolution 5mp USB autofocus camera module
*Can used for micro endoscope camera
*800W Auto Focus HD Lens
*5Megapixel CMOS sensor for high quality image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate–30 fps in 1280X720 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
| Optional models | ELP-USB500W02MA-AF auto focus usb camera module |
| Sensor | 1/4" CMOS OV5640 |
| Lens size | 500W, 5.0megapixel, Max. 2592(H)x1944(V)pixels |
| Lens | 800W Auto Focus HD Lens |
| Max. Resolution | 2592X1944 |
| Picture format | MJPEG |
| USB Protocal | USB2.0 HS/FS, USB1.1 FS |
| Support free driver | USB Video Class(UVC)1.1 |
| Auto exposure AEC | Support |
| Auto white blance AEB | Support |
| Frame rate | 2592 (H) x 1944 (V) pixels MJPEG 15fps YUY2 3fps |
| Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |
| Night vision | optional, can choose IR board |
| view angle | 30-60 degree optional |
| voltage | DC 5V |
| current | 150mA |
| work temperature | DEGREES(-20~70) |
| Size | 32x32mm/38*38 |
| Support OS | WinXP/Vista/WIN7/WIN8 Linux with UVC |
Applications
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
Super small outline and thin profile for embedded applications

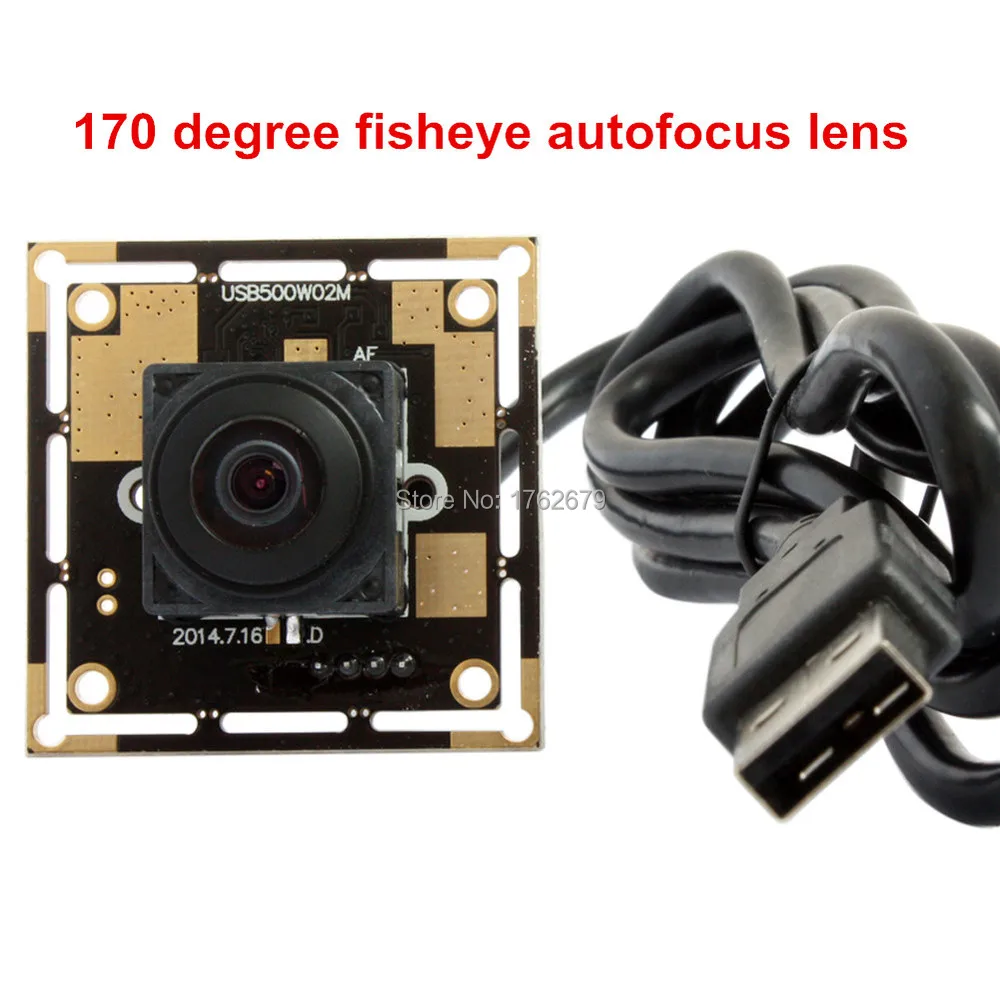

170 degree fisheye lens
Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution.
