CCTV Security Cameras Product Store Choice Collections provide cctv camera,cctv system,camera system Hot Promo Free shipping 1.3MP 960P HD 6mm manual focus lens 1/3 Aptina AR0130 CMOS surveillance Video record usb camera windows software. Get Discount Now! Only US $54.45/piece at this time. Hurry buy Now before back to normal price! Normal price US $59.18 or you can Check price now. Dont waste your time. Buy Now only in ELP Ailipu camera module Store Trusted Seller Store!
Quality items guarantee your life more comfortable when using it. If you are interested to purchase it, you can directly call the sales to get even more info regarding this high quality product.

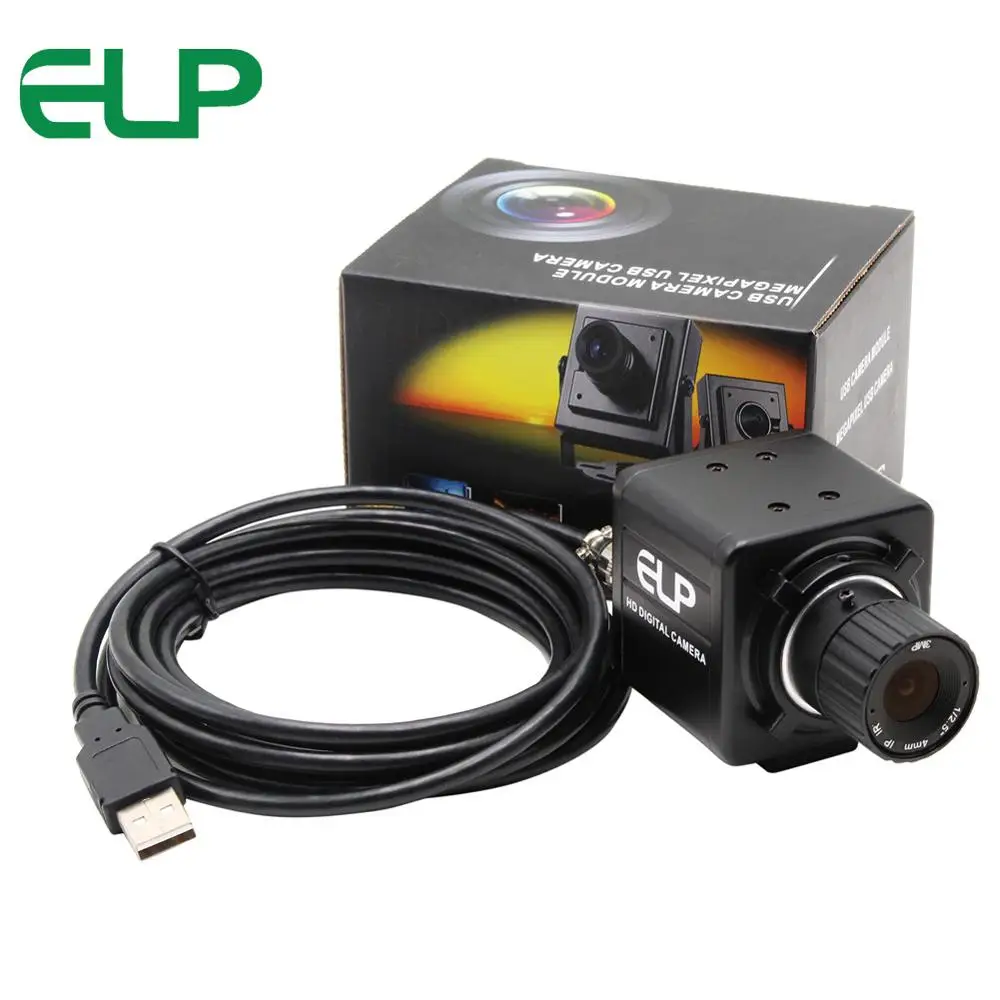

1.3MP 960P HD 6mm manual focus lens 1/3 Aptina AR0130 CMOS surveillance Video record usb camera windows software
Package include:
1) 1PC 1.3mp usb camera with 6mm manual focus CS lens
2) 1PC 3m usb cable ( 1m/5m cable optinal)
*1280x960 resolution USB Camera
*1/3 Aptina AR0130 COMS sensor
*Suport YUY and MJPEG format
*high pixel technology for sharp image and accurate color reproduction
*low light performance –working perfect both in light condition and low light condition
*Super small outline and thin profile for embedded applications
*High frame rate– deliver 60 fps in VGA
*High quality lens, 4/6/8mm manual focus CS lens
* WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above
| Module No. | ELP-USB130W01MT |
| Module Size | 38mm × 38mm 32mm × 32mm |
| Temperature (Operation) | -20°C to 70°C |
| Temperature (Stable Image) | 0°C to 60°C |
| Camera Board Assembly technique | SMT (ROSH) |
| Focus | Manual |
| Object distance | 5CM-100M |
| Resolution | 600LW/PH (Center) |
| interface | USB 2.0 High Speed |
| protocol | USB Video Class UVC |
| Power | USB bus power |
| Operating system request | Win XP\Win7\Win8\Android\Linux\Mac OS |
| Certifications | FCC and CE |
| Sensor Type | AR0130 (1/3” ) |
| Active Array Size | 1280 *960 |
| Minimal illumination | 0.01Lux |
| Pixel Size | 3.75um |
| Maximum Image Transfer Rate | 1280 (H) x 960 (V) pixels MJPEG 15fps 1280 (H) x 720 (V) pixels MJPEG 30fps 800 (H) x 600 (V) pixels MJPEG 30fps 640 (H) x 480 (V) pixels MJPEG 30fps 320 (H) x 240 (V) pixels MJPEG 30fps |
| S/N Ratio | 44dB |
| Dynamic Range | 83.5dB |
| Shutter | Rolling shutter/ frame exposure |
| Lens Type | |
| Lens Construction | 5G+IR |
| Focal Length | 3.6mm (2.1mm/2.8mm/6mm/8mm/12mm Optional) |
| F/No | 1.8 |
| BFL(Optical) | 6.5mm |
| FOV | 105° |
| IR Filter | 650±10nm |
| DSP Type | RV1080P |
| AGC/AEC/AWB/ABF | Auto |
| Output Formats | YUYV/MJPEG |
| IR CUT | SUPPORT |
| Adjustable parameters | Brightness Contrast Hue Saturation Sharpness Gamma White BalanceExposure Focus |
| Package | LQFN-40pin |
| USB Cable | 1M(2M/3M/5M Optional) |
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental
monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro
HD surveillance, endoscope, Medical auxiliary equipment, etc.
Without the box, the camera module
Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution
