CCTV Security Cameras Product Store Choice Collections provide camera system,security camera,cctv camera Super Gift Night vision 1.3mp 8mm lens cmos mini IR board usb infrared camera module for any lighting condition. Get Discount Now! Only US $40.48/piece at this time. Hurry buy Now before back to normal price! Normal price US $44.00 or you can Check price now. Dont waste your time. Buy Now only in ELP Ailipu camera module Store Trusted Seller Store!
Great New Super Gift Night vision 1.3mp 8mm lens cmos mini IR board usb infrared camera module for any lighting condition goods could improve the quality of your life. Qualified to be bought. Affordable rate as well as complimentary delivery. Let's acquire Super Gift Night vision 1.3mp 8mm lens cmos mini IR board usb infrared camera module for any lighting condition prior to prices rise.

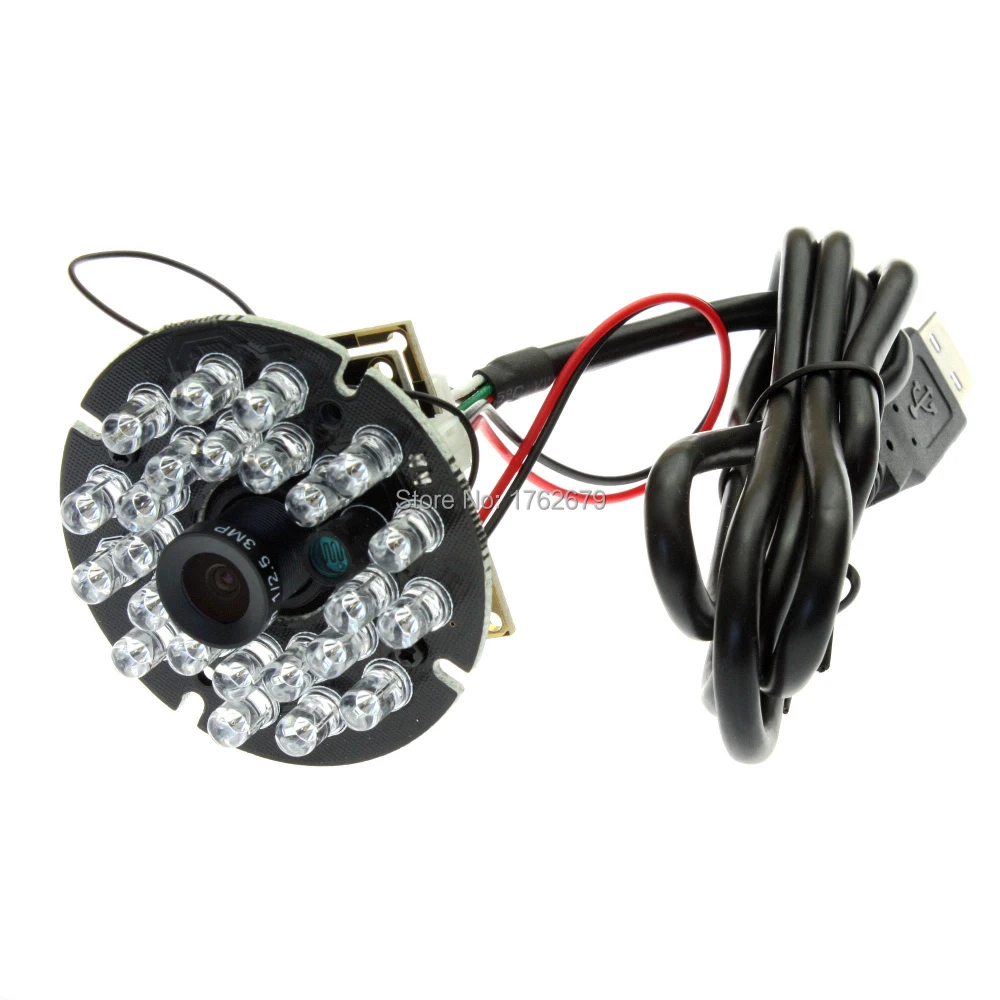

Night vision 1.3mp 8mm lens cmos mini IR board usb infrared camera module for any lighting condition
night vision usb camera
Day and night vision effect
Package
Features
*1280x960 resolution USB Camera
*Support Android and Linux system
*Suport YUY and MJPEG format
*high pixel technology for sharp image and accurate color reproduction
*low light performance – ideal for any lighting condition
*Super small outline and thin profile for embedded applications
*High frame rate– deliver 60 fps in VGA
*High quality lens, true and undistorted color image
*Low power consumption – ideal for portable equipment
* WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above
Key Specifications
| Module No. | ELP-USB130W01MT |
| Module Size | 38mm × 38mm 32mm × 32mm |
| Temperature (Operation) | -20°C to 70°C |
| Temperature (Stable Image) | 0°C to 60°C |
| Camera Board Assembly technique | SMT (ROSH) |
| Focus | Manual |
| Object distance | 5CM-100M |
| Resolution | 600LW/PH (Center) |
| interface | USB 2.0 High Speed |
| protocol | USB Video Class UVC |
| Power | USB bus power |
| Operating system request | Win XP\Win7\Win8\Android\Linux\Mac OS |
| Certifications | FCC and CE |
| Sensor Type | AR0130 (1/3” ) |
| Active Array Size | 1280 *960 |
| Minimal illumination | 0.01Lux |
| Pixel Size | 3.75um |
| Maximum Image Transfer Rate | 1280 (H) x 960 (V) pixels MJPEG 15fps 1280 (H) x 720 (V) pixels MJPEG 30fps 800 (H) x 600 (V) pixels MJPEG 30fps 640 (H) x 480 (V) pixels MJPEG 30fps 320 (H) x 240 (V) pixels MJPEG 30fps |
| S/N Ratio | 44dB |
| Dynamic Range | 83.5dB |
| Shutter | Rolling shutter/ frame exposure |
| Lens Type | |
| Lens Construction | 5G+IR |
| Focal Length | 3.6mm (2.1mm/2.8mm/6mm/8mm/12mm Optional) |
| F/No | 1.8 |
| BFL(Optical) | 6.5mm |
| FOV | 105° |
| IR Filter | 650±10nm |
| DSP Type | RV1080P |
| AGC/AEC/AWB/ABF | Auto |
| Output Formats | YUYV/MJPEG |
| IR CUT | SUPPORT |
| Adjustable parameters | Brightness Contrast Hue Saturation Sharpness Gamma White BalanceExposure Focus |
| Package | LQFN-40pin |
| USB Cable | 1M(2M/3M/5M Optional) |
Applications
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental
monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro
HD surveillance, endoscope, Medical auxiliary equipment, etc.
