CCTV Security Cameras Product Store Choice Collections provide cctv system,security surveillance, spy camera Big Stock Gift 6mm lens 5.0Megapixel Max.Resolution 2592x1944 HD 1/2.5 Aptina MI5100 CMOS Digital Camera Microscope Endoscope usb camera module. Get Discount Now! Only US $47.36/piece at this time. Hurry buy Now before back to normal price! Normal price US $51.48 or you can Check price now. Dont waste your time. Buy Now only in ELP Ailipu camera module Store Trusted Seller Store!
This Flash Deal Big Stock Gift 6mm lens 5.0Megapixel Max.Resolution 2592x1944 HD 1/2.5 Aptina MI5100 CMOS Digital Camera Microscope Endoscope usb camera module goods is very special, made with quality materials definitely sturdy for usage in a long duration. Before you utilize it, make sure you check out the overview meticulously. Do not make a mistake when utilizing it. When using it, quality items ensure your life much more comfy. You could straight contact the sales to get even more information concerning this high quality product if you are interested to get it.
The Flash Deal Big Stock Gift 6mm lens 5.0Megapixel Max.Resolution 2592x1944 HD 1/2.5 Aptina MI5100 CMOS Digital Camera Microscope Endoscope usb camera module item is nice and easy to use. The purchase price is affordable and provides the best quality. Produce sure you buy through this store. Have the excellent discount and excellent price because of this Discount Big Stock Gift 6mm lens 5.0Megapixel Max.Resolution 2592x1944 HD 1/2.5 Aptina MI5100 CMOS Digital Camera Microscope Endoscope usb camera module item.6mm lens 5.0Megapixel Max.Resolution 2592x1944 HD 1/2.5 Aptina MI5100 CMOS Digital Camera Microscope Endoscope usb camera module
Product detail
Effect
Package
We have different case for this camera module, if you need, please cntact us
such as
or
Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution

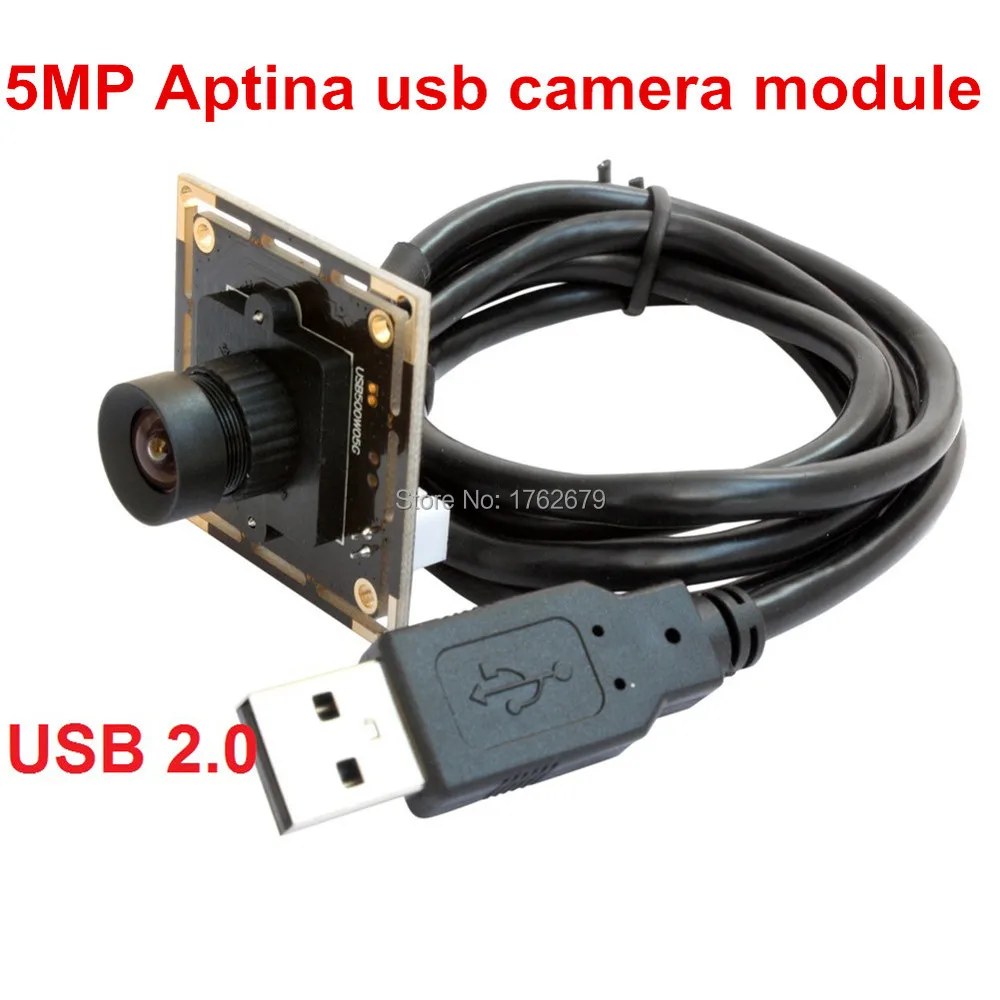

The HD 5Megapixel USB CMOS board camera module,which meet those program need to see clear all kinds of distance. It is ideal for many applications like security systems, portablevideo system, video phones, industrial machine monitoring and toys.
Feature
*Super high resolution 5mp USB camera module
*Can used for micro endoscope camera
*5Megapixel CMOS sensor for high quality image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance-ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate-30 fps in 1280X720 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Specification
Model ELP-USB500W05G
SensorAptina MI5100
Lens Size1/2.5 inch(4:3)
Pixel Size2.2um
image area 5.7mm x 4.28mm
Max. Resolution2592(H) X 1944(V)
Compression format MJPEG / YUV2(YUYV)
Resolution & frame2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG
1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG
1920x1080 @ 30fps MJPEG / 1280x720 800x600
S/N Ratio38dB
Dynamic Range70dB
Sensitivity 1.4V/lux-sec@550nm
Mini illumination0.1lux
Shutter Type Electronic rolling shutter / Frame exposure
Connecting Port type USB2.0 High Speed
Free Drive ProtocolUSB Video Class(UVC)
OTG protocol USB2.0 OTG
AECSupport
AEB Support
AGC Support
Button camera Support
Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
Lens ParameterSize: 1/2.5, Iris: F2.4, Focus: 3mm, FOV: 100 Degree
LED board control interfaceSupport 2P-1.25mm socket
LED board power connector Support 2P-2.0mm socket
Power supply USB BUS POWER 4P-2.0mm socket
Operating Voltage DC5V
Working current150mA~200mA
Working temperature -10~700C
Storage temperature -20~850C
Board size 38X38mm(compatible 32X32mm)
Operating system request WinXP/Vista/Win7/Win8
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above with UVC
Applications
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental
monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
