CCTV Security Cameras Product Store Choice Collections provide camera system,cctv camera Excellent Gift CCTV USB camera Manufacturer 5MP 38x38mm mini board windows software usb webcam camera with 2.8-12mm megapixel varifocal lens. Get Discount Now! Only US $47.69/piece at this time. Hurry buy Now before back to normal price! Normal price US $56.10 or you can Check price now. Dont waste your time. Buy Now only in ELP Ailipu camera module Store Trusted Seller Store!
Economical price and also totally free delivery. Allow's buy prior to costs rise.

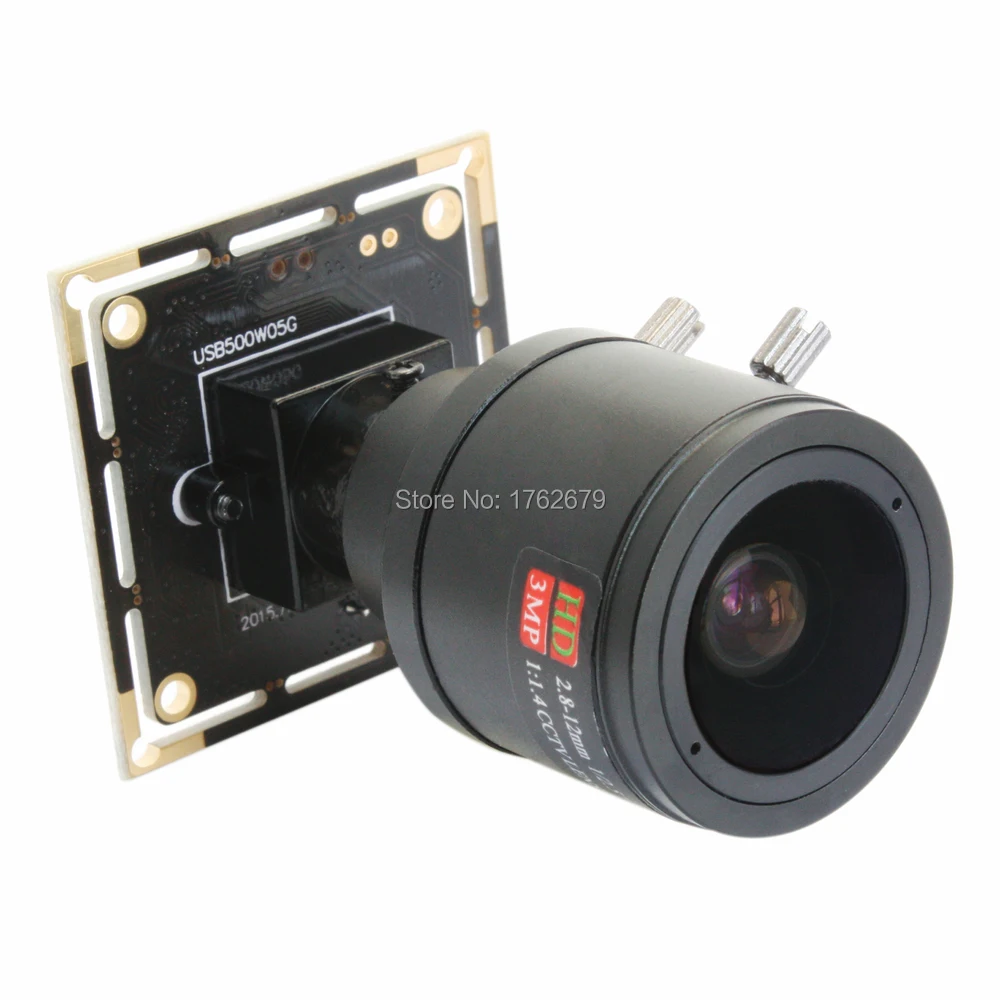

CCTV USB camera Manufacturer 5MP 38x38mm mini board windows software usb webcam camera with 2.8-12mm megapixel varifocal lens
The HD 5Megapixel USB CMOS board camera module(model: ELP-USB500W02M serials), adopting 800W Auto Focus HD lens,which meet those program need to see clear all kinds of distance. It is ideal for many applications like security systems, portablevideo system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by OmniVision OV5640,one of the world leaders in this field of electronics.
Feature
*Super high resolution 5mp USB camera module
*Can used for micro endoscope camera
*5Megapixel CMOS sensor for high quality image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate–30 fps in 1280X720 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Applications
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site
monitoring, environmental monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,
automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment,
on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, I
nteractive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system,
High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box
inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Specification
| Optional models | ELP-USB500W02M usb camera module |
| Sensor | 1/4" CMOS OV5640 |
| Lens size | 500W, 5.0megapixel, Max. 2592(H)x1944(V)pixels |
| Lens | 800W HD Lens |
| Max. Resolution | 2592X1944 |
| Picture format | MJPEG |
| USB Protocal | USB2.0 HS/FS, USB1.1 FS |
| Support free driver | USB Video Class(UVC)1.1 |
| Auto exposure AEC | Support |
| Auto white blance AEB | Support |
| Frame rate | 2592 (H) x 1944 (V) pixels MJPEG 15fps YUY2 3fps |
| Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |
| Night vision | optional, can choose IR board |
| view angle | 30-60 degree optional |
| voltage | DC 5V |
| current | 150mA |
| work temperature | DEGREES(-20~70) |
| Size | 32x32mm/38*38 |
| Support OS | WinXP/Vista/WIN7/WIN8 Linux with UVC |
Product detail
Super small outline and thin profile for embedded applications
Effect
Package
ELP usb camera module
