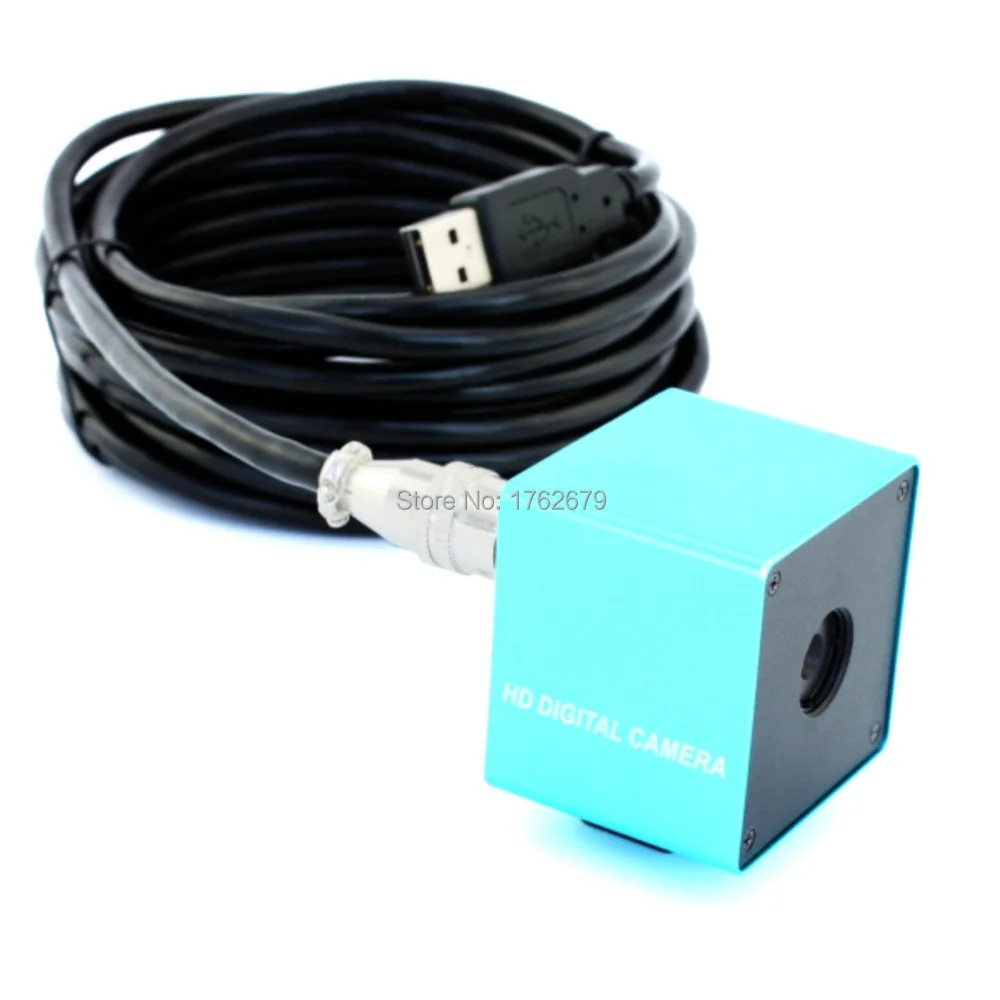

Blue color 42x42x42mm box MJPEG and YUY2 mini cctv box endoscope HD 5MP usb camera Auto focus
Optional Color
Inside the case
Effect
Package
The HD 5Megapixel USB CMOS board camera module(model: ELP-USB500W02M serials), adopting 800W Auto Focus HD lens,
which meet those program need to see clear all kinds of distance.
It is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys.
It use high quality image sensors made by OmniVision OV5640, one of the world leaders in this field of electronics.
The 5Megapixel Auto Focus USB camera are ideal for equipment manufacturers, experimenters and hobbyists.
*Super high resolution 5mp USB autofocus camera module
*Can used for micro endoscope camera
*800W Auto Focus HD Lens
*5Megapixel CMOS sensor for high quality image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate–30 fps in 1280X720 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Optional models | Silver ELP-USB500W02M-AFC30S Blue: ELP-USB500W02M-AFC30B Black: ELP-USB500W02M-AFC30K |
Sensor | 1/4" CMOS OV5640 |
Lens size | 500W, 5.0megapixel, Max. 2592(H)x1944(V)pixels |
Lens | 800W Auto Focus HD Lens |
Max. Resolution | 2592X1944 |
Picture format | MJPEG |
USB Protocal | USB2.0 HS/FS, USB1.1 FS |
Support free driver | USB Video Class(UVC)1.1 |
Auto exposure AEC | Support |
Auto white blance AEB | Support |
Frame rate | 2592 (H) x 1944 (V) pixels MJPEG 15fps YUY2 3fps |
Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |
Night vision | optional, can choose IR board |
view angle | 30/45/65 degree optional |
voltage | DC 5V |
current | 150mA |
work temperature | DEGREES(-20~70) |
Size | 40*40*35mm |
Support OS | WinXP/Vista/WIN7/WIN8 |
Applications
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site
monitoring, environmental monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,
automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment,
on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system,
Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system,
High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope,
box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
