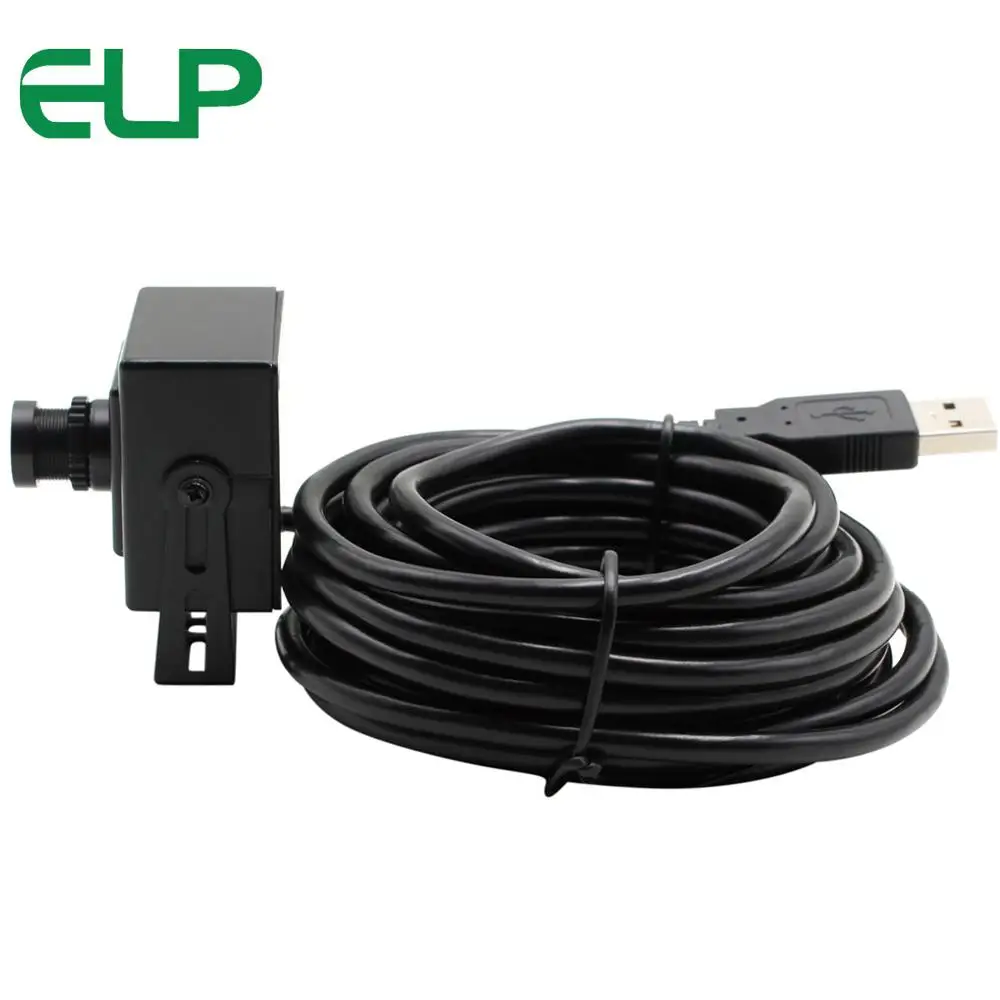

1/3" Aptina AR0130 sensor 1.3 Megapixel 960p Low Illumination Metal Industrial Camera Usb Camera for House/car/machine Video Use
The HD 960P USB CMOS board camera module(model: ELP-USB130W01M serials) is ideal for
many applications like security systems, portable video system, video phones, industrial machine
monitoring and toys. It use high quality image sensors made by Micron.
Feature
*960P resolution 1280x960P
*USB interface Camera Module for Monochrome Stereo
*Android&Linux system support
*YUY and MJPEG compression format optional
* Micron AR0130 9600P sensor for high quality image and low power consumption
*High speed USB 2.0 interface for high resolution PC camera interface
*High pixel technology for sharp image and accurate color reproduction
*low light performance – ideal for any lighting condition
*Super small outline and thin profile for embedded applications
*High quality lens, true and undistorted color image
*Low power consumption – ideal for portable equipment
*UVC for use in Android, Linux, Windows XP, WIN CE, MAC, SP2 or above
*Camera with UVC
Specification
LENS: 2.1mm/2.8mm/3.6mm /6mm/8mm/12mm Optional)
(can also choose other suitable lens as your required view angle)
CABLE: 2m USB cable (1M/3M/5M optional)
| Model | ELP-USB130W01MT-B/W |
| Sensor | Aptina AR0130 |
| Lens Size | 1/3 inch |
| Pixel Size | 3.75um |
| Max. Resolution | 1280(H)X960(V) |
| Compression format | MJPEG / YUV2 (YUYV) |
| Resolution & frame | 1280X960 MJPEG@ 15fps YUY2@9fps/ 1280X720MJPEG@ 30fps YUY2@15fps 800X600 MJPEG@30fps YUY2@20fps/ 640X480 MJPEG@ 30fps YUY2@ 30fps 320X240 MJPEG@30fps YUY2@20fps/ 160X120 MJPEG@ 30fps YUY2@ 30fps |
| S/N Ratio | 44dB |
| Dynamic Range | 83.5dB |
| Sensitivity | 5.5V/lux-sec@550nm |
| Mini illumination | 0. 01lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port type | USB2.0 High Speed |
| OTG protocol | USB2.0 OTG |
| Free Drive Protocol | USB Video Class(UVC) |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
| Lens Parameter | Standard 3.6mm, optional 2.1/2.5/2.8/6mm/ FOV(D)170 Degree |
| IR CUT Connector | Support 2P-1.25mm socket |
| LED board test connector | Support 2P-1.25mm socket |
| LED board power connector | Support 2P-2.0mm socket |
| Power supply | USB BUS POWER 4P-2.0mm socket |
| Power supply | DC5V |
| Operating Voltage | 100mA~160mA |
| Working current | 0~70 centigrade |
| Working temperature | -20~75 centigrade |
| Board size /Weight | 38X38mm(Compatible 32X32mm)/ about 30g |
| Cable | Standard 1M / optional 2M,3M,5M |
| Operating system request | WinXP/Vista/Win7/Win8 Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
Inside the case
Package
Black and White
Application
Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution
