CCTV Security Cameras Product Store Choice Collections provide camera system,security surveillance Excellent Deals New Cctv DVR4 Channel Standalone Full D1 H.264 CCTV Security Surveillance DVR Record System. Get Discount Now! Only US $34.20/piece at this time. Hurry buy Now before back to normal price! Normal price US $36.00 or you can Check price now. Dont waste your time. Buy Now only in Trusted Seller Store!
Standalone DVR is good optional for newly installers. Easy connect and beautiful outline are best point of digital video recorder. Our network video recorder use H.264 high quality compression format adopting newly designed outline, widely well-known and loved by our newly and old customers. Our standalone DVR range from economical and also high functional series and also comes with 4ch, 8ch and 16ch for different project choice. Our Standalone DVR has already widely used in bank, casino, house, villa, factory etc.

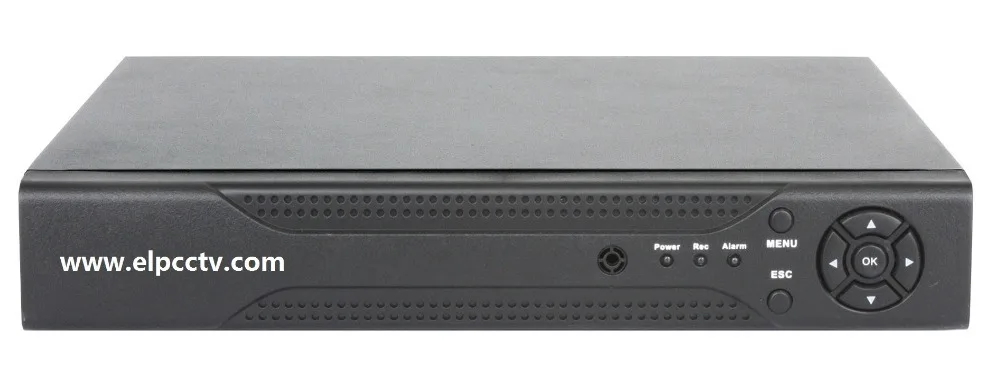

ELP-DVR1804
Specification
main processor | Industrial embedded micro-controller hua wei Hi platform | |
operating system | embedded linux | |
system resources | Simultaneous multi-channel real-time recording, playback, network operation USB backup | |
user interface | support 16-bit true color graphical menu interface and mouse operation | |
preview screen | 1/4 | |
Video | vdieo standards | PAL 625line 50f/s NTSC 525line 60f/s |
vdieo compression | H.264(High Profile) | |
display quality | Monitor D1 VGA HDMI 1024*768 | |
play quality | D1/HD1/CIF/QCIF | |
encode capacity | 4ch D1 real-time | |
audio | decode capacity | 2ch D1 real-time |
motion detect | Zones: 192 16*12 detection zones, sensitivity: multi-level sensitivity (Only local channels) | |
audio compression | G.711A | |
bidrectional talk | supported | |
Record&playback Storage&backup interface | record mode | manual>alarm>motion detection>timing |
local playback | Multi-channel Simultaneously playback 1-4ch | |
search mode space occupation | Time/calendar/event/channel search | |
Video: CIF:4~5G/ day*channel D1 8~10G/ day*channel audio: 691.2M/ day*channel | ||
record storage | HDD network | |
backup mode | Network backup USB,U disk | |
video input | 4ch BNC | |
video output | 1ch BNC，1ch VGA，1ch HDMI | |
audio input | 4ch RCA | |
audio output | 1ch RCA | |
alarm input | no | |
alarm output | no | |
others | net interface | One RJ45 10M/100M |
PTZ control | One RS485 port, support 18 PTZ protocols | |
USB | 2 USB2.0 ports | |
HDD | 1 SATA ports 4T at most per one | |
Power supply | 12V/2A | |
system | dimension | 255mm Length* 225mm width* 45mm height |
Feature:
*H.264 High Profile compression algorithm 30% decrease of stream due to advanced space-time filtering technology.
*Support 4ch D1, 2ch D1 +6ch CIF 16ch CIF full real-time encoding multi-channel full real-time playback and
decoding simultaneously.
*Main stream and Sub-stream encoding. Main stream for local storage, ensure image quality;Sub-stream for real-time
network transmission, easy to solve bandwidth bottleneck problem.
*Support various mobile monitoring iPhone,Windows Mobile,BlackBerry,Symbian,Android
*Support TV VGA and HDMI output simultaneously VGA HDMI support 1024*768 HD output leading the trend in HD
resolution output technology
*Similar to Windows operating style, easy to get started with powerful mouse right-click function.
*Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL,IP searches etc.) and perfect support
(WEB, Client, SDK), easy to achieve interoperability.
*Support IE Chrome Firefox Safari browsers
*3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided.
*Support 2 USB2.0 ports to realise USB mouse backup burn upgrade and other operations steadily.
*Support more than 20 languages English Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese,
Russian, Spanish, Thai, Chinese, Traditional Chinese, Turkish, etc. no nation boundaries.
*Display flexibly, free to replace boot interface.
Support TV VGA and HDMI output
Accessories
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Excellent Deals New Cctv DVR4 Channel Standalone Full D1 H.264 CCTV Security Surveillance DVR Record System
