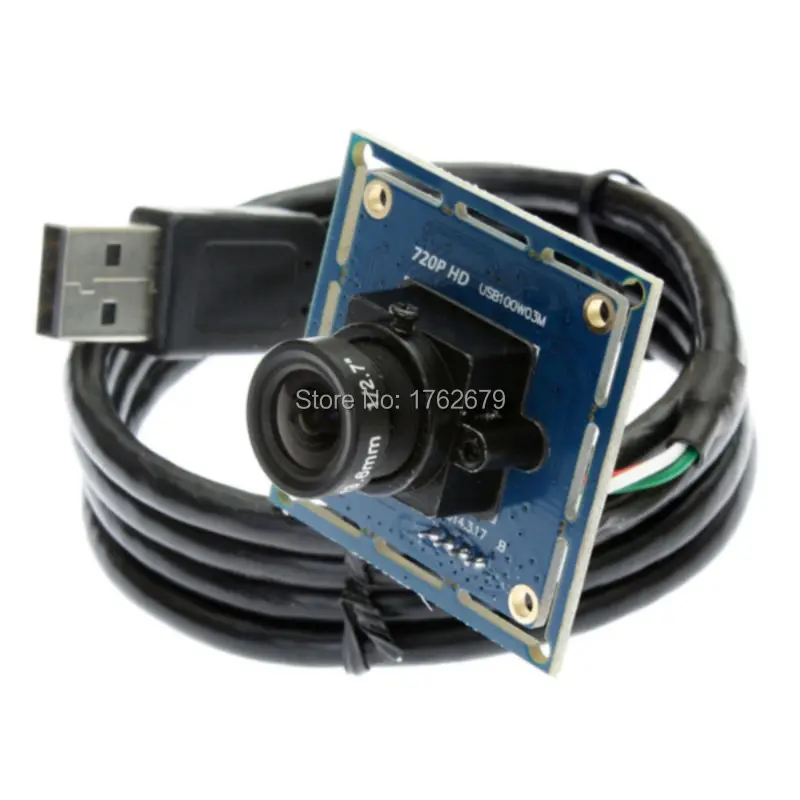

720P camera module 1 Megapixel 1280x 720 8mm lens MJPEG UVC cmos OV9712 usb camera board
General Description
The HD 720P USB CMOS board camera module(model: ELP-USB100W03M serials) is ideal for many applications like security systems, portable video system, video phones, industrial
machine monitoring and toys. It use high quality image sensors made by OmniVision,
one of the world leaders in this field of electronics.
The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.
Applications
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site
monitoring, environmental monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Features
*CMOS 720P sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 30 fps in 1280X720 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
* Monochrome , black and white, not color
Parameters
Image Sensor: OmniVision 1/4” Color CMOS image sensor OV9712
LENS: 3.6mm (2.1mm/2.8mm/6mm/8mm/12mm Optional)
Auto foucs and Manual varifocal optional
(can also choose other suitable lens as your required view angle)
CABLE: 1m USB cable (2M/3M/5M optional)
(can also make the other special length cable according to your requirement)
Effective Pixels:
1280 (H) x 720 (V) pixels
960 (H) x 720 (V) pixels
800 (H) x 600 (V) pixels
640 (H) x 480 (V) pixels
352(H) x 288 (V) pixels
320 (H) x 240 (V) pixels
176(H) x 144 (V) pixels
160 (H) x 120 (V) pixels
(Other special size resolution is customized)
Performance:
1280 (H) x 720 (V) pixels MJPEG 30fps YUY2 10fps
960 (H) x 720 (V) pixelsMJPEG 30fps YUY2 15fps
800 (H) x 600 (V) pixelsMJPEG 30fps YUY2 20fps
640 (H) x 480 (V) pixelsMJPEG 30fps YUY2 30fps
352(H) x 288 (V) pixelsMJPEG 30fps YUY2 30fps
320 (H) x 240 (V) pixelsMJPEG 30fps YUY2 30fps
176(H) x 144 (V) pixelsMJPEG 30fps YUY2 30fps
160 (H) x 120 (V) pixelsMJPEG 30fps YUY2 30fps
Signal Output: Serial data for USB standard compliant 2.0
Performance: MJPEG 30 fps @ 1280 (H) x 720 (V)
Operating System: Linux 2.6.26 or above, Windows XP SP2or above, Android, Windows CE, Mac OS
UVC: Windows XP SP2 or above
Operating temperature: -30°C-70°C
Power Consumption: 5V 100mA
Product detail
Effect
Packsgae
Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution
Dimensions (mm): 32mm*32mm/38mm*38mm
(can make other dimension as customers’ requirement)
