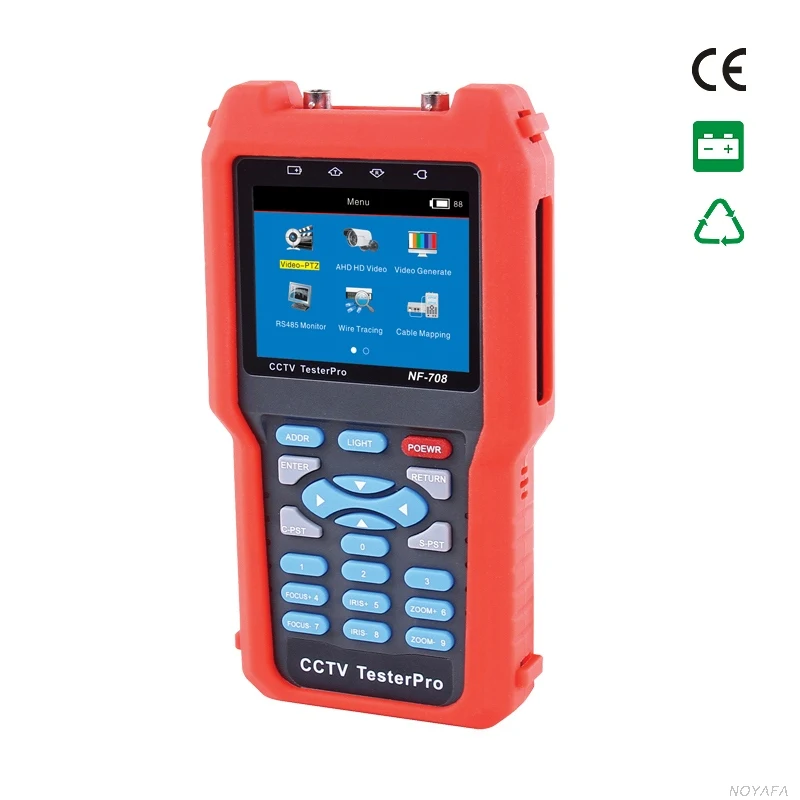

CCTV monitor testers CVBS signal cable tester tracker with multi-system color bar video generator NOYAFA NF-708
Features:
1. AHD Camera & IP camera testing.
2. SD video formats NTSC/PAL Automatically adapt and display formats.
3. PTZ control . Pan/tilts the P/T unit, zooms in/out the lens,adjust the focus, aperture and sets and call the preset position.
4. Video signal analysis, by analyzing the sync level measure video signal amplitude attenuation. 5. Input Audio signal,test pickups and microphone audio signal.
6. The PAL/NTSC multi-system color bar video generator
7. 485 Control Interface .Support Baud Rates with 2400/ 4800/ 9600 .
8. Multi-Protocol . Support more than 20 kinds PTZ protocol, such as PELCD-D, PELCD-P,SAMSUNG,MINKING etc.
9. Date analyst. Captures and analyzes RS 485 controlling date to help the technician to find out the problem.
Specification:
| Video Test | Signal Mode | NTSC/PAL automatically suitable |
| Display | 3.5 inch TFT LCD color screen,960x240 resolution | |
| Analog Video Input | Analog Video Input | |
| HD Video Input | AHD & IP Video Input | |
| Video Output | Video Signal Output | |
| PTZ Control and Test | Communication | RS485 |
| protocol | Include PELCD-D, PELCD-P,SAMSUNG,MINKING 20 kinds of protocols or customized | |
| Baud Rate | 2400 /4800/ 9600 | |
| 12 V power output | Output voltage | DC12 V |
| Output current | Max:1000mA | |
| Other Function | Video Analyzing | Through the analysis of synchronous level signal attenuation amplitude |
| Video Signal | Independently output 1channel analog video signal | |
| Cable test | Check cable open,short, cross connection | |
| RS485 protocol test | Test the RS485 data sent from controlling device | |
| Signal Generating | Output 1channel video signal for testing monitor | |
| Others | The power converter | DC5V/1A |
| Battery | 3000mAh rechargeable Large capacity lithium battery inside | |
| Work Temperature | -30°c -70°c | |
| Work Humidity | 30%-90% | |
| The size of Indictor and remote | Indictor:206*112*49mm | |
| Remote:107*30*24mm | ||
| The size of receiver | 218*46*29mm |
Benefits:
1. Chinese and English can be selected.
2. 3.5 TFT-LCD,960(H) x 240(V) resolution.
3. TFT-LCD Screen brightness, contrast, color saturation is adjustable
4. Low battery alarm function: when main voltage <3.4V or Receiver voltage <6v.
5. Function of storage and memory .
6. Large-capacity high-performance lithium battery-powered, rechargeable.
Accessories:
| Emitter | 1 pcs |
| silicon rubber case | 1 pcs |
| DC5v charging & Wiring | 1 pcs |
| 3.7v lithium battery | 1 pcs |
| 9v Carbon battery | 1 pcs |
| BNC cable | 1 pcs |
| Audio cable | 1 pcs |
| 485 control cable | 1 pcs |
| Hang rope | 1 pcs |
| Camera power supply cable | 1 pcs |
| Certificate of approval | 1 pcs |
| User manual | 1 pcs |
| Color box | 1 pcs |
| Toolkit 1pcs |
