CCTV Security Cameras Product Store Choice Collections provide camera system,hidden camera,security surveillance Fast Promotion 5PCS 4CH 1080P HD TVI CVI AHD Passive Video Balun for CCTV Security Camera System. Price at this time US $88.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in TISAN Authorised Store Trusted Seller Store!
Product Overview

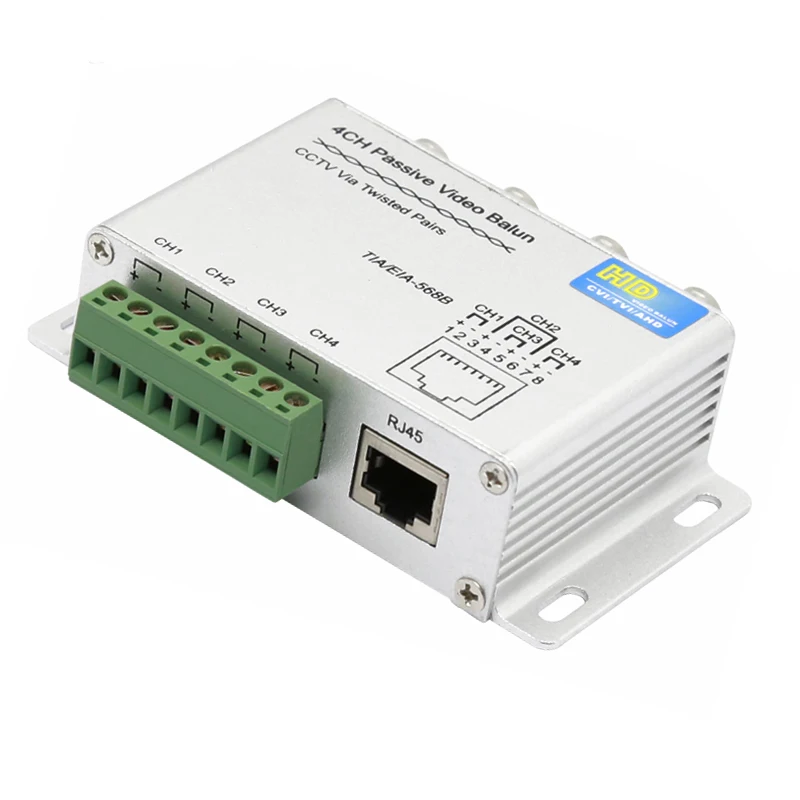

HD Video balun is develop for HD analog cameras of HD-TVI by HKvision, HD-CVI by Dahua and HD-AMD. By having the bandwidth of the classic CCTV video balun increased from 8Mhz to 60Mhz, it enable you to build your new HD analogue CCTV surveillance system over UTP. More conveniently, this product is backward compliant and will also work well with CVBS. With this advantage you can use it to build your analogue CCTV surveillance system without much consideration about what kind of camera are you using.
HD Video balun is to convert the video signal into the balanced signal applicable to be transmitted on common Cat-5 unshielded twisted pair wire with perfect transmission , which can be applied in the occasions such as video monitoring and video meeting and can transmit four channels of video image simultaneously on an 8-core Cat-5 twisted pair wire.
It can simplify the wiring project and save wire use quantity.
Feature
1, Compatible with all HD-CVI,HD-TVI,HD-AHD
2, Up to 450m for 720P CVI Cameras
3, Up to 250m for 1080P CVI Cameras
4, Up to 220m for 720P/1080P TVI Cameras
5, Up to 320m for 720P AHD Cameras
6, Up to 250m for 1080P AHD Cameras
7, NTSC,PAL,and SECAM video formats
8, No power required
9, 60dB cross talk and noise immunity
10, Excellent anti-interference capability
11,Built-in TVS and can protect a surge voltage up to 4000V
Specification Type of the required wire·Unshielded Cat-5 or above twisted pair wire(please use standard Cat-5 or above twisted pair wire. The wire quality will directly affect the transmitted image effect and transmission distance.)
·Characteristic impedance: 100Ω±20Ω
·DC loop resistance: 18Ω/100m
·Differential capacitance:62pf (Maximum)
Package
· 2 x 4CH Passive Video Balun
Installation
Product Show
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Fast Promotion 5PCS 4CH 1080P HD TVI CVI AHD Passive Video Balun for CCTV Security Camera System
