CCTV Security Cameras Product Store Choice Collections provide spy camera,hidden camera,cctv system Cool New 1.3 Megapixel 1280*960P HD digital cmos sensor AR0130 USB camera module for atm machines. Get Discount Now! Only US $36.05/piece at this time. Hurry buy Now before back to normal price! Normal price US $37.95 or you can Check price now. Dont waste your time. Buy Now only in ELP Webcam Store Trusted Seller Store!

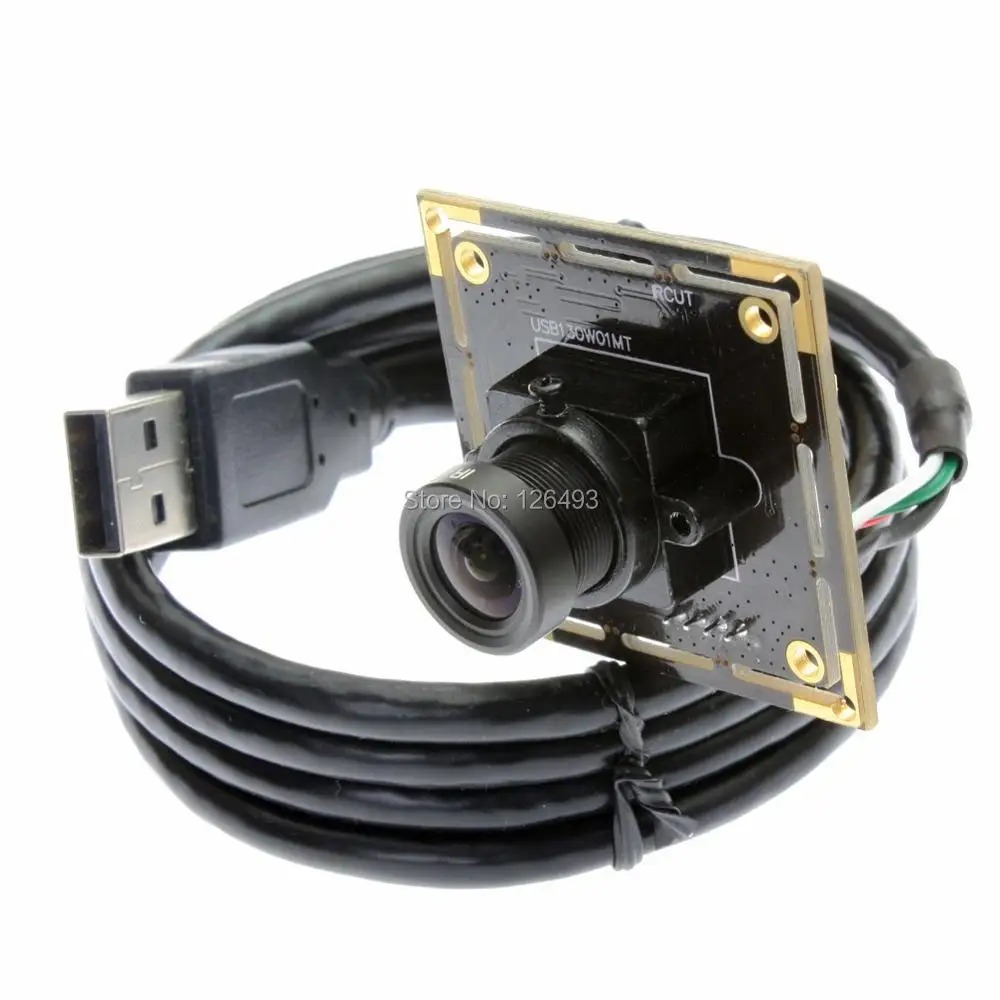

2.8mm lens 1.3 Megapixel HD digital cmos sensor low lux USB camera module ofr atm machines ELP-USB130W01MT-L28
Package include:
1) 1PC 1.3mp usb camera module with 2.8mm lens
2) 1PC 1m usb cable( 2m/3m/5m optional)
Product display
Key Specifications
Module No. | ELP-USB130W01MT-L28 |
Module Size | 38mm × 38mm 32mm × 32mm |
Temperature (Operation) | -20°C to 70°C |
Temperature (Stable Image) | 0°C to 60°C |
Camera Board Assembly technique | SMT (ROSH) |
Focus | Manual |
Object distance | 5CM-100M |
Resolution | 600LW/PH (Center) |
interface | USB 2.0 High Speed |
protocol | USB Video Class(UVC) |
Power | USB bus power |
Operating system request | Win XP\Win7\Win8\Android\Linux\Mac OS |
Certifications | FCC and CE |
Sensor Type | AR0130 (1/3” ) |
Active Array Size | 1280 *960 |
Minimal illumination | 0.01Lux |
Pixel Size | 3.75um |
Maximum Image Transfer Rate | 1280 (H) x 960 (V) pixels MJPEG 15fps 1280 (H) x 720 (V) pixels MJPEG 30fps 800 (H) x 600 (V) pixels MJPEG 30fps 640 (H) x 480 (V) pixels MJPEG 30fps 320 (H) x 240 (V) pixels MJPEG 30fps |
S/N Ratio | 44dB |
Dynamic Range | 83.5dB |
Shutter | Rolling shutter/ frame exposure |
Lens Type | |
Lens Construction | 5G+IR |
Focal Length | 2.8mm |
F/No | 1.8 |
BFL(Optical) | 6.5mm |
FOV | 115degree |
IR Filter | 650±10nm |
DSP Type | RV1080P |
AGC/AEC/AWB/ABF | Auto |
Output Formats | YUYV/MJPEG |
IR CUT | SUPPORT |
Adjustable parameters | Brightness Contrast Hue Saturation Sharpness Gamma White Balance Exposure Focus |
Package | LQFN-40pin |
USB Cable | 1M(2M/3M/5M Optional) |
Applications Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote sitemonitoring, environmental monitoring, etc. used for all kinds of machine as below: machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
CMOS sensor for high quality image and low power consumption
Super small outline and thin profile for embedded applications
