7 inch capacitive touch screen, 5MP IP Camera test+ Analog+HD Coaxial Tester 12V2A/ 5V 2A power bank / PoE power output/ HDMI out/ Built-in WIFI
Language support: English, Chinese, Korean, Russian, Italian , Polish ,Spanish, French or Japanese;
Poroduct Overview

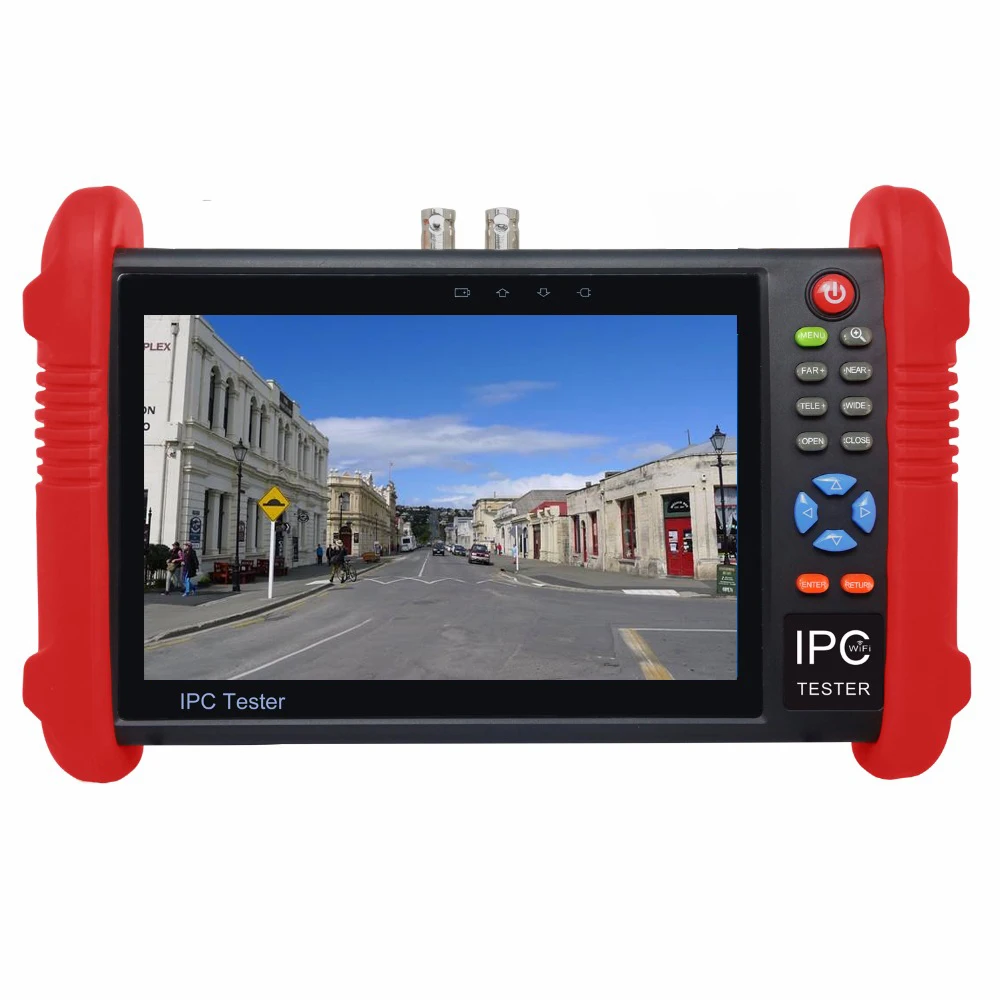

PS 7 inch TFT-LCD test monitor with capacitive touch screen / ONVIF IP camera test, 2592*1520 /IP CVBS 1080P camera / WIFI /12V 2APower output / 5V 2A power bank / DC48V PoE power supply /HDMI output/ IP camera viewer /PTZ control /Ping test/ UTP cable test /IP discovery, Auto -search IP camera address / Rapid ONVIF, Auto-login and display the camera image, activate Hikvision camera quickly.
7 inch tester monitor is designed for maintenance and installation of IP CVBS cameras as well as other security equipment. Its 1280 x 800 resolution enables it to display images from network HD cameras and analog cameras in top quality.it supports ONVIF PTZ, analog PTZ control and Coaxial control. A combination of touch screen and push buttons make the IP camera tester very user friendly. In addition the tester is also a great tool for Ethernet networks and cabling systems. It can test PoE voltage and is capable of IP address searching.
Other functions built in WIFI,UTP cable tester ,12V 2A power output for camera ,DC48V PoE power supply,5V 2A power output, HDMI output, Audio input and output, Network bandwidth testing, OSD menu rotates in 180 angle,OSD menu can be rotated in 180 angle by manual setting. The meters portability, user-friendly design and multi-function capability make it an essential tool for installers and technicians, greatly improving work efficiency and simplifying installations and system maintenance.
Application
-CCTV system installation and maintenance
-Network cabling project installation and maintenance
- Dome camera IP camera testing
-Video transmission channel testing
-PTZ control
Features
1. IPS 7 inch TFT-LCD test monitor with touch screen ,1280*800 resolution
2. LCD screen with brightness/contrast/color saturation adjustment
3. Built in Wi-Fi can receive images from wireless cameras ,
4. ONVIF and customized IP cameras(with more than 80 brand camera ,such as DAHUA,Haikang,KEDA,Samsung,HIKVISION and TIANDY camera)
5. ONVIF IP camera test, support 2592*1520
6. 8GB SD card including
7. Test H.264/MPEG4/MJPEG IP cameras
8. Video image magnification enables detailed viewing
9. HDMI signal output, supports 1080p
10. Analog camera image display, auto adapts and display NTSC or PAL video formats
11. Supports RS232/RS485, Rate 600 - 115,200bps adjustable
14. IP discovery, it can auto-scan the whole network segment IP, and auto-modify testers IP address
15. Rapid ONVIF, search camera quickly, auto log in and display image from the camera, activate Hikvision camera.
16. Hik test tool app is design for activating and debugging Hikvision camera can auto-identify inactivated hikvision camera, also can display image from the Hikvision camera.
17. DH test tool app is design for Dahua Camera image test, support modify IP, user name and password etc parameters.
18. Snapshot and save images as JPG files in an SD card, video record and playback
19. Support mobile client of the IP camera
20. Display real resolution of the IP camera images
21. PTZ controller ,Photograph, Video record, Record playback
22. Color bar generator, analog video color bar and testing image output
23. POE voltage test, PING test ,IP address scan, port flashing etc
24. DC 48V PoE power output, supplies temporary power for PoE cameras
25. 12V /2A power output
26. 5V 2A power output, as the power bank
27. Audio input and output test
28. LED lamp, calculators, music players and other application tools
29. 7.4V Lithium polymer battery ,5800mAh,after charging 7~8 hours ,working time last 10 hours
Notice:
Custom duty
For the weight of the item is more than 2.8KG, It would be shipped by DHL or EMS, When you choose DHL shipping way, DHL might charge custom clearance fees, please confirm whether you have the clearance ablity.
Due to customs duties ,buyers refuse to get the goods, the buyers should pay all the resulting freight.
Import duties ,taxs and charges are not included in the price or shipping charges, These charges are the buyers responsibility, please check the custom clearance fees of your country before you place an order.
Specifications
| Display | 7 inch IPS TFT-LCD test monitor with capacitive touch screen ,1280*800 resolution |
| Network port | 10/100M auto adapt,RJ45 |
| IP discovery | auto-scan the whole network segment camera IP |
| Rapid ONVIF | search camera quickly, auto log in and display image from the camera, activate Hikvision camera |
| Hik test tool | activate Hikvision camera,Camera image test, support modify IP, user name and password etc parameters . |
| DH test tool | Dahua Camera image test, support modify IP, user name and password etc parameters |
| WIFI | Built in WIFI,speeds150M,display wireless camera image |
| IP camera type | Customized camera protocols welcome. ACTi,Dahua IPC-HFW2100P,Hikvision,DS-2CD864-E13,Samsung SNZ-5200,Tiandy TD-NC9200S2,Kodak IPC120L,Honeywell HICC-2300T, IPC,FSJ BY-1080Q,WEISKY IPC camera etc. |
| Video input/output | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) |
| Video Level Test | Video signals measured in IRE or mV |
| Zoom Image | Support Analog camera and IP camera image zoom /move |
| Snapshot ,video record | Image Screen snapshot, record ,save ,view and record and play back |
| HDMI output | 1 channel HDMI output,support 1920*1080P |
| 12V/2Apower output | Output DC12V/2A power for camera |
| 5V power output | 5V 2A power output,as a Power bank |
| PoE power output | 48V PoE power output,Max power 24W |
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
| PTZ controller | RS485 control, Baud 600-115200bps, |
| Color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color ) |
| UTP Cable tester | Test UTP cable connection status and display on the screen. Read the number on the screen |
| Data monitor | Captures and analyzes the command data from controlling device,also can send hexadecimal |
| Network test | IP address scan, link test, Ping test, Quickly search the connection IP camera and other devices IP address |
| PoE test | Measurement POE switch or PSE power supply voltage and cable connection status |
| POWER | |
| External power supply | DC 12V 2A |
| Battery | Built-in 7.4V Lithium polymer battery ,5800mAh |
| Rechargeable | After charging 7~8 hours, normal working time 10 hours |
| Parameter | |
| Operation setting | Capacitive touch screen, OSD menu,Chinese/English |
| Auto off | 1-30 (mins) |
| General | |
| Working Temperature | ,-10°C--50°C |
| Working Humidity | 30%-90% |
| Dimension/Weight | 231mm x 172mm x 52mm / 1.26Kg |
