CCTV Security Cameras Product Store Choice Collections provide cctv camera,security surveillance, spy camera Big Stock Promo High quality 960P HD cmos AR0130 MJPEG 30pfs Infrared night vision infrared usb camera for laptop. Get Discount Now! Only US $41.80/piece at this time. Hurry buy Now before back to normal price! Normal price US $44.00 or you can Check price now. Dont waste your time. Buy Now only in ELP Webcam Store Trusted Seller Store!

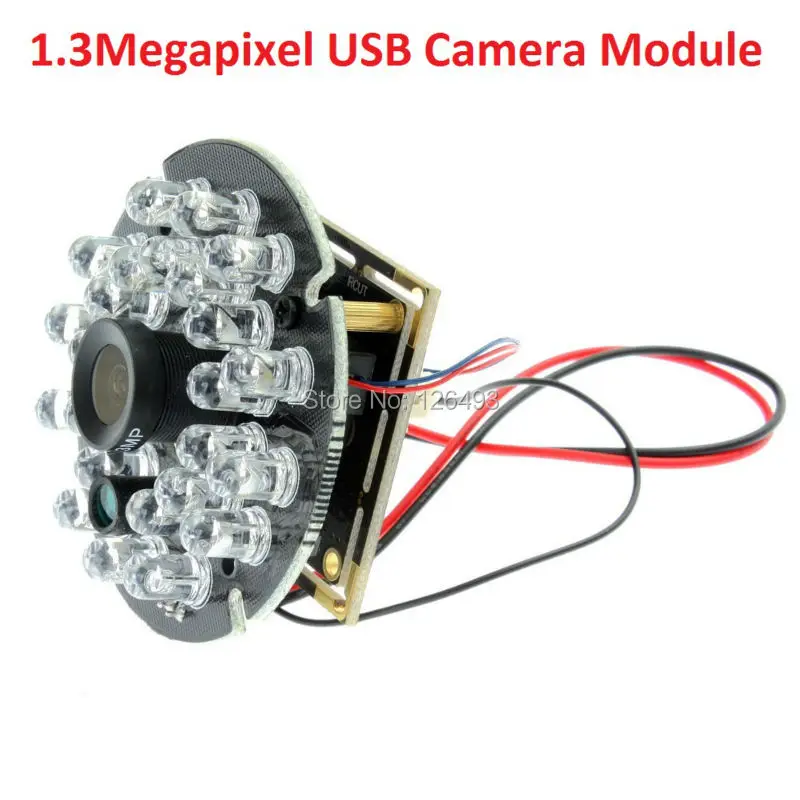

1.3mp HD cmos AR0130 MJPEG 30pfs Infrared night vision ir usb camera android for atm machines ELP-USB130W01MT-RL80
Package include:
1) 1PC 1.3mp ir usb camera module with 8mm lens
2) 1PC 1m usb cable( 2m/3m/5m optional)
Key features:
1. High speed USB 2.0 interface;
2. High quality image 1.3 Megapixel CMOS sensors OmniVision;
3. High frame rate 30fps@1280X720P resolution
4. UVC. for Windows, Linux, XP, Android
5. With IR cut and led board
6 low illumination 0.01 lux
Features
*CMOS 960P sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or Android 4.0 above.
*Camera with UVC.
Specification
Module No. | ELP-USB130W01MT-RL21 ELP-USB130W01MT-RL28 ELP-USB130W01MT-RL36 ELP-USB130W01MT-RL60 ELP-USB130W01MT-RL80 ELP-USB130W01MT-RL12 |
Module Size | 38mm × 38mm 32mm × 32mm |
Temperature (Operation) | -20°C to 70°C |
Temperature (Stable Image) | 0°C to 60°C |
Camera Board Assembly technique | SMT (ROSH) |
Focus | Manual |
Object distance | 5CM-100M |
Resolution | 600LW/PH (Center) |
interface | USB 2.0 High Speed |
protocol | USB Video Class(UVC) |
Power | USB bus power |
Operating system request | Win XP\Win7\Win8\Android\Linux\Mac OS |
Certifications | FCC and CE |
Sensor Type | AR0130 (1/3” ) |
Active Array Size | 1280 *960 |
Minimal illumination | 0.01Lux |
Pixel Size | 3.75um |
Maximum Image Transfer Rate | 1280 (H) x 960(V) pixels MJPEG 15fps YUY2 8fps 1280 (H) x 720 (V) pixels MJPEG 30fps YUY2 10fps 960 (H) x 720 (V) pixels MJPEG 30fps YUY2 15fps 800 (H) x 600 (V) pixels MJPEG 30fps YUY2 20fps 640 (H) x 480 (V) pixels MJPEG 30fps YUY2 30fps |
S/N Ratio | 44dB |
Dynamic Range | 83.5dB |
Shutter | Rolling shutter/ frame exposure |
Lens Type | |
Lens Construction | 5G+IR |
Focal Length | 2.1mm/2.8/3.6/6/8/12mm lens optional |
F/No | 1.8 |
BFL(Optical) | 6.5mm |
FOV | 30- 150degree |
IR Filter | 650±10nm |
DSP Type | RV1080P |
AGC/AEC/AWB/ABF | Auto |
Output Formats | YUYV/MJPEG |
IR CUT | SUPPORT |
Adjustable parameters | Brightness Contrast Hue Saturation Sharpness Gamma White BalanceExposure Focus |
Package | LQFN-40pin |
USB Cable | 1M(2M/3M/5M Optional) |
Products display:
Please compare the effect.
Packing :
About us:
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Big Stock Promo High quality 960P HD cmos AR0130 MJPEG 30pfs Infrared night vision infrared usb camera for laptop
