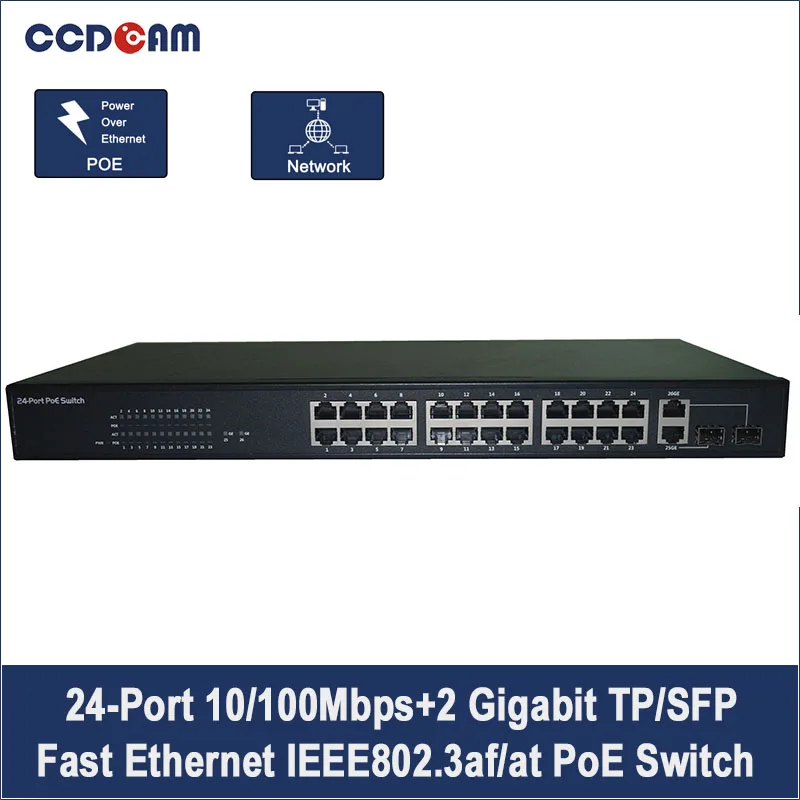

Fast Offers CCDCAM 24-Port 10/100Mbps+2 Gigabit TP/SFP Combo Fast Ethernet 24CH PoE Switch Gigabit for POE IP Camera CCTV System remote cctv Rating: 3.3 out of 5
CCTV Security Cameras Product Store Choice Collections provide remote cctv,security surveillance, spy camera Fast Offers CCDCAM 24-Port 10/100Mbps+2 Gigabit TP/SFP Combo Fast Ethernet 24CH PoE Switch Gigabit for POE IP Camera CCTV System. Price at this time US $218.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!
Best* 28 port switch with 24 port PoE ,100Mbit *24port* 2 Gigabit uplink port* 2 Gigabit SFP port ComboCCTV Security Cameras Product Store Choice Collections provide remote cctv,security surveillance, spy camera Fast Offers CCDCAM 24-Port 10/100Mbps+2 Gigabit TP/SFP Combo Fast Ethernet 24CH PoE Switch Gigabit for POE IP Camera CCTV System. Price at this time US $218.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!
Features:
>Up to 30W of Power on>IEEE 802.3af/at>Compatible With All IEEE 802.3af/at or Legacy>Safe: Low Power Devices Receive Only the Power TheyNeed>Safe and Reliable Power to WLAN Access Points>Automatic Detection and Protection of Non-standard>Ethernet Terminals>Supports 10/100 Base-T applications>Compact Design Fits Easily in WLAN Access>Plug-and-Play no configuration required>Internal power supply>Easy installation and maintenance>Save up to 83% power with Green Technology>complies to IEEE 802.3afPoE standard and is backwardHardware SpecificationPSE2624GSR | ||
10/100Mbps Copper Ports | 24: 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X ports | |
1000Mbps Copper Ports | 2 10/100/1000Mbps RJ-45 Auto-MDI/MDI-X ports | |
SFP/mini-GBIC Slots | 2 1000Base-SX/LX | |
Switch Architecture | Store-and-Forward | |
Switch Fabric | 8.8Gbps / non-blocking | |
Switch Throughput | 6.547Mpps @64Bytes | |
Address Table | 8K entries | |
Share Data Buffer | 512Kbytes | |
Maximum Frame Size | 9K Bytes | |
Flow Control | Back pressure for Half-Duplex | |
IEEE 802.3x Pause Frame for Full-Duplex | ||
LED | Power, POE(Yellow) | |
Link/Activity (Green) | ||
1000 ACT(Green) | ||
1000 LINK(Yellow) | ||
10/100 LNK / ACT(Green) | ||
Reset Button | < 5 sec: System reboot | |
> 5 sec: Factory Default | ||
Dimension (W x D x H) | 440x 220 x 44 mm, 1U height | |
Weight | 4 kg | |
Power Requirement | 100~240V AC, 50-60 Hz | |
Power Consumption / Dissipation | 350 Watts maximum /1194 BTU/hr maximum | |
Power over Ethernet | ||
PoE Standard | IEEE 802.3af/at Power over Ethernet / PSE | |
PoE Power Supply Type | End-Span | |
PoE Power Output | Per Port 54V DC, 350mA~560ma . Max. 15.4~30 Watts | |
Power Pin Assignment | 1/2(+), 3/6(-), Mode-A | |
PoE Power Budget | 320 Watts | |
Max. number of Class 0-3 PD | 24 | |
Max. number of Class 4 PD | 5 Max. 30W | |
Standards Conformance | ||
Regulation Compliance | FCC Part 15 Class A, CE | |
Standards Compliance | IEEE 802.3: 10Base-T | |
IEEE 802.3u: 100Base-TX | ||
IEEE 802.3z: 1000Base- SX/LX | ||
IEEE 802.3ab: 1000Base-T | ||
IEEE 802.3af: Power over Ethernet | ||
Environemmental | ||
Operating | Temperature: | 0 ~ 50 Degree C |
Relative Humidity: | 20 ~ 95% | |
Storage | Temperature: | -10 ~ 70 Degree C |
Relative Humidity: | 20 ~ 95% (non-condensing) |
