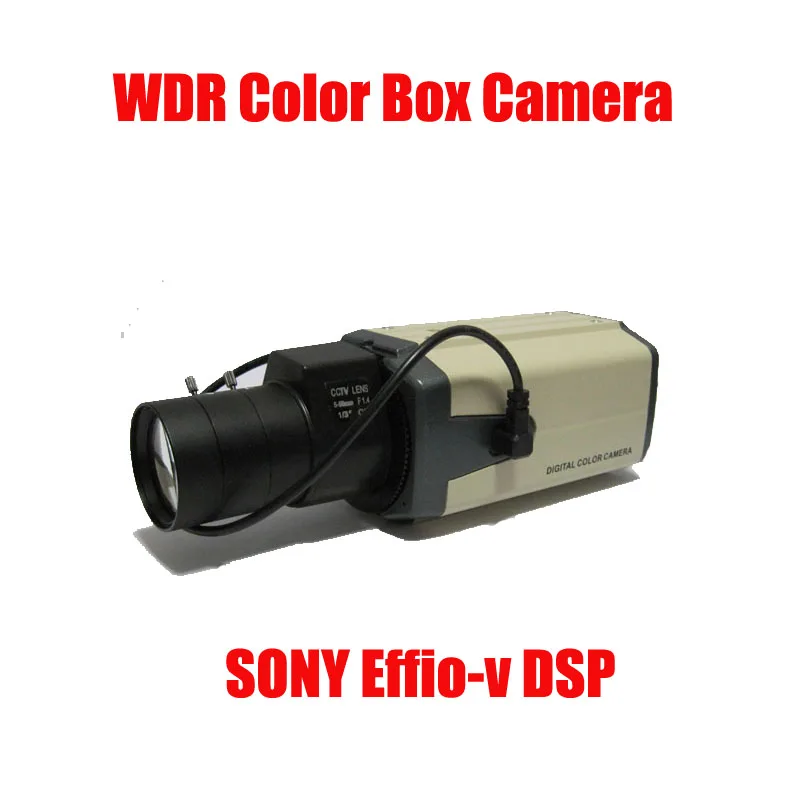

Free Shipping True WDR 1/3" Sony Double Scan 960H CCD Effio-V DSP 750TVL~800TVL Defog CCTV Monitoring Box Camera CS Mount w/OSD DC12 Power
Notice:
1. Lens and power adaptor are sold separately. Please order from our store and inform us to revise freight.
2. Please select PAL or NTSC for your application country.
Features:
1/3" Sony Double Scan WDR CCD (ICX662/663), 960H
Latest Sony Effio-V DSP (CXD4141) - 3rd Generation Effio Series High Resolution 750TVLMin. Illumination starlight 0.001 LuxOSD control True Wide Dynamic Range (WDR)Automatic scene detection functionScene selection functionDigital slow shutter (DSS)Highlight Compensation (HLC)Backlight Compensation (BLC) power input DC12V Specification:Image Sensor: 1/3" Sony CCD DSP: Effio-VICX662/663 + CXD4141Horizontal Resolution: 750TV LinesEffective Pixel: NTSC: 976(H)x494(V); PAL: 976(H)x582(V)Mini. Illumination: 0.001 Lux/F2.0Signal System: NTSC / PALLens: C/CS mount interface (Lens is not included)S/N Ratio: >/=52dB (AGC OFF)Gamma Correction: 0.45Video Out: Composite Signal (1.0Vp-p, 75Ω)Scanning System: PAL: 625 Lines, 50 Fields/Sec; NTSC: 525 Lines, 60 Fields/SecElectronic Shutter Time: Auto: PAL 1/50~1/100,000Sec; NTSC 1/60~1/100,000SecOperation Temperature: -10°C ~ +50°C RH95% MaxStorage Temperature: -20°C ~ +60°C RH95% MaxPower Supply: DC 12VDimension: 103*64*56mmOSD Control:Scene select: Custom/Full Auto/Indoor/Outdoor/Backlight/ITS Shutter/AGC: Auto/Manual/TfixWhite BAL:ATWHLC/BLC: Off/OnWDR/ATR-EX: Clear face: Mid/High/Low/OffDNR: 0-6 LevelsDay&Night: Auto/Day/NightIR Optimizer: On/OffE-zoom: 0-255XDIS: On/OffPrivacy Mask: Area sel: 1-15Display: On/OffMotion Dection: On/OffLanguage: Chinese/Japanese/English/Spainish/Russian/Portuguese/Deutsch/FrenchPackage Content:1x Box Camera (Lens not included)Tips:
1. This camera module adopts Sony 663 WDR CCD and 4141 Effio-P/V WDR DSP, which is a true hardware WDR chipset solution featuring superior dyanmic range image performance.
2. What is WDR (Wide Dynamic Range) function: Wide Dynamic Range (WDR) Technology uses two shutter speeds in alternative video fields, high and normal, and combines these two fields into one frame. It allows every detail to be captured accurately even if one portion is bright while other portions are dark. As a result, combined fields yield a frame of high quality images.
WDR describes an attribute of an imaging system that can record greater scene details, from shadows to highlights than normal. Having "wide dynamic range" is a relative term that can describe both the capability of a sensor or other imaging system, as well as the contents of an image file containing such data. The amount of dynamic range in an image which would qualify as "wide" changes over time as new systems are developed. WDR is desirable for photography and video-based systems due to its greater latitude in manipulating images. Cameras with wide dynamic range capability are commonly used in surveillance cameras, video systems, and some medical applications. In surveillance, WDR is intended to provide clear images even under backlighting, where the intensity of illumination varies a lot - namely when there are very bright and very dark areas simultaneously in the cameras field of view. WDR allows an imaging system to correct for the intense back light surrounding a subject and thus enhances the ability to distinguish features and shapes on the subject. WDR cameras are usually recommended for situations where light enters a premise from various angles such as a multi-window room. A camera placed on the inside of the room will be able to see through the intense sunlight or artificial light coming in. If an indoor security camera is pointed towards a window or an entrance door, you will see the background washed out during daytime. This is a common occurrence in restaurants and stores with large glass windows.
Application: Vehicle license plate recognition system, entrance surveillance in stores/banks/restaurants/etc., parking lot management, ATM, etc.
Below is a comparison of Effio-V WDR camera technology with its video images of regular (WDR Off) and Wide Dynamic Range On.
3. What is HLC (Highlight Compensation): Highlight Compensation suppresses strong light sources (such as the headlights of automobiles, flashlights, etc.) in dark places and prevents camera from being blinded.
