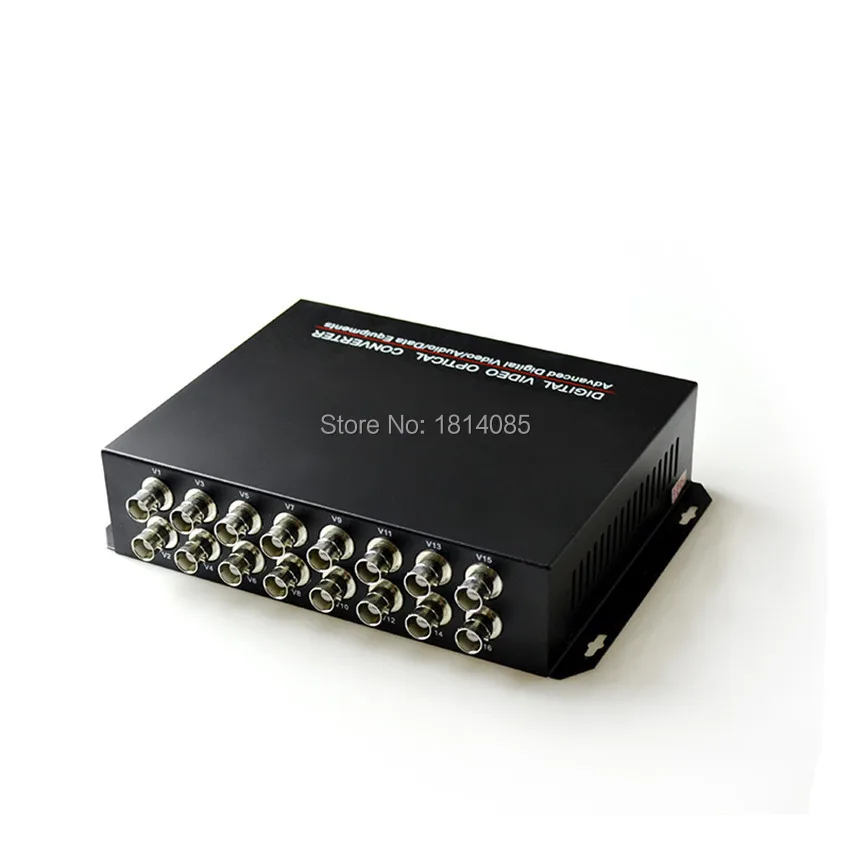

CCTV Security Cameras Product Store Choice Collections provide camera system,cctv camera Great Clearance CCTV 16Channels Fiber Optic Video Convertor 16 channel Video to fiber converter/Fiber optic Video Multiplexer. Price at this time US $299.99/lot. Check price now to get discount! Dont waste your time. Buy Now only in ShenZhen Higtek Fiber Optical Company Trusted Seller Store!
Take a look at our testimonial to get the best products you want. You can check out detail details concerning this goods below. Checkout our Flash Deal Great Clearance CCTV 16Channels Fiber Optic Video Convertor 16 channel Video to fiber converter/Fiber optic Video Multiplexer review to get the ideal items you choose. You could read detail info about this item listed below. Discount Great Clearance CCTV 16Channels Fiber Optic Video Convertor 16 channel Video to fiber converter/Fiber optic Video Multiplexer goods prices and also schedule are precise since the date/time indicated as well as go through alter. Any type of cost and availability info displayed on this website at the time of acquisition will put on the acquisition of this item.
Description
The Product provides customer with the most cost-effective solution for transmission with 16 channels uncompressed digital video over one single fiber cable. It is an easy installation and adjustment free device while providing high quality, real-time video.
The devices are directly compatible with NTSC, PAL, and SECAM camera systems.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link. Devices are available for either stand alone or rack-mount installation with the BVC 14-Slot Chassis.
Features
8-Bit Uncompressed Video Transmission
• NTSC, PAL or SECAM Video Compatible
• Support Point-to-Point or Daisy-Chain connection
• Multimode Fiber transmit up to 1.5 km without Optical Attenuation
• Single-Mode Fiber transmit up to 80km without Optical Attenuation
• WDM Technology for Higher Reliability
• No EMI, RFI, Cross Talk or Video Distortion and no ground loops
• LED Indicators for Instant System Monitoring
• Standalone or Rack Mount in FVC14 Chassis
• Produce according to customers specifications,providing OEM
Specifications
Video performance:
Number of video channel: 16 channels
Video connector: 16 BNC
Video bandwidth: 5Hz-7.5MHz
Video input/output impedance: 75 ohms (unbalanced)
Video input/output voltage: 1.0VP - P
Video voltage range: 0.6~2.0Vp-p
Differential gain: < ±1.5%
Differential phase : < ±1°
S/N Ratio: S/N 67dB
Fiber (Ethernet), Optical performance:
Number of channels: 1
Standard: ANSI X3T12TP-PMD IEEE 802.3/802.3u
Protocol: IEEE 802.1q VLAN IEEE802.3x Full Duplex flow control and Backpressure Half Duplex flow control
Work mode: 10M/100M, Full/Half Duplex Auto-negotiation
Throughput rate:100%@10M
Optical input: 1310nm Single mode; 850nm Multimode
Receiver sensitivity: -30 dBm; 80km Singlemode; 2km Multimode
Transmitter Output Power: -8 to -3dBm
Sensitivity: less than or equal :-35dbm
Receiver - Sensitivity:more than or equal to -24dBM
Optical Power Budget: 17 to 22dB
Connector: SC/FC/ST,19 1U rack mounted with LC connector
Number of fibres: 1
Environmental specifications:
Operating Temperature: -40°C ~ +85°C
Storage Temperature: -40°C ~ +85°C
Relative humidity: 0 to 95% (non-condensing)
MTBF: >100,000 hours
Electrical & Mechanical:
Input Power Requirements: DC 5V@2A
Power Adapter: AC 100V~240V
Power Consumption: < 3W
Stand-Alone Dimensions: 183mm × 154mm × 61mm
Shipping Weight: (include Transmitter & Receiver ) 2.5kg
Applications
Intelligent transportation system (ITS)Security and protection system ;Telemedicine systemRemote multimedia teaching/campus monitoring system;Video conference system and audio conference systemLong distance broadcast/television transmission system ;Building controlling system.
The Fiber Optical Video Converter is an all-digital fiber transmission device,with world-class non-compression, all digital video correction technology and Gigabit fiber transmission technology. It supports long-distance, nondistortion and realtime transmission of 1~64 channels of video signal (and other kinds of signals if necessary) in one-core fiber optic.They are suitable to the purpose of monitor and surveillance in expressways, the customs, transportation, electronic police, industrial automation, power service, banks, and water conservation projects, etc...
Note
• The Optical Power Budget data fit Mulit-mode(62.5/125 μm),Single-Mode(9/125 μm).
• When using 50/125 μm multimode fiber, subtract 3 dB from the optical power budget.
• Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
• Maximum transmission distance is also limited by fiber bandwidth.
• Power adapter is manufactured by third party and is supplied with fitted screw-terminal output cables.Power adapter included (for standalone) US, European, UK or Australian power plug.
• Please feel free to consult factory for any special requirement and customization.
• Due to continuous improvement, all fiber optic transmission systems and video over fiber product specifications are subject to change without further notice.
About Payment
1. We can accept payment via Escrow, Western Union and T/T. The best way is direct online payment,you can choose yourself. If you want to use other payment terms, please let us know before when you order.
2. Full payment must be made within 7 days after placing your order, or the order will be invalid or canceled by the system.
3. Make sure that you have completed all the detailed information like contact person, address, post code and telephone number when filling in your buyers information.
About Shipment
1. We will send the goods within 5 business days after the full payment has been confirmed.
2. We can provide the international shipping services as follows:
China Post Air Mail, HK Post Air Mail, EMS, TNT, DHL, UPS, Fedex. The default way is by China post air mail and HK post air mail.
3. The buyer is responsible for insurrance, problems and damage which caused by shipping service such as accidents, delays or other issues. Besides, we are not responsible for any custom duty or import tax, these charges are not included in the item price and shipping cost.
The Following is estimated time for different shipping methods
WARRANTY&GUARANTEE
1. All the goods are inspected and tested before shipment. if you are not satisfied with the goods, you can exchange the items within 7 days and you must contact us within 24 hours after the receipt of the items.
2. The shipping and handling charge is not refundable and customer should be responsible for all the charges of returning and reshipping.
3. All return items must be in its original conditions, including box and accessories. Man-made defects are not guaranteed, such as broken, scratched and so on.
4. For any items, please use EMS or your local post when send back
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Great Clearance CCTV 16Channels Fiber Optic Video Convertor 16 channel Video to fiber converter/Fiber optic Video Multiplexer
