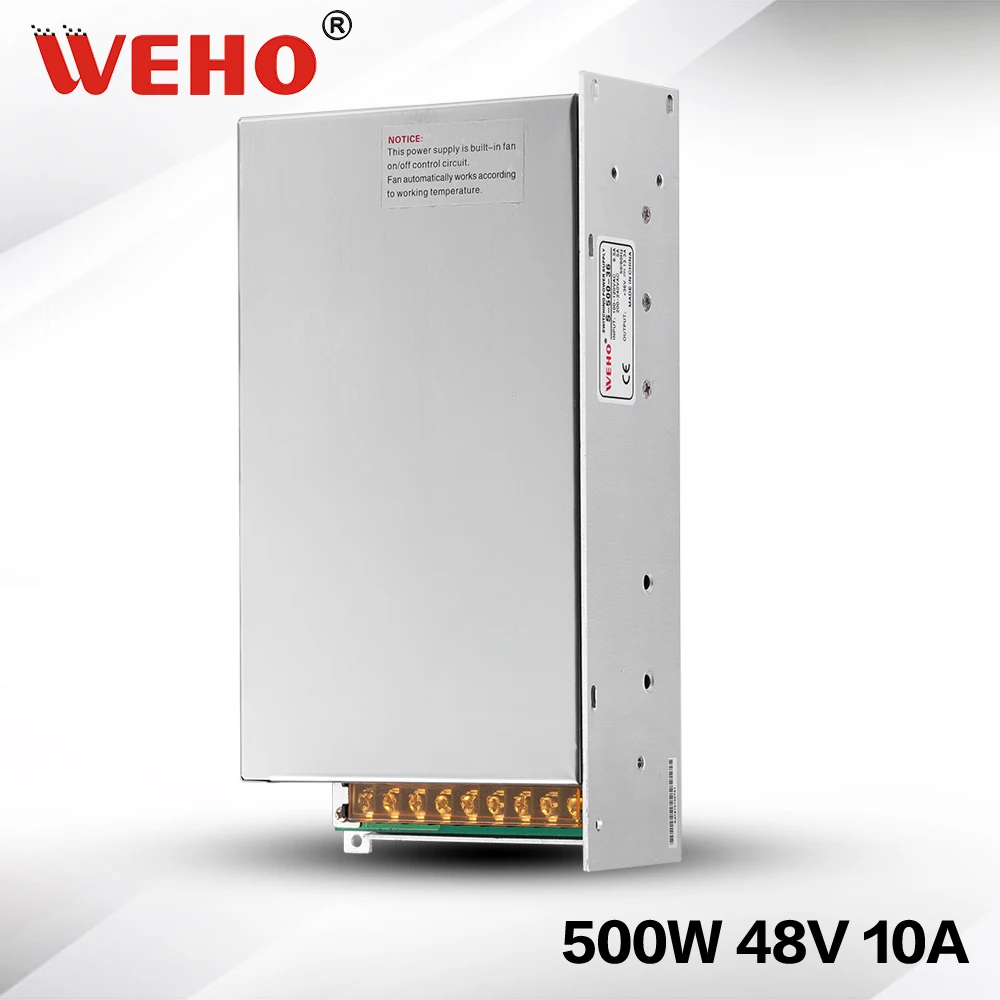

Hurry! Gift (S-500-48) Factory outlet AC to DC camera CCTV power supply 500W 10A 48V led switch power supply

Hurry! Gift (S-500-48) Factory outlet AC to DC camera CCTV power supply 500W 10A 48V led switch power supply Rating: 4.2 out of 5

CCTV Security Cameras Product Store Choice Collections provide remote cctv,camera system Hurry! Gift (S-500-48) Factory outlet AC to DC camera CCTV power supply 500W 10A 48V led switch power supply. Get Discount Now! Only US $34.20/piece at this time. Hurry buy Now before back to normal price! Normal price US $36.00 or you can Check price now. Dont waste your time. Buy Now only in Trusted Seller Store!

MODELS-500-12S-500-13.5S-500-15S-500-24S-500-27S-500-48
OUTPUTDC VOLTAGE12V13.5V15V24V27V48V
RATED CURRENT40A36A32A20A18A10A
CURRENT RANGE0 ~ 40A0 ~ 36A0 ~ 32A0 ~ 20A0 ~ 18A0 ~ 10A
RATED POWER480W486W480W480W486W480W
RIPPLE & NOISE (max.)240mVp-p240mVp-p240mVp-p240mVp-p200mVp-p300mVp-p
VOLTAGE ADJ. RANGE10 ~ 13.2V12 ~ 15V13.5 ~ 18V20 ~ 26.4V26 ~ 32V41 ~ 56V
VOLTAGE TOLERANCE±1.0%±1.0%±1.0%±1.0%±1.0%±1.0%
LINE REGULATION±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%
LOAD REGULATION±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%
SETUP, RISE, HOLD TIME200ms, 50ms, 20ms at full load
INPUTVOLTAGE RANGE180 ~ 264VAC (110VAC input can be custom-made)
FREQUENCY RANGE47 ~ 63Hz
EFFICIENCY (Typ.)84%84%84%86.0%87.0%88%
AC CURRENT7A/115V 3.5A/230V
INRUSH CURRENT (max.)18A/115V 36A/230V
LEAKAGE CURRENT
PROTECTIONOVERLOAD105 ~ 135% of rate load
Protection type : Fold back current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE13.8 ~ 16.2V15.5 ~ 18.2V18 ~ 21V27.6 ~ 32.4V31 ~ 36.5V57.6 ~ 67.2V
Protection type : Hiccup mode, recovers automatically after fault condition is removed.
FAN CONTROL,O.T.P.RTH1 or RTH250ºC FAN ON,45ºC FAN, 70ºC output shut down
ENVIRONMENTWORKING TEMP.-10 ~ +60ºC, 20 ~ 90% RH non-condensing
WORKING HUMIDITY20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY-20 ~ +85ºC, 10 ~ 95% RH
TEMP. COEFFICIENT±0.03%/ºC (0 ~ 50ºC)
VIBRATION10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMCSAFETY STANDARDSDesign refer to UL1950, TUV EN60950-1
WITHSTAND VOLTAGEI/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMI CONDUCTION & RADIATIONCompliance to EN55022 (CISPR22) Class B
HARMONIC CURRENTCompliance to EN61000-3-2,-3
EMS IMMUNITYCompliance to EN61000-4-2,3,4,5,6,8,11;ENV50204,Light industry level,criteria A
OTHERSMTBF138.6K hrs min. MIL-HDBK-217F (25ºC)
DIMENSION240*125*65mm (L*W*H)
PACKING1.35Kgs/pcs, 12pcs/17.7Kgs/0.0326CMB

Return Policy

If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.
N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.

Seller Service

On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).
Hurry! Gift (S-500-48) Factory outlet AC to DC camera CCTV power supply 500W 10A 48V led switch power supply
