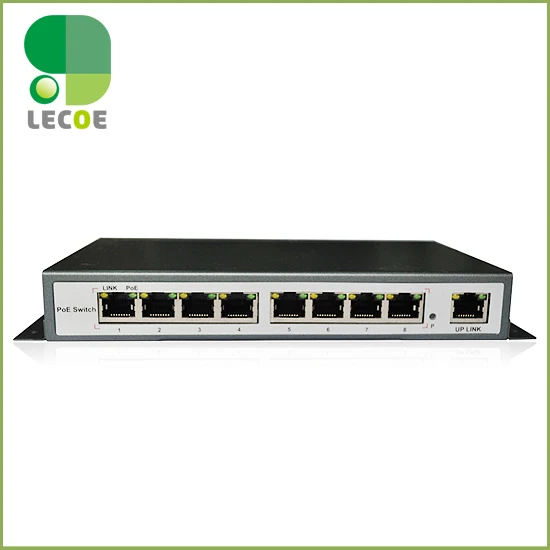

Wonderful Limited 9 port 8 IEEE802.3af/at PoE Switch/Adapter for CCTV Network POE IP Cameras System 8 x 100M bit Auto-MDI

Wonderful Limited 9 port 8 IEEE802.3af/at PoE Switch/Adapter for CCTV Network POE IP Cameras System 8 x 100M bit Auto-MDI Rating: 4.8 out of 5

CCTV Security Cameras Product Store Choice Collections provide spy camera,cctv system,remote cctv Wonderful Limited 9 port 8 IEEE802.3af/at PoE Switch/Adapter for CCTV Network POE IP Cameras System 8 x 100M bit Auto-MDI. Get Discount Now! Only US $79.95/piece at this time. Hurry buy Now before back to normal price! Normal price US $98.70 or you can Check price now. Dont waste your time. Buy Now only in LEVCOECAM Official Store Trusted Seller Store!

Great Discount Wonderful Limited 9 port 8 IEEE802.3af/at PoE Switch/Adapter for CCTV Network POE IP Cameras System 8 x 100M bit Auto-MDI goods can improve the quality of your life. Qualified to be purchased. Affordable rate and free shipping. Allow's purchase prior to costs increase.

These days this Clearance Wonderful Limited 9 port 8 IEEE802.3af/at PoE Switch/Adapter for CCTV Network POE IP Cameras System 8 x 100M bit Auto-MDI product is really budget-friendly for virtually everyone and also its a very good buy for the money.

Features:

* IEEE 802.3af Power over Ethernet PoE compliant

* Supports 10/100Mbps fast Ethernet

* 8 x 100M bit Auto-MDIX PoE ports

* External power supply

* Provides up to 15.4 watts for PoE

* Automatically detects the PoE class level of a Powered Device

* 1Gbps Backplane bandwidth

* Forwarding rate: 100 Mbps / 148,800 pps; 10 Mbps / 14,880 pps

* Status LEDs: System Power, PoE, 100 Mbps, and Link / Activity

* Full wire-speed non-blocking reception and transmission

* Store-and-forward switching method

* Back pressure Flow Control for Half-Duplex mode

* IEEE 802.3x Flow Control for Full-Duplex mode

* Power saving technology powers down unused ports and when a connected device is in standby mode

* Plug and Play

* Sturdy rack mountable metal case

* Easy installation and use , no need to convert by software and network protocol

* 1-year limited warranty

Flexible
Choose to plug in up to five Ethernet or Fast Ethernet devices and mix in up to four IEEE802.3af IP-based devices like wireless access points or IP-based network surveillance cameras. Place these IEEE802.3af-compliant devices where they belong – high up on walls and ceiling for maximum coverage – or anywhere else you need them. Power and data are carried over standard Cat 5 cabling.

Plug and Play
The standards-based PoE Switch senses and adjusts for network speed and cabling type automatically, for easy integration into your existing 10/100 Ethernet network. For PoE, the switch automatically detects IEEE802.3af-compliant devices, and supplies power as needed. Front panel LEDs keep you informed of switch and PoE status.

Quiet and Compact
Engineered for compact convenience, it durable metal case that is easily positioned on your desktop or a wall, using the included mounting hardware. The fan-less design quietly integrates with your small office environment.

Great Value
With data switching and Power over Ethernet integrated into one unit, the PoE Switch saves space, reduces cables and eliminates the requirement for dedicated electrical outlets – lowering installation costs, simplifying installation of PoE-capable devices, and eliminating the need for electricians or extension cords. All in all, a great benefit for a modest price.

Technical Specification:

Technical parameter list

Product Name9

Port 10/100M PoE switch with 8 port PoE injector

Model

POE31004P

Description

8 Port PoE injector+1 fast ethernet uplink port switch

Connector

9 10/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX with 8 Port PoE

Network Media

100Base-TX (≤150, Catalogue 5 cable)

Fabric

1.6 Gbps

Architecture

Store-And-Forward Architecture

MAC Address

1K

Standard

IEEE 802.3i; IEEE 802.3u; IEEE 802.3x Flow Control; IEEE 802.1af /atDTE Power via MDI

Other Feature

/

PoE Port

1-8 Port support PoE (15.4Watts per port)

PoE Standard

IEEE802.3af

PoE Type

End-span (Mid-span optional)

PoE Feature

Output power 15.4Watts (IEEE802.3af)

Power Pin

1/2+ 3/6- (4/5+ 7/8- optional)

Power Budget

150Watts

NM

/

VLAN

/

QoS

/

NMP

/

Other

/

Environment

Operating temperature: 0 to 55° C Storage temperature: -20 to 75°C, Operating Humidity 10%-90%

EMI Safety

FCC Class A, CE

Power Supply

External Adpater (Input:AC100-240V 50/60Hz, Output:48V 1.25A)

LED Display

Power, Ethernet Data, PoE working status

Weight

0.9kg

After-sales

Switch warranty: 1 year, Adapter warranty: 2 years. Lifetime Maintenance

Packing List

PoE switch, Adpater, Installtion Guide, Installtion Hangers Warranty card, User Information card.

Return Policy

If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.
N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.

Seller Service

On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).
