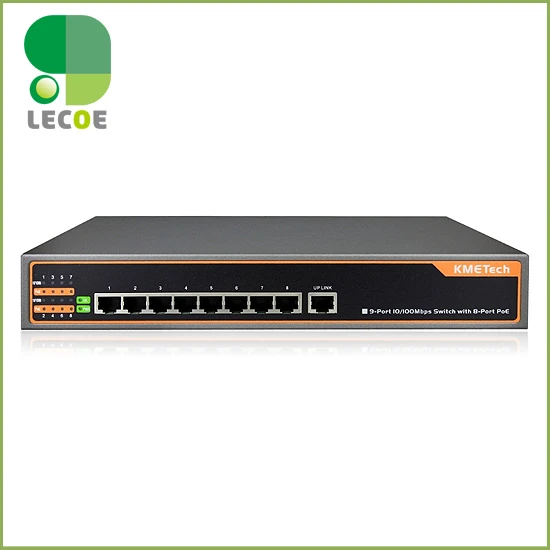

CCTV Security Cameras Product Store Choice Collections provide camera system,security surveillance Cool Special 8 port IEEE802.3af/at PoE Switch/Adapter for CCTV Network POE IP Cameras System. Get Discount Now! Only US $99.63/piece at this time. Hurry buy Now before back to normal price! Normal price US $123.00 or you can Check price now. Dont waste your time. Buy Now only in LEVCOECAM Official Store Trusted Seller Store!
As an item that assists your requirements to get comfort, naturally this product is very intriguing to obtain. This product is really setting friendly. Where to cleanse it is really simple. You do not require to seek services to clean up your purchased products, simply do it yourself in the house using the guidelines that have been provided. This stylish as well as straightforward layout is best for those of you that like the minimal style in every product you have. Additionally, there are a lot more various attributes that you could get and certainly actually assists you to help with all your active life.
Features:
* IEEE 802.3af Power over Ethernet PoE compliant
* Supports 10/100Mbps fast Ethernet
* 8 x 100M bit Auto-MDIX PoE ports
* External power supply
* Provides up to 15.4 watts for PoE
* Automatically detects the PoE class level of a Powered Device
* 1Gbps Backplane bandwidth
* Forwarding rate: 100 Mbps / 148,800 pps; 10 Mbps / 14,880 pps
* Status LEDs: System Power, PoE, 100 Mbps, and Link / Activity
* Full wire-speed non-blocking reception and transmission
* Store-and-forward switching method
* Back pressure Flow Control for Half-Duplex mode
* IEEE 802.3x Flow Control for Full-Duplex mode
* Power saving technology powers down unused ports and when a connected device is in standby mode
* Plug and Play
* Sturdy rack mountable metal case
* Easy installation and use , no need to convert by software and network protocol
* 1-year limited warranty
Flexible
Choose to plug in up to five Ethernet or Fast Ethernet devices and mix in up to four IEEE802.3af IP-based devices like wireless access points or IP-based network surveillance cameras. Place these IEEE802.3af-compliant devices where they belong – high up on walls and ceiling for maximum coverage – or anywhere else you need them. Power and data are carried over standard Cat 5 cabling.
Plug and Play
The standards-based PoE Switch senses and adjusts for network speed and cabling type automatically, for easy integration into your existing 10/100 Ethernet network. For PoE, the switch automatically detects IEEE802.3af-compliant devices, and supplies power as needed. Front panel LEDs keep you informed of switch and PoE status.
Quiet and Compact
Engineered for compact convenience, it durable metal case that is easily positioned on your desktop or a wall, using the included mounting hardware. The fan-less design quietly integrates with your small office environment.
Great Value
With data switching and Power over Ethernet integrated into one unit, the PoE Switch saves space, reduces cables and eliminates the requirement for dedicated electrical outlets – lowering installation costs, simplifying installation of PoE-capable devices, and eliminating the need for electricians or extension cords. All in all, a great benefit for a modest price.
Technical Specification:
| Technical parameter list |
| Product Name9 | Port 10/100M PoE switch with 8 port PoE injector |
| Model | POE31004P |
| Description | 8 Port PoE injector+1 fast ethernet uplink port switch |
| Connector | 9 10/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX with 8 Port PoE |
| Network Media | 100Base-TX (≤150, Catalogue 5 cable) |
| Fabric | 1.6 Gbps |
| Architecture | Store-And-Forward Architecture |
| MAC Address | 1K |
| Standard | IEEE 802.3i; IEEE 802.3u; IEEE 802.3x Flow Control; IEEE 802.1af /atDTE Power via MDI |
| Other Feature | / |
| PoE Port | 1-8 Port support PoE (15.4Watts per port) |
| PoE Standard | IEEE802.3af |
| PoE Type | End-span (Mid-span optional) |
| PoE Feature | Output power 15.4Watts (IEEE802.3af) |
| Power Pin | 1/2+ 3/6- (4/5+ 7/8- optional) |
| Power Budget | 150Watts |
| NM | / |
| VLAN | / |
| QoS | / |
| NMP | / |
| Other | / |
| Environment | Operating temperature: 0 to 55° C Storage temperature: -20 to 75°C, Operating Humidity 10%-90% |
| EMI Safety | FCC Class A, CE |
| Power Supply | External Adpater (Input:AC100-240V 50/60Hz, Output:48V 1.25A) |
| LED Display | Power, Ethernet Data, PoE working status |
| Weight | 0.9kg |
| After-sales | Switch warranty: 1 year, Adapter warranty: 2 years. Lifetime Maintenance |
| Packing List | PoE switch, Adpater, Installtion Guide, Installtion Hangers Warranty card, User Information card. |
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Cool Special 8 port IEEE802.3af/at PoE Switch/Adapter for CCTV Network POE IP Cameras System
