CCTV Security Cameras Product Store Choice Collections provide remote cctv,cctv camera Excellent Promotion 38*38mm size 3MP 2048X1536 MJPEG Aptina AR0331 CMOS Wide Dynamic Range WDR CCTV Camera PCB Board with 3.7mm lens for Windows. Get Discount Now! Only US $85.45/piece at this time. Hurry buy Now before back to normal price! Normal price US $92.88 or you can Check price now. Dont waste your time. Buy Now only in ELP Ailipu camera module Store Trusted Seller Store!
Inexpensive price and free delivery. Allow's acquire before costs rise.
As an item that helps your needs to get comfort, of course this product is extremely fascinating to obtain. You do not require to look for solutions to clean up your bought products, simply do it on your own at home making use of the guidelines that have actually been given. This straightforward and also sophisticated layout is perfect for those of you who enjoy the minimal design in every item you have.

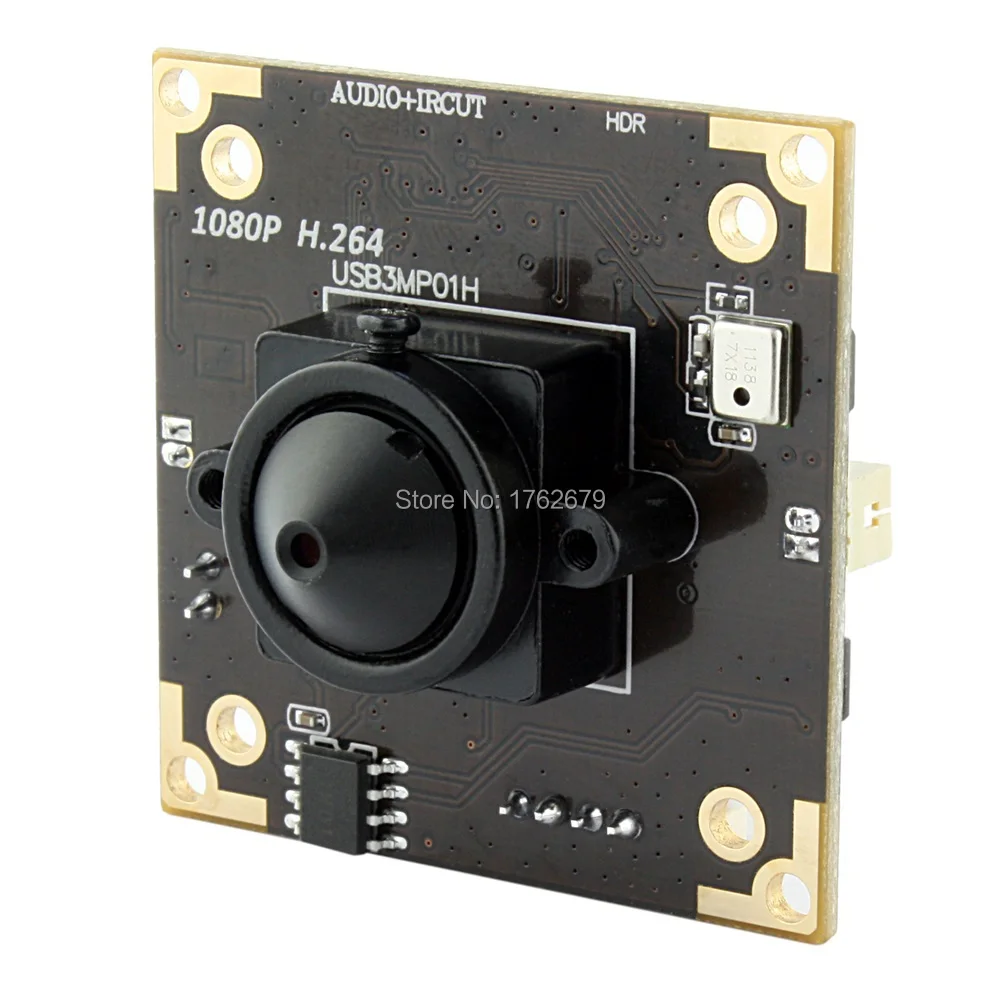

Newest 3MP MJPEG YUY2 /2MP H.264/ 3.7mm lens 1/3" Aptina AR0331 CMOS WDR Surveillance CCTV Camera PCB Board 38*38 mm
The HD 1080P USB CMOS board camera module is ideal for many applications like
security systems, portable video system, video phones, industrial machine monitoring and toys
The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.
WDR 1080P USB Camera module
Support digital audio and IR Cut
H264 1080P WDR USB Camera
*CMOS 1080P sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver H.264 30 fps in 1920X1080 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
ModelELP-USB3MP01H-L37
Sensor AR0331
Lens Size 1/3 inch
Pixel Size 2.2um X2.2um
Max. Resolution 1920(H)X1080(V)
Compression format H264 /MJPEG / YUV2 (YUYV)
Resolution & frameH264: 640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps
MJPEG:640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps/1280X1024@
30fps/1920X1080@ 30fps /1600X1200@ 15fps /2048X1536@ 15fps
YUV:640X480@ 30fps /800X600@ 20fps /1280X720@ 5fps/1280X1024@
5fps/1920X1080@5fps /1600X1200@ 5fps /2048X1536@ 3fps
S/N Ratio39dB
Dynamic Range Up to 100 dB
Responsivity 2.0 V/lux-sec
Mini illumination 0. 05lux
Shutter Type Electronic rolling shutter and GRR
Connecting Port type USB2.0 High Speed
Free Drive ProtocolUSB Video Class (UVC)
Support OTG Protocol USB2.0 OTG
AECSupport
AEBSupport
AGCSupport
Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
Lens ParameterStandard 2.9mm, optional 3.7mm/FOV(D)80 Degree No distortion LENS
Digital audio High quality digital MIC, support single, dual channel
IR CUT Connector Support 2P-1.25mm socket
LED board power connector Support 2P-2.0mm socket
Power supply USB BUS POWER 4P-2.0mm socket
Power supply DC5V
Operating Voltage 140mA~200mA
Working current -10-70degree
Working temperature -20-85degree
Board size /Weight38X38mm/ about 30g
Cable Standard1M / optional 2M,3M,5M
Operating system request Win7 Win8 Win10 Win11
Linux 2.6 or above
Android 4.0 or above
Applications
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site
monitoring, environmental monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player,
LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external,
evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system,
simple security system, teaching system, Interactive system, automobile data recorder. Project video capture,
credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system,
Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance,
endoscope, Medical auxiliary equipment, etc.
Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution
USD 24.86/pieceUSD 24.20/pieceUSD 68.20/pieceUSD 36.30/pieceUSD 40.70/pieceUSD 51.48/pieceUSD 56.10/pieceUSD 50.60/piece
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Excellent Promotion 38*38mm size 3MP 2048X1536 MJPEG Aptina AR0331 CMOS Wide Dynamic Range WDR CCTV Camera PCB Board with 3.7mm lens for Windows
