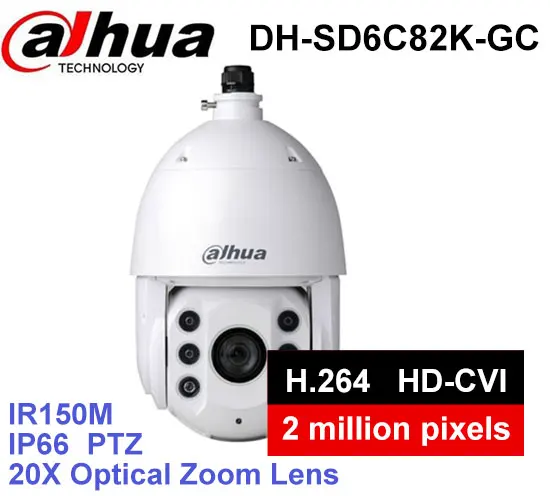

CCTV Security Cameras Product Store Choice Collections provide remote cctv,security camera Great Gift Dahua DH-SD6C82K-GC 2MP 20X Optical zoom lens IR 150M IP66 HDCVI PTZ camera. Price at this time US $398.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!
Technical Parameters：
Camera
Image Sensor: 1/2.8 inch CMOS
Effective Pixels: 2 Megapixels
horizontal resolution: >1000TVL
Resolution : 1280×720(50fps)，1280×720(60fps)1280×720(25fps)，1280×720(30fps)1920×1080(25fps)，1920×1080(30fps)
Minimum Illumination : Color: 0.05Lux/F1.4
Black and white: 0.005Lux/F1.4
0Lux (infrared light on)
Gain control: automatic / manual
IR Distance Distance: up to 150m (492ft)
IR On/Off Control : Auto/Manual
Lens
Focal Length: 4.7mm～94mm
Max. Aperture: F1.4 - F2.6
Angle of View:H: 54.1°～ 3.2°
Optical Zoom: 20x
Focus Control : Auto/Manual
Close Focus Distance : 100mm~ 1000mm
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserve RecognizeIdentify
1862m(6109ft) 744m(2441ft) 372m(1220ft) 186m(610ft)
PTZ
Pan/Tilt Range : Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Manual Control Speed : Pan: 0.1° ~160° /s; Tilt: 0.1° ~60° /s
Preset Speed:Pan: 160° /s; Tilt: 60° /s
Presets : 300
PTZ Mode:5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed Setup : Human-oriented focal Length/ speed adaptation
Power up Action:Auto restore to previous PTZ and lens status after power failure
Idle Motion : Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol : DH-SD, Pelco-P/D (Auto recognition)
Video
Resolution: HDCVI：1280×720(50fps),1280×720(25fps),
Frame Rate: 25/960P, 25/50 fps/960P/720P
Video Output:Support analog & CVI output free to switch, the default 960H analog video output; CVI mode optional, maximum support 1280 × 720 /50fps real-time video output
Support CVI mode HD video, control signal coaxial transmission, ordinary 75-3 coaxial line lossless transmission 1280 × 720 /25fps video up to 500 meters
Day/Night:Auto(ICR) / Color / B/W
OSD Menu: Support
Backlight Compensation: BLC / HLC / WDR (100dB)
White Balance:Auto,ATW,Indoor,Outdoor,Manual
Gain Control: Auto / Manual
Noise Reduction: Ultra DNR (2D/3D)
Digital Zoom : 16x
Flip: 180°
Privacy Masking : Up to 24 areas
Certifications
Certifications： CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1
Interface
Video Interface： 1
Audio Interface ： 1 channel in
RS485： 1
Alarm I/O ： 2/1
Electrical
Power Supply : AC24V/1.5A(±10%)
Power Consumption: 15W,24W (IR on)
Environmental
Operating Conditions: -40°C ~ 60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection: IP66
Vandal Resistance: N/A
Construction
Casing: Metal
Dimensions: Φ202.0mm×325.0mm
Gross Weight : 7.8kg(17.20lb)
Bracket: PFB303W (wall mounted, arm length 255mm);
