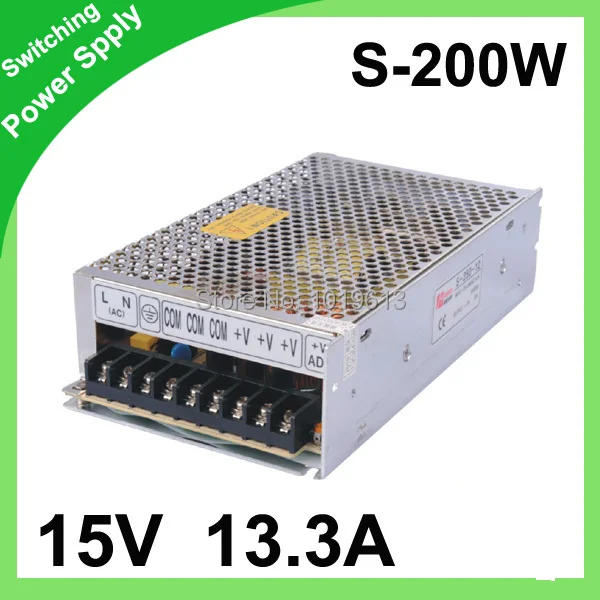

Terrific Special 15V 13.3A 200W Mini size LED Switching Power Supply Transformer 110V 220V AC to DC 5V output, for LED Strip light for CCTV

Terrific Special 15V 13.3A 200W Mini size LED Switching Power Supply Transformer 110V 220V AC to DC 5V output, for LED Strip light for CCTV remote cctv Rating: 4.3 out of 5

CCTV Security Cameras Product Store Choice Collections provide remote cctv,security camera Terrific Special 15V 13.3A 200W Mini size LED Switching Power Supply Transformer 110V 220V AC to DC 5V output, for LED Strip light for CCTV. Price at this time US $15.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in YIYA IMP&EXP CO.,LTD Trusted Seller Store!

Excellent

Product Feature

Single Output S-200 Series Feature: 1. High efficiency, high reliability, lost cost 2. Universal AC input range selected by switch 3. 100% full load burn-in test 4. LED indicator for power on 5. Protections: Short circuit/Over load 6. Cooling by free air convention 7. Fixed switching frequency at 37 KHz 8. 1 year warranty
Model	S-200-5	S-200-12	S-200-15	S-200-18	S-200-24	S-200-36	S-200-48
DC output Voltage Current	5V 40A	12V 16.5A	15V 13.3A	18V 11A	24V 8.3A	36V 5.5A	48V 4.2A
Wave and noise	75mVp-p	75mVp-p	75mVp-p	75mVp-p	75mVp-p	75mVp-p	120mVp-p
Inlet stability	±0.5%	±0.3%	±0.3%	±0.5%	±0.5%	±0.5%	±0.2%
Load stability	±0.5%	±0.3%	±0.3%	±0.5%	±0.5%	±0.5%	±0.5%
Efficiency	80%	82%	83%	84%	84%	85%	86%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%	±10%	±10%	±10%
AC input voltage range	85~132VAC / 176~264VAC Selected by switch 47~63Hz , 240~370VDC
Input Current	4.2A/110V 2.1A/220VAC
AC inrushCurrent	Cold -star-current 15A/115VAC 30A/230V
Overload proctecton	105%~130% cut output hiccup mode auto-recovery
Over-voltage protection	105%~135%
Setup rise hold up time	200ms 50ms 20ms
Withstand Voltage	I/P -O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG:0.5KVAC 1minute
Isolation resestance I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC Working temperature and humidity	I/P -O/P , I/P- FG, O/P-FG:500VDC/100MΩ
	-10~+60, 20%~90%RH
Safety standards	Design refer GB4943, UL60950, EN60950
EMC Standards	Design refer GB9254 , EN55022 Class B
Dimensions	199*110*50mm

Product show
