Great Sale Miniature slip ring 22dia. 12circuits *2A Capsule Slip Ring 220V AC 250Rpm CCTV

Great Sale Miniature slip ring 22dia. 12circuits *2A Capsule Slip Ring 220V AC 250Rpm CCTV remote cctv Rating: 3.4 out of 5

CCTV Security Cameras Product Store Choice Collections provide cctv system,cctv camera,security surveillance,hidden camera Great Sale Miniature slip ring 22dia. 12circuits *2A Capsule Slip Ring 220V AC 250Rpm CCTV. Get Discount Now! Only US $13.56/piece at this time. Hurry buy Now before back to normal price! Normal price US $14.90 or you can Check price now. Dont waste your time. Buy Now only in Das Pionner Store Trusted Seller Store!

Descriptions

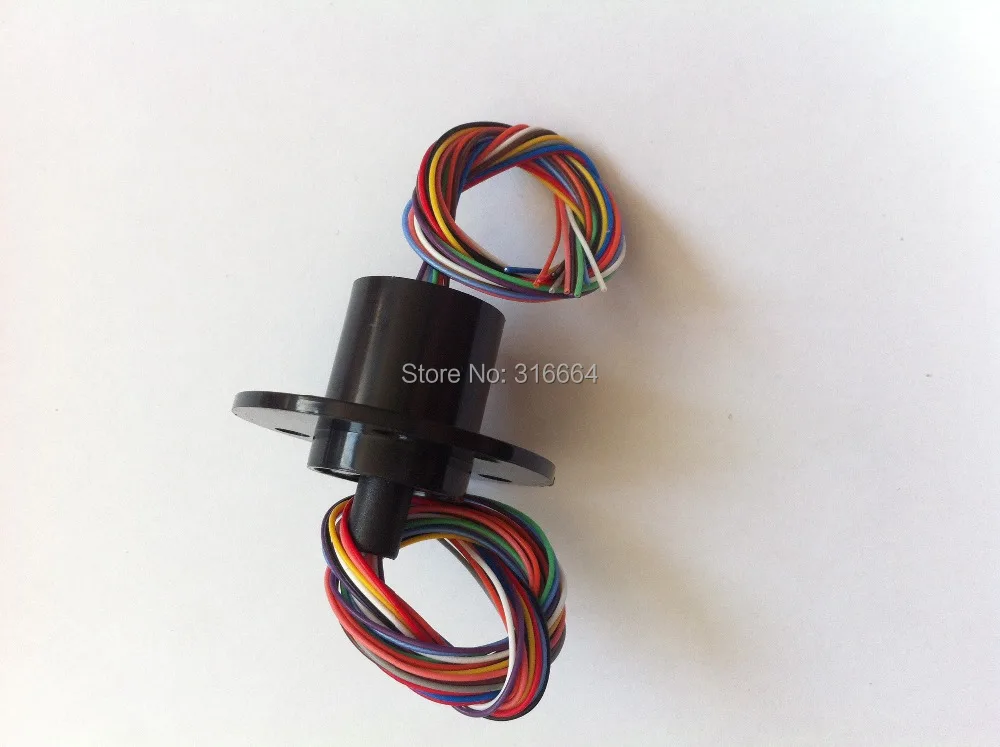

The capsule slip ring is a standard, off-the-shelf series product, that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.Using a 90 degree V-groove ring design for each ring, the ZSR-A provides smoother running, lower torque low contact wear rates than competitive slip ring.

Part No. Circuits Voltage Current Size (mm) Operational ODxL Speed INDUS22-12 12 240 VAC/DC 2A 22XL 26 0-250rpm

Feature

-Used advanced technology to design,lower consumtion.-Compact design allows tremendous flexibility in dealing with system size restrictions: 12.5mm outside diameter, and 26mm length (depend on circuits).-Can combine signal and power in same slip ring,completely satisfy 360 degrees of rotation -Precision module provides long time maintenance -free operation(no cleaning or lubrication required);

Specification

-Operation voltage:220 V/AC-Operation speed:250 Rpm-Circuits:12-Housing Material:Engineering Plastics-Operating Humidity: 60%RH or higher-Operation temp.:-40Celsius degree~+80Celsius degree-Operation current:2A per circuits-Contact material:Gold plated ring-Gold plated brush-Insulation resistance:1000 MΩ @ 500 VDC-Lead size:150mm 30# AWG Teflon wire-Dielectric strength:Between each circuit and all other circuits , ≥ 500 VAC @ 50Hz-Electrical noise:70 milliohms max. tested@6 VDC, 50 milliamps when running@5 rpm-Work life:Depending on speed and working environment-Outside dia:22mm-Length:26mm

Typical Application
-CCTV Monitoring System ;
-Electrical test equipment;
-Medical equipment
-Robotics;

Package includes
1* Capsule slip ring
