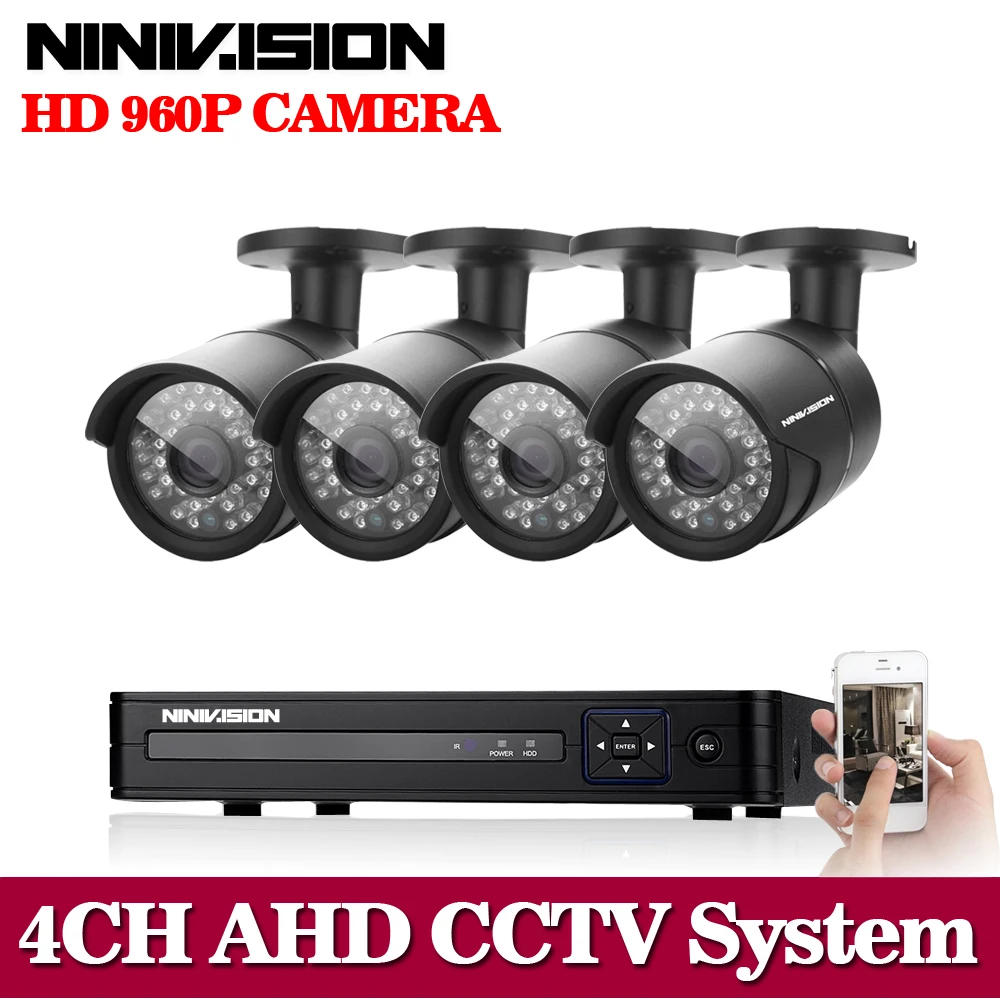

CCTV Security Cameras Product Store Choice Collections provide remote cctv,hidden camera Terrific Flash Deal 960P AHD 4ch cctv security camera system 4CH HDMI AHD TVI DVR Night Vision IR 1.3MP HD CCTV Security Cameras System QR NO HDD. Get Discount Now! Only US $142.72/piece at this time. Hurry buy Now before back to normal price! Normal price US $209.88 or you can Check price now. Dont waste your time. Buy Now only in Shop537559 Store Trusted Seller Store!
Product Show
Package included
- 1 X 4CH AHD-NH 1080N AHD DVR NVR HVR 5 IN 1 Network Digital Video Recorder
- 4 x AHD 960P 1.3MP 1/3" inch indoor outdoor IR Day Night vision waterproof cameras
- 4 X 65feet(20m) cctv video cable for camera
- 1 x 12V/3000mA power adapter for cameras
- 1 x 12V/2000mA power adapter for DVR
- 1 X 1 to 4 power splitter cable
- 1 X USB Mouse for DVR
- 1 X Software CD for DVR
- 1 X remote control for DVR
- NO Hard Disk Included!!!!!
AHD-NH 1080N DVR System
4CH AHD -NH DVR System Support: DVR / NVR / HVR 3 IN 1(AHD Camera/Analog Camera/IP Camera/TVI Camera/CVI Camera)
You can freely enjoy five connection modes with this one multi-function digital video recorder.AHD(Analog High Definition)is new advanced technology on home security with 5 recordering modes.for your option:Analog / AHD / TVI / CVI / Network+Network. You can get HD quality video in each mode.
AHD-NH / 1080N HD See Bigger Wider and Sharper
AHD offers you a high difinition quality resolution:1080X960,monitoring has never been easier or clearer.
Unlike expensive 1080P NVR or POE system,AHD has lower price but HD quality.Youll get more than paid for.
P2P Cloud Access via Smart Handsets
Remote viewing Anywhere Anytime
Multiple Viewing options(HDMI 1080P Output)
AHD DVR Support VGA / HDMI output,you can customize your view from a TV or PC monitor.HDMI 1080P delivers high defintion images.
Instant Alert
Alert Function&Intelligent Motion Detection
Support onvif protocol
Supports Multiple Languages
Multi-language menus option up to 28 kinds of Language..
AHD-NH 1080N DVR Specifications
| System | Main processor | Hi3521 |
| Operating System | embedded Linux | |
| System Resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
| Interface | User interface | support 16-bit true color graphical menu interface and mouse operation |
| Preview screen | 1/4 | |
| Video Standard | PAL/NTSC | |
| Video | Video compression | H.264(High Profile); JPEG snapshot |
| Display quality | VGA,HDMI: HD | |
| Playback quality | AHD-H / AHD-M / D1 | |
| Encode capacity | 4*AHD-NH / 4*AHD-M | |
| Decode capacity | 4*AHD-NH / 4*AHD-M | |
| Multi-mode input | Analog input: 4*AHD-NH / 1080N(1080P) | |
| Digital input: 4*1080P | ||
| Hybrid input: 4*1080P(analog) + 4*1080P(network), | ||
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) | |
| Audio | Audio compression | G.711A |
| Intercom | support | |
| Record & playback | Record mode | manual>alarm>motion detection>timing |
| Playback | 4ch | |
| search mode | Time/calendar/event/channel search | |
| Storage & backup | Space occupation | Video 1080P: 20G-30G/ day*channel |
| 720P: 20G/day*channel | ||
| 960H:12~20G/ day*channel | ||
| Audio 691.2M/ day*channel | ||
| Video Storage | 3.5HDD&Network | |
| Backup mode | Network, U-disk, USB burner, SATA burner | |
| Interface | Video input | 4ch BNC |
| Video output | 1ch VGA, 1ch HDMI | |
| Audio input | 4ch RCA | |
| Audio output | 1ch RCA | |
| Network interface | RJ45 10M/100M | |
| PTZ control | 1*RS485, Support multiple PTZ protocols | |
| USB | 2* USB 2.0 | |
| HDD | 1*SATA port (Max 4TB/per) | |
| Wireless | 3G, WIFI (extension via USB) | |
| Other | Power supply | 12V2A |
| Power Consumption | <15W (without hard drive) | |
| Temperature | -15-+55 | |
| Humidity | 10%-90% | |
| Language | multi-language(English,Spanish,Russian,etc...) | |
| USB Mouse | included | |
| remote control | included | |
| Dimension | 250mm(length)*235mm(width)* 45mm(height) | |
| Weight | 1.5KG |
Camera specifacations
| Sensor | 1/3"inch IMX238 |
| Signal System | PAL/NTSC |
| Video Standard | AHD |
| DSP | NVP2431H |
| Camera type | High performance AHD Camera |
| Effective Pixel | PAL : 1280*960@25fps NTSC : 1280*960@30fps |
| Active Pixel | 1280*960 |
| Resolution | 1.3 Mega Pixel 960P |
| Video output | AHD/CVBS||PAL/NTSC |
| Minimum Illumination | 0.01Lux(F1.2) |
| Gama adjust | 0.45 |
| Lens | 3.6mm |
| IR LEDs Amount | 36pcs infrared LEDs |
| IR-CUT | Auto switch |
| IR Distance | 35M |
| Electric Shutter | 1/53~1/100000s |
| S/N Ratio | 50dB(min)(AGC closed) |
| 3D-NR | OFF/LOW/MID/HIGH |
| 2D-NR | OFF/LOW/MID/HIGH |
| HLC | Support |
| WHITE Balance | ATW/AWC-SET/Indoor/Outdoor/MANUAL |
| AGC | Level 0-15 |
| D-WDR | Auto |
| IP67 | yes |
| Day/Night | Auto,Color,B/W,Ext |
| Power Supply | DC 12V |
| Power Dissipation | 300mA |
| Operation Temperature | Temperature -25°F~122°F / -32°C ~60°C,Humidity less than 85%RH |
| Dimension | 18.4(L)*6.5(H)CM |
Camera Details
NOTICE: This camera must work with AHD DVR.Thank you .
1) Applying high performance sensor, the image is clear and delicate
2) Support IR-CUT dual filter switch, to achieve day and night monitoring, color is not partial or distortion
3) Analog HD 960P @AHD video output
5) Transmission distance up to 500 meters
6) Support ultra low illumination
7) Support automatic electronic shutter function, adapting different monitoring environment
8) IR distance : 35 meters
9) Camera lens : 3.6mm
- Day & Night Monitoring with Built-in IR-Cut filter
See more details with 3.6mm/6mm lens
Day & Night Monitoring with Built-in IR-Cut filter
- IP66 Professional outdoor weatherproof
Camera used high quality metal materials,can effectvely prevent rust.can be installed in almost any indoor or outdoor places.
