CCTV Security Cameras Product Store Choice Collections provide cctv camera,cctv system, spy camera,security surveillance 2018 Gift BOAVISION 5 Inch TFT LCD 1080P 4 IN 1 TVI AHD CVI Analog CCTV Tester Security Camera Tester Monitor VGA HDMI Input Audio Test. Get Discount Now! Only US $99.98/piece at this time. Hurry buy Now before back to normal price! Normal price US $142.83 or you can Check price now. Dont waste your time. Buy Now only in BOAVISION Official Store Trusted Seller Store!
Simply as you will get a ton of money, this goods is able to offer an automobile that needs to be very intriguing for you. The item magazine you obtain is certainly provide a reference for those of you who desire to find the goods you want.

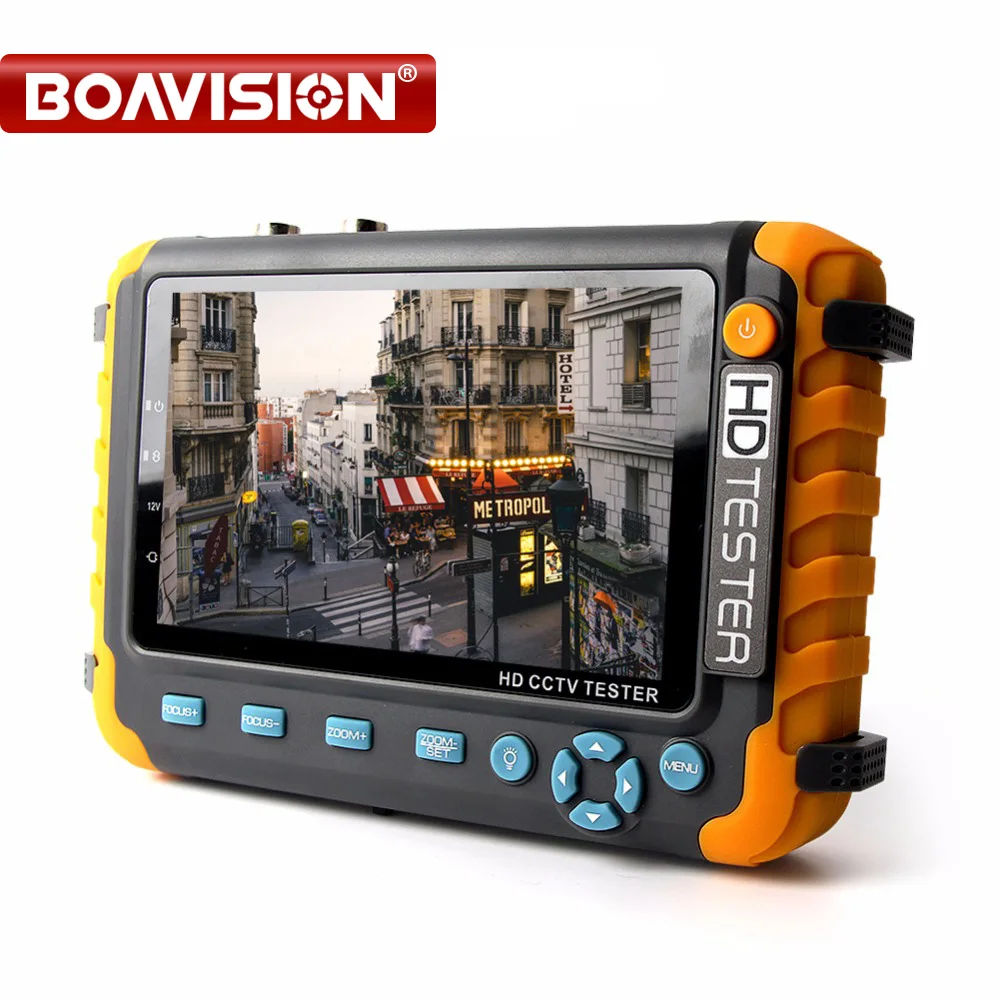

BOAVISION 5 Inch TFT LCD 1080P 4 IN 1 TVI AHD CVI Analog CCTV Tester Security Camera Tester Monitor VGA HDMI Input Audio Test
The 4 IN 1 Testerl support TVI CVI AHD Analog CVBS camera testing, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc;
Product overview:
The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, like TVI,CVI, AHD,Analog, CVBS. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, high precision digital multi-meter, LED lamp etc.
Key feature
* Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display,
* Support PAL/NTSC standard video signal. CVBS testing.
* PTZ controller
Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
* Image generator
Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
* DC12V 1A output power
Power the camera with DC12V (1A) power from the tester.
* Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
* Improvement cable test
UTP cable, telephone cable etc order and connectivity test, can save testing report
* VGA/HDMI input
Support 1920X1080VGA/HDMI 1.0 video input, HDMI or VGA is optional via switch.
* TVI camera test
HD TVI video surveillance testing, support 720p 25, 30, 50,60fps/ 1080p 25,30fps. When TVI signal input, the tester will display HD TVI camera image. (5MP 25,30fps Optional Choose)
* CVI camera test
HD TVI video surveillance testing, support 720p 25, 30, 50,60fps/ 1080p 25,30fps. When TVI signal input, the tester will display HD TVI camera image. (5MP 25,30fps Optional Choose)
* AHD camera test
HD video surveillance testing, support AHD 2.0 version, 720p 25,30fps/ 1080p 25,30fps. When AHD signal input, the tester will display the AHD camera image. (5MP 25,30fps Optional Choose)
* LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
Specification
| Support both PAL / NTSC format’s standard color bar output | |
| (Red, Green, Blue, White, Black, Grey) and testing image output | |
| UTP Cable Test | Display UTP cable connection status , cable type and |
| the sequence of wires as well as read the number of the test box. | |
| DC12V power output | Output DC12V1A power for camera |
| Audio input test | 1 channel audio signal input |
| Coaxial HD test | |
| TVI test | 1 channel TVI input(BNC interface), |
| support 720p 25 / 30 / 50 / 60fps, 1080p 25 / 30fps | |
| (5MP 25 / 30fps Optional Choose) | |
| CVI Test | 1 channel TVI input(BNC interface), |
| support 720p 25 / 30 / 50 / 60fps, 1080p 25 / 30fps | |
| (5MP 25 / 30fps Optional Choose) | |
| AHD Test | 1 channel AHD input (BNC interface）, |
| support AHD 2.0 version, 720p 25 / 30fps, 1080p 25 / 30fps | |
| (5MP 25 / 30fps Optional Choose) | |
| POWER | |
| Power Adapter | DC 5V（1.5A） |
| Battery | Built-in 18650 2600mA battery X 2, |
| After charging 3-4 hour, working time lasts 11 hours | |
| General | |
| Language | English and Chinese optional |
| Working Humidity | 30%-90% |
| Dimension | 194mm x 112mm x 48mm / 540g |
Packing List
1* HD 1080P Coaxial Tester (5MP Tester Optional Choose)
1* Adapter DC5V 1.5A（with USB cable)
2* International Standard 18650 2600ma battery
1* BNC cable
1* RS485 connector
1* Power output conversion cable
1* Audio cable
1* Lanyard
1* Tool bag
1* Instruction Manual
 | ||||
 | ||||
