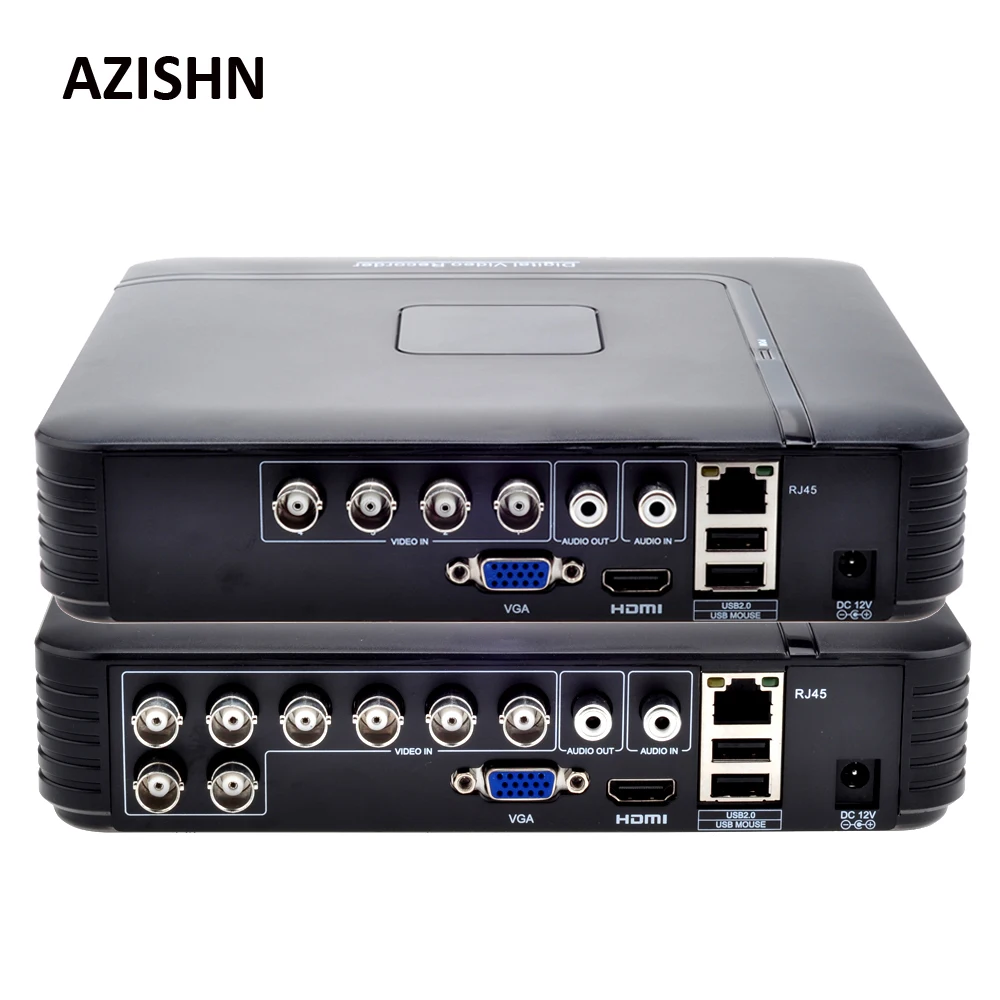

CCTV Security Cameras Product Store Choice Collections provide hidden camera,camera system,security camera 2018 New AHD 1080N 4CH 8CH CCTV DVR Mini DVR 5IN1 For CCTV Kit VGA HDMI Security System Mini NVR For 1080P IP Camera Onvif DVR PTZ H.264. Get Discount Now! Only US $26.47/piece at this time. Hurry buy Now before back to normal price! Normal price US $35.29 or you can Check price now. Dont waste your time. Buy Now only in AZISHN Official Store Trusted Seller Store!
• H.264 video compression, 1080P/720P / 960H HD resolution, VGA & HDMI output.
• 720P / 960H/1080P
• Backup Via USB Drive + 3.5 Hard disk (up to 6T ) ( NO Hard disk in the package)
• 1 Audio in / 1ch audio out + 2pcs USB Port
• P2P (cloud), no need any port fowarding for remote monitor anymore.
• Smartphone, PC remote surveillance. APP Name:xmeye
• Motion detection and email alarm
• Support Multi Langauages English,Russian,Italian,Portuguese,Spanish,French,German.,etc...
• 5 In 1Support AHD/CVBS/TVI/CVI/IP cameras
• Motion Detection & Email Alert/Record
• If you connect this DVR to your IP cameras,please make sure your IP cameras support onvif2.0
| | A1004NS | A1008NS | |
| System | Main processor | Hi3515C | Hi3520D |
| Video compression | H.264(High Profile) | ||
| Operating System | Embedded Linux | ||
| System Resources | Simultaneous multi-channel real-time recording, playback, network operation, | ||
| USB backup | |||
| Interface | User Interface | Support 16-bit true color graphical menu interface and mouse operation | |
| Preview Screen | (take analog as an example) | ||
| 1/4/ | 1/4/8/9 | ||
| Video | vdieo standards | PAL(625line,50f/s);NTSC(525line,60f/s) | |
| display quality | Monitor:D1,VGA,HDMI:HD | ||
| playback quality | Max.1080P;under analog mode | ||
| AHDL(960H)/D1/HD1/CIF/QCIF | |||
| Channel Type | AHDNH/1080N 4CH | AHDNH/1080N 8CH1080P 4CH | |
| AHDM/720P 4CH | AHDNH/1080P 2CH + IP 1080P 2CH | ||
| AHDL/960H 4CH | AHDNH/1080N 4CH + IP 960P 4CH | ||
| AHDM/720P 2CH + IP 720P 2CH | IP1080P16CH/9CH | ||
| IP1080P 8CH/4CHIP 960P 12CH | IP 960P16CH | ||
| IP720P 8CH/4CH | IP 5M 4CH | ||
| Motion Detcet | Zones: 192(16*12)detection zones,sensitivity: multi-level sensitivity (Only local channels) | ||
| Audio | Audio compression | G.711A | |
| Intercom | support | ||
| Record & playback | Record mode | manual>alarm>motion detection>timing | |
| local playback | 1~9 ch playback,Under analog mode 8*D1,up to | ||
| 4 ch playback(4*D1@25fps) | |||
| search mode | Time/calendar/event/channel search | ||
| Storage & backup | Space occupation | Video CIF:4~5G/ day*channel D1:8~10G/ day*channel | |
| 720P 20G/day*channel;960H 12~20G/day*channel; | |||
| Audio:691.2M/day*channel | |||
| Record Storage | 3.5HDD&Network | ||
| Backup mode | Network backup,USB HDD, USB writer | ||
| Interface | Video input | 4ch BNC | 8ch BNC |
| Video output | (1ch VGA, 1ch HDMI )for 4ch | (1ch VGA, 1ch HDMI) for 8ch | |
| Audio input | 1ch RCA | ||
| Audio output | 1ch RCA | ||
| Alarm input | No | ||
| Alarm output | No | ||
| Network interface | RJ45 10M/100M | ||
| PTZ control | No | ||
| USB | 2* USB 2.0 | ||
| HDD | 1*SATA port (Max 4TB/per) 3.5”HDD | ||
| Wireless | No | ||
| Other | Power supply | 12V/2A | |
| Dimension | 200mm(length)*200mm(width)* 42mm(height) | ||
| Weight | 0.85KG | ||
Package includes:
1 x 4CH/8CH AHD DVR
1 X USB Mouse
1 X Power Adapter
1 x User manual (English)
(without CD,it can be downloaded online)
HDD is not included,Please choose the suitable HDD accroding your camera numbers and record time.
| HDD Capacity | Record Time (Days) | |||||
| 1.0MP Camera | 1.3MP Camera | 2.0MP Camera | ||||
| 4CH | 8CH | 4CH | 8CH | 4CH | 8CH | |
| 1TB | 10 | 5 | 8 | 4 | 3 | 1.5 |
| 2TB | 20 | 10 | 16 | 8 | 6 | 3 |
| 3TB | 30 | 15 | 24 | 12 | 9 | 4.5 |
| 4TB | 40 | 20 | 32 | 16 | 12 | 6 |
