CCTV Security Cameras Product Store Choice Collections provide remote cctv,security camera Great Sale Smar Newest Mini 4CH POE NVR 48V 1080P HDMI Full HD Network Video Recorder CCTV System For POE Camera Home Security ONVIF P2P. Get Discount Now! Only US $57.51/piece at this time. Hurry buy Now before back to normal price! Normal price US $71.00 or you can Check price now. Dont waste your time. Buy Now only in smar Official Store Trusted Seller Store!
You may be lucky because can get items best cost only! Immediately purchase items now!

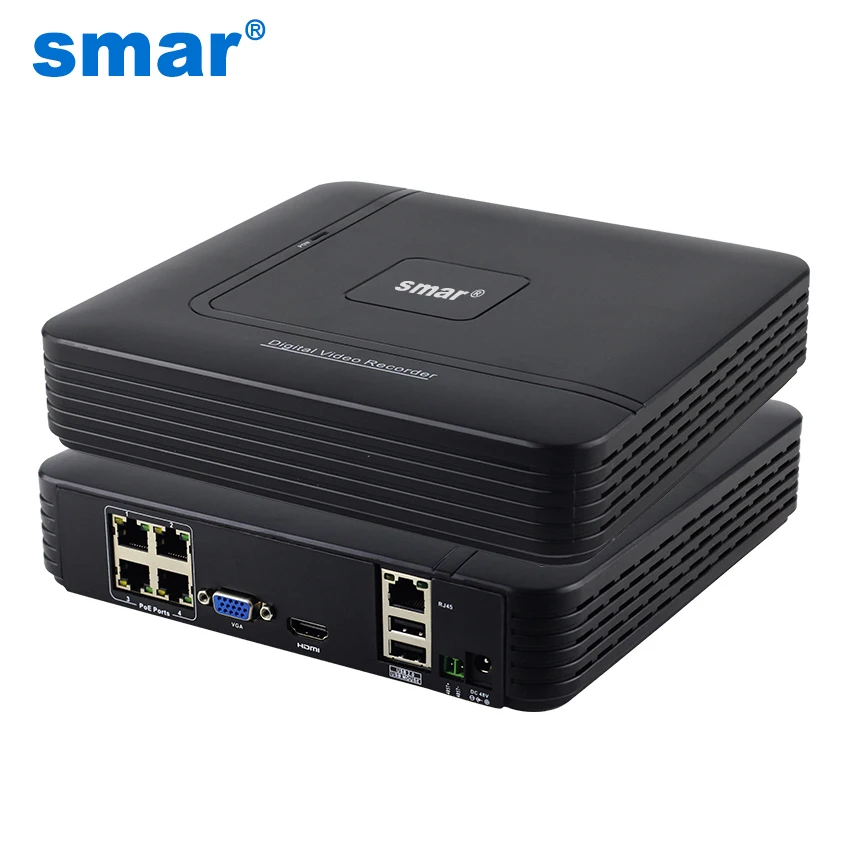

Smar Newest Mini 4CH POE NVR 48V 1080P HDMI Full HD Network Video Recorder CCTV System For POE Camera Home Security ONVIF P2P
1) Support 4CH POE power supply. No need to do cabling for power.
2) Support data exchange. No need to connect extra switch.
3Up to 100 meters of transmit distance
Specifications
1.H.264 High profile compression algorithm ideal for network NVR
2.Realtime live display up to 4 IP cameras
3.Pentaplex function:live,recording,playback,backup & remote access;
4.Support Dual-streams,to make mobile monitoring very easy,flexible for network transmission
5.Multiple control methods:IR remote controller,USB mouse and front panel press button
6.Smart video detection:motion detection,video blind,video loss
7.Smart camera settings:privacy masking,camera lock,color setting,and tittle display
8.Easy backup methods: USB devices,remote network and client software backup
9.Alarm triggering screen tips,buzzer,PTZ preset,e-mail &FTP upload
10.Smart HDDs Management:non-working HDD hibernationg,HDD faulty alarm,Raid function
11.Support DHCP / PPPOE / FTP / DNS / DDNS / NTP / Email alarm / IP right management / IP search / network alarm center functions, support web client, standalone client and SDK..
12.Enable strong multi-way synchronization with max 1 channel playback, realize the zero-delay between playback channels
13. Support cloud(xmeye.net),no need to do router mapping, just 1 step go to internet with cloud technology
14. POE NVR, 1PCS LAN Port, 4PCS POE Ports.
| System | Model | SAE3000-N1004FN |
| Main Processor | HI3515 | |
| Operating System | Embedded LINUX | |
| System Resources | Pentaplex function:live,recording,playback,backup & remote access | |
| Operation interface | 16-bit true color graphic menu operation interface, support mouse operation | |
| Preview | 1/4 | |
| Video | Video Standards | PAL 625 line,50 f/s;NTSC 525 line,60 f/s |
| Video Compression | H.264 High profile | |
| quality supervision | Monitor: D1; VGA: high definition; HDMI: hd | |
| Video Input(IP) | 4*1080P/4*960P | |
| Video Recording | 1080P/960P/D1 | |
| Motion Detection | Zones:396(22*18)detection zones, Multi-level sensitivity can be set (Local channels only) | |
| Audio | Audio Conpression | G711A |
| Bidrectional Talk | N/A | |
| Record &Playback | Recording Mode | Manual>Alarm>Video Detection>Continuous |
| Playback | 1/4channel playback simultaneously | |
| Search Mode | Time/Date,Alarm,Motion Detection & exact search(accurate to second) | |
| Storage & Backup | Space Occupation | Video: 1080p 80G/day/ch, 720p 26G/day/ch, 960H 24G/day/ch, D1 16~20G/day/ch ; Audio: 691.2M/day/channel |
| Video saved | Local HDD,network | |
| Backup Mode | Network download/Flash stick/USB/SATA | |
| Interface | Video Input(BNC) | N/A |
| Video Output | 1ch VGA output, 1ch HDMI | |
| Audio Input | N/A | |
| Audio Output | 1 channel RCA | |
| Alarm Input | N/A | |
| Relay Output | N/A | |
| Net Interface | RJ-45 10M/100M | |
| PTZ Control | N/A | |
| 3G/WIFI | NO | |
| USB Interface | 2* USB2.0 port for mouse and backup | |
| Hard Disk | 1 SATA port(Max 1 x 3T)(HDD not included) | |
| Environmental | Power Supply | 48V/1.5A |
| Dimension/Netweight | 30*27*10cm | |
| Weight | 1.1KG |
Packing List:
1* Mini 4CH POE NVR
1* 48V Power Adapter
1* USB Mouse
1* User Manual
Not include HDD, support 3.5" SATA HDD ,Max support 1*6TB HDD.
We can Recommend 3.5" SATA Interface 1TB/2TB/3TB/4TB HDD For you ,please click below picture:
HUAWEI HASS CHIP
HuaWei Hass Chip is very good quality Chip in the world, This chip can work many years never get any problem. Now have more than 90% DVR use the HuaWei Hass Chip in the world.
(Note: When you see the Chip of DVR isnt Hass Chip, And its XM Chip, Please dont panic, XM is agents of HuaWei , So used their own model to replace the Hass model).
Advanced Motion Detection Recording
The motion detection recording function:when motion is detected the DVR will save the footage into hard disk without missing any important events. You can even ensure that false alarms are avoided by setting the motion detection "mask"to block areas with constant movement.
Note:Our DVR Motion Detection Function only Support the following Brand of IP Camera:
As: XM, Dahua, Safer, HIVT, Part of HIKVISION. And if your IP Camera is other Brand, Cant used the Motion Detection Function with Our DVR. ( Please note before when you buying)

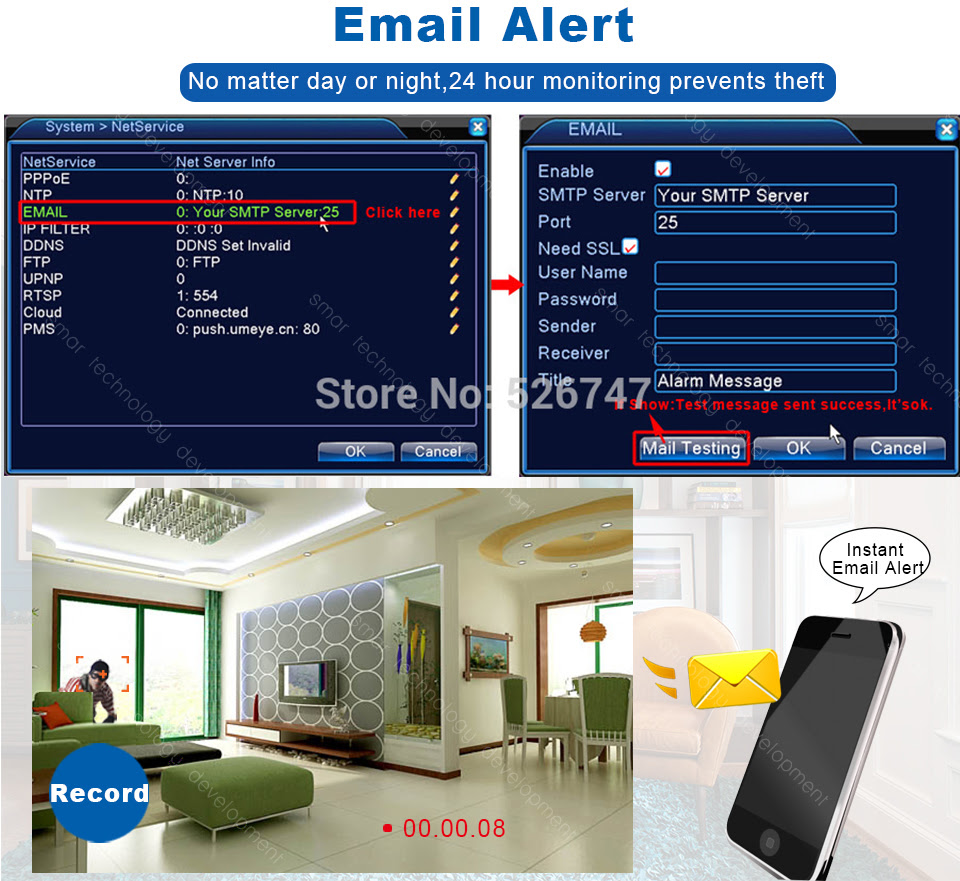

Please note: SMTP Server only support these Email Box:126,163,gmail,sina,139,156,qq format, And the recipient can set up 5 vaild mail.
Mail Testing: Test message sent success(Its OK)
Mail Testing: Failed to connect to server.(Its failure)
This Network Video Recorder Support ONVIF protocol, Its can compatible with our own brand of the network video products, but also compatible with other brand of the network video products for Onvif, It can implement multiple devices connected to each other, mutual communication.
(Note: We recommend that when you buying the Network video recorder, also buying the IP Camera from our store, Because they have perfect private agreement between them and docking, it can fully display products all of the functions. If you have buying the IP Camera from other manufacturers, then connect to our network video recorder through ONVIF, however,you will find that some function of the IP Camera cant work normaly,, such as: motion detecting Or audio and video are not synchronized and so on; Why? Because ONVIF protocol cannt be compatible with all functions; Please note that before you buying.)
PC & Smartphone Remote View
Using the latest Cloud technology, Anytime, Anywhere... You Can Remote View via Smart Phones, Tablets, Notebook or PC.
CMS For Local Review & Record
Default IP Address: 192.168.1.9
Username: admin
Password: null (empty)
Default Username of CMS: super
Password: null (empty)
When you log in to CMS for the first time, Device list is empty, Please add your device at "System->Device Manager"
(As usual, DVR default IP address will be 192.168.1.9, but if your local Internet IP address with the same our default IP address, You must be changed the default IP address, you can edit the IP address of DVR by CMS.)
Website Interface Via IE
Please login your Google or IE or Firefox browser,
Then input default address 192.168.1.9 in your browser
Username:amdin
Password:null (empty)
Remind: If you use the software first time, you need to install a plugin in your computer.
P2P Via Cloud XMEYE.NET
If you want to remote view thourh Internet
Please login your Google or IE or Firefox browser
Then input Website of P2P Cloud: www.xmeye.net
Input your P2P ID, and your password, login in.
(If you want to remote visit the DVR through P2P, At first, you need open the "www.xmeye.net", If your computer cant open this website, please install all the Plug-ins in your computer, otherwise, Otherwise, you will not be able to remotely access this DVR, Please note).
How to remote view through Mobile phone?
1.You must be installed a APP in your mobile phone,where to find or download APP?
2.Please used your mobile phone to scan the following QR code.(iPhone APP,Android APP)
Item Recommend:
1.POE NVR must work with POE IP Camera, We can recommend that you used professional 720P 960P 1080P POE IP Camera and 4CH/8CH POE Switch for you. Typically, More than 90% of buyers likes the following products:
2.Recommend the High Order, High Evaluation ,Good Price of the product to you is our responsibility, if you like these, Please add them to your shopping list:
 | |||
| | |||
| | |||
| | |||
| | |||
| | |||
