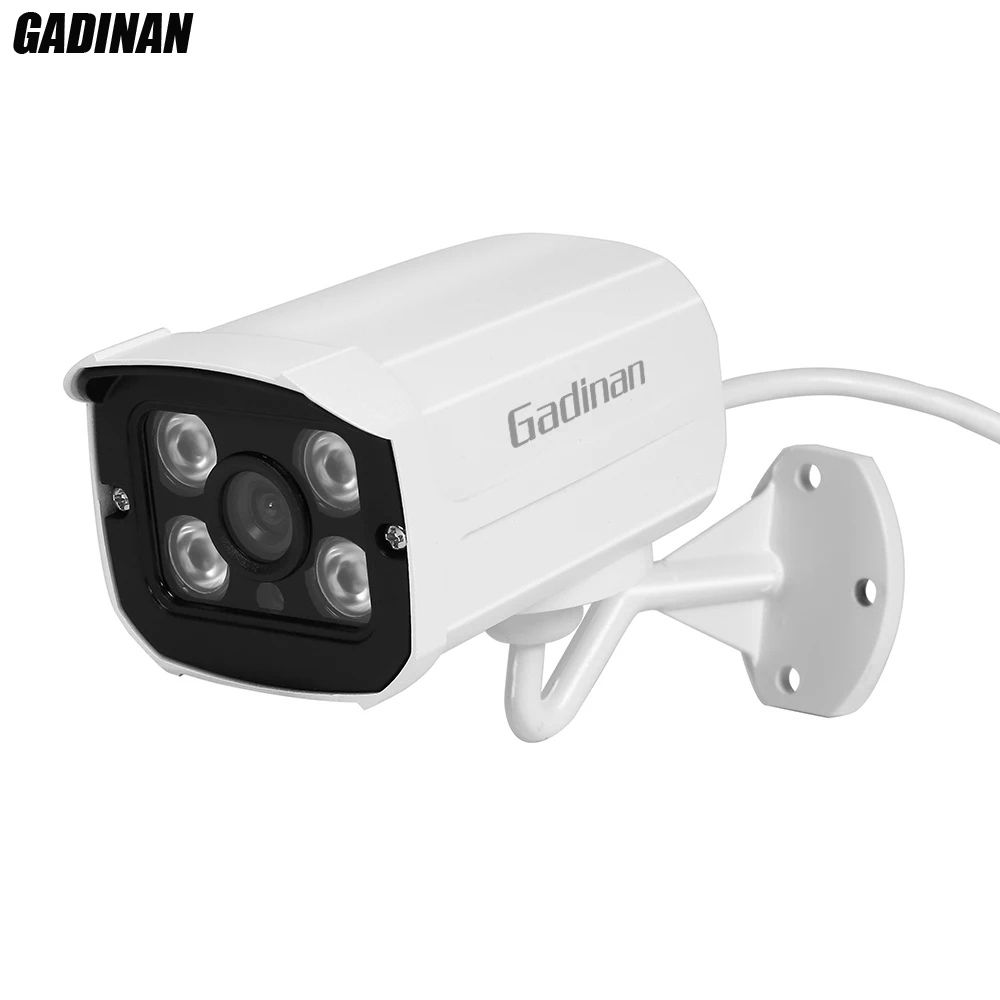

Great Limited GADINAN Onvif H.264 720P 960P / H.265 1080P IP Camera Metal Bullet Outdoor Security Waterproof IP Cam CCTV 4pcs Array IR Leds

Great Limited GADINAN Onvif H.264 720P 960P / H.265 1080P IP Camera Metal Bullet Outdoor Security Waterproof IP Cam CCTV 4pcs Array IR Leds remote cctv Rating: 3.5 out of 5

CCTV Security Cameras Product Store Choice Collections provide cctv system,hidden camera,security camera Great Limited GADINAN Onvif H.264 720P 960P / H.265 1080P IP Camera Metal Bullet Outdoor Security Waterproof IP Cam CCTV 4pcs Array IR Leds. Get Discount Now! Only US $18.50/piece at this time. Hurry buy Now before back to normal price! Normal price US $21.77 or you can Check price now. Dont waste your time. Buy Now only in Trusted Seller Store!

These days this goods is actually budget-friendly for almost every person and also its an extremely good buy for the money.

Features:

1.0MP 720P;1.3MP 960P;2.0MP 1080P

XM510 For 720P and 960P ; HI3516CV300 For 1080P

Support 3D DNR, DWDR;

Support ONVIF;Support Third-party NVR;

Support for mobile video surveillance(iOS,android);

Support Web, CMS, platform management software MYEYE;

Support cloud service, network penetration, alarm information pushed.

Model	720P(H.264)	960P(H.264)	1080P(H.265/H.264)
System structure	Embedded RTOS,dual-core 32bit DSP( XM510 ),pure hard compression ,watch dog		Embedded RTOS,dual-core 32bit DSP( Hi3516CV300 ),pure hard compression ,watch dog
Sensor	1.0M 1/4" H62 CMOS sensor ,color 0.1Lux’F1.2,black/white 0.01Lux’F1.2	1.3M 1/3" H65 low illumination CMOS sensor ,color 0.01Lux’F1.2,black/white 0.001Lux’F1.2	2.0MP 1/2.7" F22 CMOS sensor color 0.1Lux’F1.2,black/white 0.01Lux’F1.2
Video compression	H.264,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable H.265/H.264,support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable
Image output	Main stream:1280*720, 704*576;sub-stream: 704*576;	Main stream: 1280*960,1280*720;sub-stream: 704*576;	Main stream:1920*1080,1280*720 sub-stream: 704*576;
Noise reduction	Support 2D/3D
lens	3.6mm
Storage	Via PC/Mobile Phone/NVR With HDD
Infrared light	4pcs Array IR Leds
Wide dynamic	Support digital
Network interface	1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
Singal interface	One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
Auto iris	No
SD Card	Unsupport
Reliability	Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65’C high temperature stable and reliable testing (including mounted machine testing)
Other function	Waterproof
ONVIF	Support
Mobile monitoring	Support multiple mobile monitoring(iOS,Android)
Power	DC12V/2A input, power consumption:≤3W
Dimension	10.1*6.8*6cm

Package Includede:

1X Mini IP Camera

(Note:only have 3.6mm lens,have not other lens)

If you choose 1080P camera, it is recommended to use our H.265 NVR,

if other manufacturers of H.265 NVR may not be compatible, then it runs H.264 mode.

Note: Please use or power supply, packaging does not include the power supply.

​Q & A

1, IP camera default IP address:192.168.1.10User name:admin,password:empty(null)If there is a problem with "Can not find the Device", it is the default ip address is not in the same network segment as your router.Please click "Edit Device" to change the cameras ip address,For example, if your routers ip address is 192.168.0.1, then you need to change the cameras ip address to 192.168.0.XX."DeviceManage" It can find and change the IP address, upgrade the firmware.2, P2P website: "www.xmeye.net" ,please use IE and install ActiveX,only IE supports Multi Language.Chrome,Safari just support Chinese .then please input your P2P ID,user name and password to login and preview.Access to the IPC through the web, only one screen can be displayed. There are multiple IPC, please use client software to manage(such as: CMS VMS SNVR) 3,The cameras port information.ONVIF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567;E-mail default port 25; SLL protocol Port 465.4,Does the cameras can be compatible with other manufacturers NVR?Please confirm whether other manufacturers NVR support onvif protocol.Our cameras onvif protocol is onvif Profile S, does not support HTTPS protocol;Auto focus camera, other manufacturers NVR can only zoom, can not focus.5, The camera all supports Motion Detect,FTP,Email alarm, RTSP.A,How to set up motion detection?Access to IPC via IE (or CMS software), device configuration - alarm function - motion detection - on and save.B, About FTPFTP upload video and pictures, pictures will always upload, video files larger, after the alarm, the video file will be completed to upload.We suggest the Sever-U and FileZilla FTP Server to upload the video or image.C,For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) .D, RTSP URL for VLC media Player :RTSP port: 554rtsp: // (IP): (PORT) / user = (USER) & password = (PWD) & channel = (Channel) & stream = (Stream) .sdp? Real_streamExample:rtsp: //10.6.10.25: 554 / user = admin & password = & channel = 1 & stream = 0.sdp? Real_stream (stream = 0 primary stream 1 auxiliary stream) If it is through the public network need to RTSP port open (default is 554), the port in the network service-RTSP can be set6, About DDNSMapped media TCP port: 34567 and HTTP port: 80 (Note: mapping need to be changed to non-80)Note: The two ports in the network settings can be viewed, can be modifiedWhat domain names are supported?- CN99 / DynDns / Oray / NO-IP / MYQ-SEE

1,View via PC

Install the CMS(CMS for Windows,VMS for Mac) ( Software in the CD ,or can download online,need contact us )

You can select the language(18 languages)

How to watch via CMS:

How to find "Serial ID" (very important)

2,View via web:

Local login, 192.168.1.10 (camera default IP address)(Cloud website:www.xmeye.net)

3,View via Phone(iOS and Android):

Find "XMEye" in Apple APP or Android Market

Horizontal screen:
