CCTV Security Cameras Product Store Choice Collections provide security surveillance,cctv camera Wonderful Promotion 1 input 2 output 2 Port SDI Splitter HD-SDI 3G-SDI Splitter Extender AV Repeater BNC Camera CCTV 3G/HD/SDI 1x2 1080P. Price at this time US $31.99/piece. Check price now to get discount! Dont waste your time. Buy Now only in KOQIT Store Trusted Seller Store!

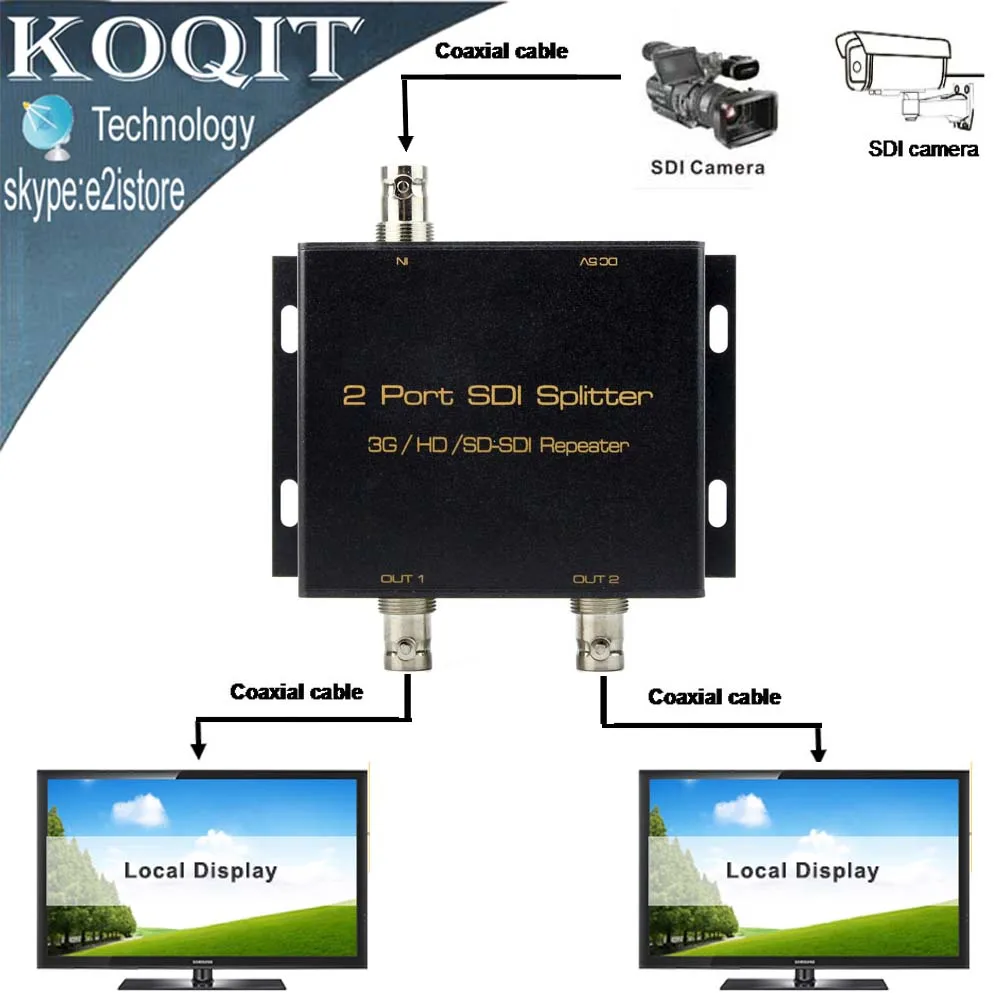

The 2 Port SDI Splitter can easily distribute one SDI signal to two SDI Compliant Displays without any loss of signal, distortion and delay. It supports SD-SDI,HD-SDI and 3G-SDI format signals; also it can do amplify to the SDI signal.

FEATURES:

1.One Signal distribute to twoSDI signal out 2.Support SD-SDI, HD-SDI and 3G-SDI Video Format 3.SDISupports1080P/1080I/720P/576I/ 480I Video Resolution 4.Support SDI transmissionSpeed: SD-SDI:270MbPs,HD-SDI:1.485GbPs and 3G-SDI: 2.97GbPs 5.Supported Max Cable Length(SYV-75-5):SDsupports up to 400m, HD supports up to 200m, 3G supports up to 80~100m(Note:The cable length will depend on the cable spec) 6.Support deep color 8bit,10bit, 12bit 7.Support up to 3G-SDI 8.Audio and Video OutputSimultaneously 9.Support Clock Recovery 10.No Any Drive Need, Support Hot-Plug, Plug and Play 11.Wide voltage input, It can support DC 5V~ 12V input INSTRUCTIONS: 1.To use one coaxial cable toconnect the SDI source with the SDI Input port of the splitter 2.To use the coaxial cable toconnect the SDI display with the SDI output port of the splitter 3.To connect the power adaptorwith the SDI Splitter SPECIFICATION: 1.Support SDI Format: SD-SDI,HD-SDI and 3G-SDI 2.SDI resolution: 1080P/1080I/720P/576I/ 480I 3.Support video color format: 8bit/deep color 10bit, 12bit 4.Audio Signal: SDI Built-in 5.SDI baudrate: 270Mbps, 1.485Gbps and 2.97Gbps 6.Coaxial cable Characteristic impedance: 75Ω 7.Max working current: 300mA/DC 5V 8.Power adapter format Input: AC (50HZ, 60HZ) 100V-240V;Output: DC5V~12V/2A 9.Weight: 143g 10.Dimension (LxWxH): 68x93.8x28 (mm) NOTES: 1.The machine should be placed at the spot far from the Damp,High-Temperature, Dusty, Erosive, and oxidative environment. 2.All parts will be free from the strong shake, hit, fall. 3.Touching the power adaptor with the wet hands is prohibited. 4.Pls hold the power adaptor head and do not pull the powercord when cut off from the socket. 5.Pls turn the power off when the machine is not used for longtime. 6.Pls do not open the cover and do not touch the inside parts. 7.Pls use the original factory power adaptor. Package Includes: 1 x 2 Port SDI Splitter 1 x 5V Power Adaptor

SPECIFICATIONS:
Support SDI Format………………….…………………………….SD-SDI/HD-SDI and 3G-SDI
SDI resolution…………………………………………..….……...... 1080P/1080I/720P/576I/ 480I
Support video color format ……………………...…………...….……..8bit/deep color 10bit,12bit
Audio Signal……………………………………………………………………………… SDI Built-in
SDI baud rate…………………...……………………..……270Mbps/1.485Gbps and 2.97Gbps
Coaxial cable Characteristic impedanc…………………………………………………………75Ω
Max working current……………………………………………………..…………....300mA/DC 5V
Power adapter format……….…Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V~12V/2A
Operating Temperature range……..…………….……….…………………………… -10 to +55
Storage Temperature range…………………………………………………………… -20 to +60
Operating Humidity range…………………………….….……….10 to 90%RH (No Condensation)
Storage Humidity range……………………………..….……….…5 to 95%RH (No Condensation)
Dimension (L x W x H) ……………………………….…. ………………………. 68 X93.8X28 (mm)

Weight…..………………………………………………………..………………….. ……………143g
