CCTV Security Cameras Product Store Choice Collections provide cctv system,cctv camera Great Deals Outdoor Heavy-duty 500M Laser Speed Dome PTZ Camera HD-SDI With x 36 Auto zoom Suitable for Public Vehicle forest grassland. Get Discount Now! Only US $1440.67/piece at this time. Hurry buy Now before back to normal price! Normal price US $1778.60 or you can Check price now. Dont waste your time. Buy Now only in RUBY SECURE STORE Trusted Seller Store!
Outdoor Heavy-duty 500M Laser Speed Dome PTZ Camera HD-SDI With x 36 Auto zoom Suitable for Public Vehicle forest grassland
Main Features:
Video formats: 1080P60/50,1080P30/25,1080i60/50,720P60/50
Humanized design, easy installation& maintenance.
Laser IR LED range more than 500 meters.
128 presets (titles can be set); Tour is based on presets, speed & park time of presets can be set.
8 programmable zone with titles,4 pattern( patterned scan),record time no less than 180 seconds.
4 scan, support scan between left and right limit at an appointed speed.(at this time dome camera still support zooming, tilt operation
Built-in OSD menu, enable changing and displaying Dome information and parameter, setting and calling presets, tour, scan, pattern, camera mode, etc.
Park time function, can auto-call presets or start-up tour, pattern, scan and display areas after dome idle for a period of time
Real time function, preset, scan etc action runs based on time sections pre-setting by OSD menu.
Temperature display function, can survey the temperature inside the dome.
Display horizontal and vertical position of the PTZ camera, and the multiples of the lens.
Privacy masking zone, you can set masking frame when there is a private zone display on screen.
Communication (support Rs485, Manchester, BI-PHASE code, coaxial video control).
IP66 all-day defend cover, built-in constant temperature device.
Built-in TVS4000V lightning-proof, surge-proof and wave-proof.
Optional freezing rain-proof function (additional power consumption 25W).
Working temperature -40 ~ +60 Centigrade degree
Technical Parameter:
| Sight system | 1080P60/50,1080P30/25,1080i60/50,720P60/50 |
| Sensor | 1/2.8 Type Exmor CMOS sensor |
| Scan system | progressive scanning |
| Effective pixels | 2.38 MP |
| Lens multiples | 36X |
| Scan frequence | Pan 15.625KHz/Tilt50Hz |
| Resolution | 1920*1080、1280*720 |
| Mini illumination | Color 1.0 Lux, B & W 0.05 Lux |
| Focus length | W4.6mm~ T165.6mm |
| Angle of view | W61.1°/ T2.1° |
| Iris | Auto/ Manual |
| Focus | Auto/ Manual |
| White balance | Auto/Indoor/Outdoor/OPW/Atw/Manual |
| Back light compensation | Off/ On |
| S/N ratio | ≥50dB |
| Electronic shutter | 1/60~1/0,000s |
| Video output range | LVDS:1.0±0.2VP-P |
| Video output interface | Female BNC |
| Wide dynamic range | Off/On |
| Privacy masking zone | 24 |
| PTZ Parameter | |
| Manual Pan Speed | Pan：0.4°- 80°/s |
| Manual Tilt Speed | Tilt：0.4°- 60°/s |
| Preset speed | Pan 80°/s，Tilt 60°/s |
| Rotation | Pan 360° continuously, tilt 180° (-90° ~＋90°), with auto-flip |
| Wiper function | Auto |
| Speed proportion | Auto-adjust speed per the focus length |
| Preset | 128presets titles can be edited |
| Auto Flip | Tilt down 90°,with auto-flip 180° |
| Scan | 360°Progammable ，4 auto scan route |
| Display Zone | 8,With titles |
| Sync | Internal |
| Decoder | Built-in |
| Interface | Female BNC |
| Romote controlling | RS485 |
| Built-in protocol | PELCO-D PELCO-P KALATE AD PHILIPS,etc |
| Baud rate(RS485) | 2400/4800/9600/19200 bps |
| ID range | 1～255 |
| Others | |
| Laser Night Vision | 500Meters |
| Environment temperature | -40℃～+60℃ |
| Environment humidity | 0～95%（non condensation） |
| Protection grade | IP66, water proof housing,4000V ligtning proof surge proof |
| Power supply | AC24V |
| Power consumption | 50W |
| Product Dimension(HXΦ) | 411*210*269mm(H) |
| Net Weight | 9.3kg(12kg with absorber) |
| Packed Dimension | 53x43x28CM |
| Gross weight | 14KG |
Product Size:

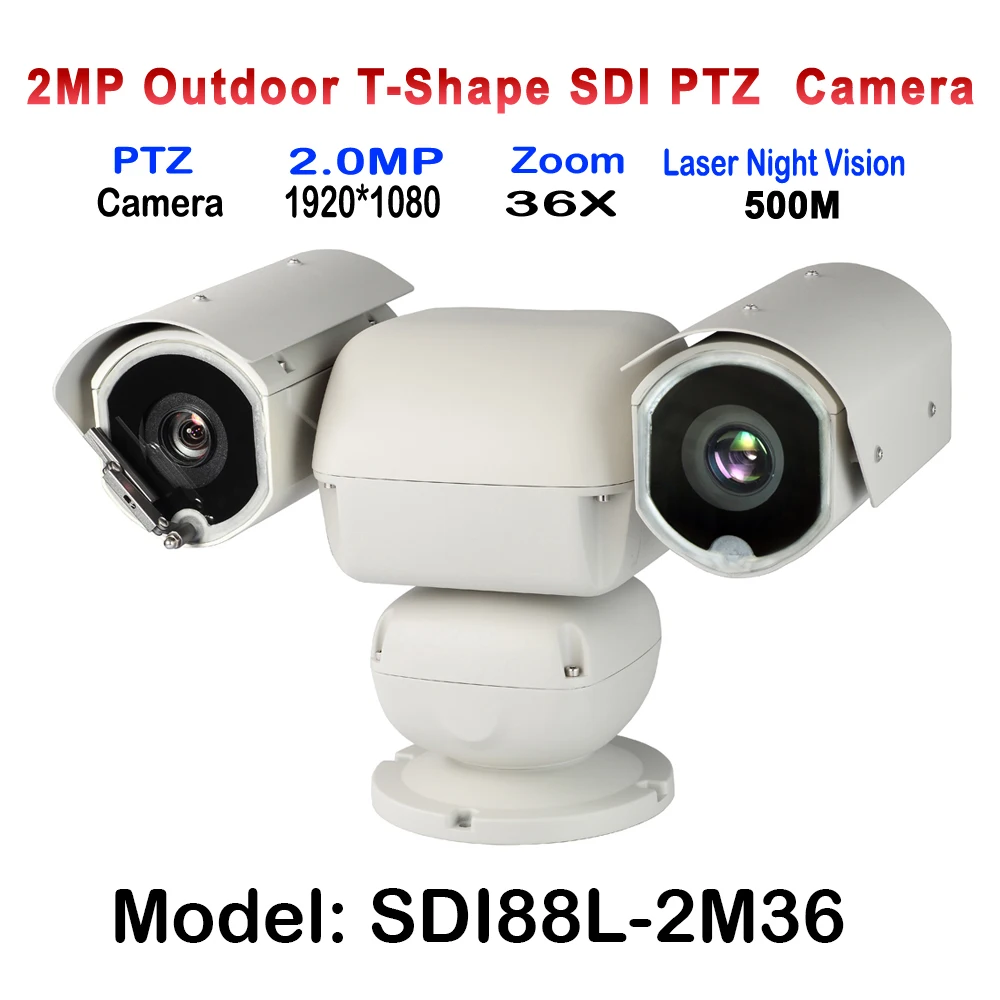

Product Photo:
Shipping notes:
1)All free shipping products, The Seller shall be responsible for shipping cost from shenzhen china to destination place. China tariffs, relates to handle fees, export declaration fees or customs clearance fees is for seller s account.
2)But the arrival of the goods at the destination, Buyer import tariffs, relates to the operation fees, customs fees or customs clearance fees is at buyers cost. if there are special requirements, please specify in the order message, we will do declaration invoice according to the special needs of buyers.
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Great Deals Outdoor Heavy-duty 500M Laser Speed Dome PTZ Camera HD-SDI With x 36 Auto zoom Suitable for Public Vehicle forest grassland
