Hot Clearance HD 1080P 4CH CCTV Multiplexer Analog AHD TVI Video Quad Screen Processor HDMI VGA Monitor Output 2 BNC Analog CVBS Video Outputs

Hot Clearance HD 1080P 4CH CCTV Multiplexer Analog AHD TVI Video Quad Screen Processor HDMI VGA Monitor Output 2 BNC Analog CVBS Video Outputs remote cctv Rating: 2.7 out of 5

CCTV Security Cameras Product Store Choice Collections provide hidden camera,security camera,cctv system Hot Clearance HD 1080P 4CH CCTV Multiplexer Analog AHD TVI Video Quad Screen Processor HDMI VGA Monitor Output 2 BNC Analog CVBS Video Outputs. Get Discount Now! Only US $91.54/piece at this time. Hurry buy Now before back to normal price! Normal price US $105.22 or you can Check price now. Dont waste your time. Buy Now only in HSmart HD Professional Security Store Trusted Seller Store!

HD 1080P 4CH CCTV Multiplexer Analog AHD TVI Video Quad Screen Processor HDMI VGA Monitor Output 2 BNC Analog CVBS Video Outputs

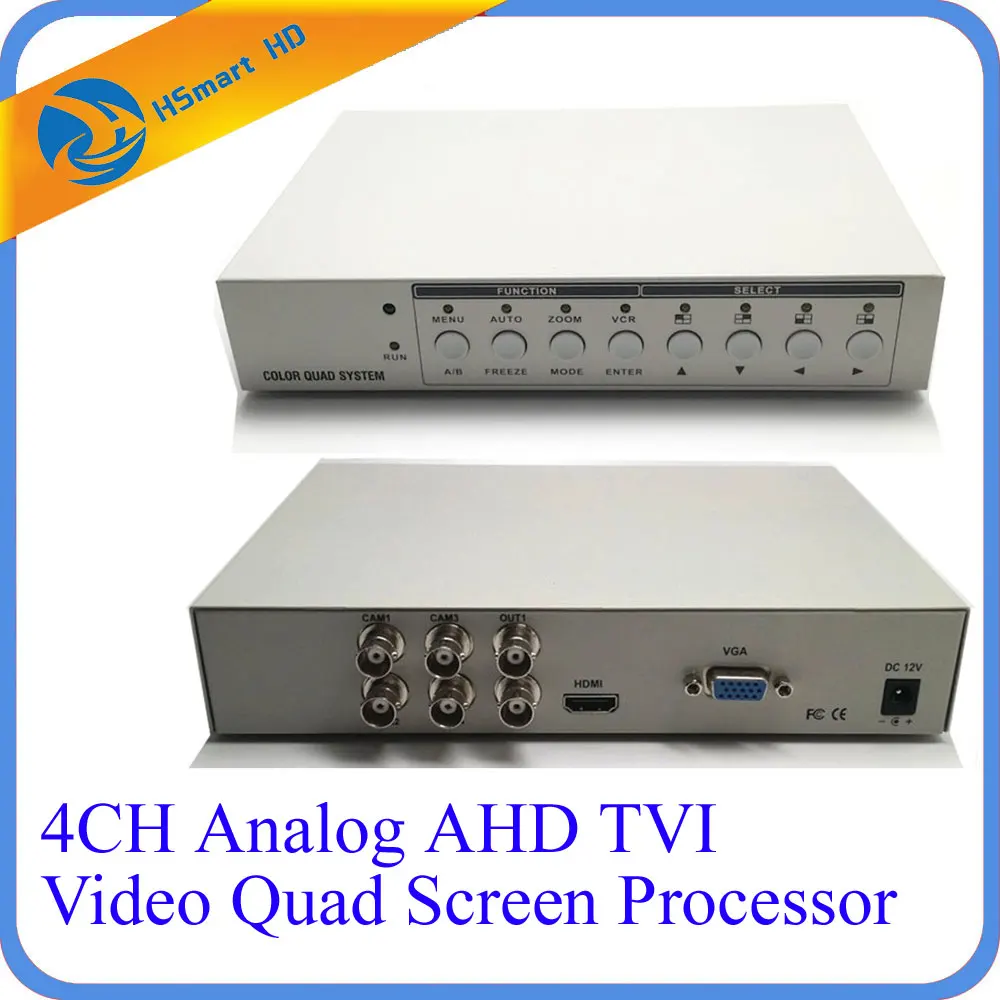

The HK-SRT2204 is a HD video multiplexer (Mux) that is compatible with analog CCTV and HD CCTV cameras (TVI and AHD supported). This quad screen processor takes video input from up to 4 security cameras via BNC video inputs, combines the video signals, and outputs video via HDMI or VGA outputs. The video output layout is controlled via the included wireless remote. The following video output modes are supported: quad screen, single camera full screen, PIP (picture in picture), dual screen (2 camera split), auto sequence (single camera scrolling / dwell time). Each input channel of the HK-SRT2204 can accept analog CCTV, HD-TVI (1080p), and AHD (720p or 1080p) cameras. Users can mix and match and combination of these camera types on a single device. NTSC and PAL video format cameras are supported however all cameras must be either NTSC or PAL. US and European video standards can not be mixed. The HK-SRT2204 includes a power supply and a wireless remote control which allows users to access all settings and controls. HD CCTV Video Multiplexer Features 4 Channel BNC Video Inputs Each Input Accepts Analog CCTV, TVI, AHD Cameras NTSC and PAL Video Format Supported HDMI Video Out - HD Video Out VGA Video Out - HD Video Out HD Video Output Selectable - 1024 x 768, 1280 x 1024, 1440 x 900, 720p/50/60, 1080p/50/60 2 BNC Video Out - CVBS Video Out Real time refresh rate Video Freeze Digital Zoom Separate Color Adjustments for each Security Camera Selectable Video Display Modes Full Screen / Single Camera Quad Screen / 4 Cameras Picture in Picture Dual Screen (2 camera split screen) - Horizontal & Vertical Modes Auto sequence - scrolling single camera / full screen Wireless Infrared Remote Control Included Power Supply Included - DC 12V 1amp Product Dimensions: 8.25" x 6" x 2" (width x depth x height) in inches HD CCTV Multiplexer The following images show the front and back of the HK-SRT2204 HD Multiplexer. On the front of the device, there are buttons to control the screen display, access the menu system, and freeze the image. It is more typicaly to use the wireless remote control. On the back of the multiplexer, there are 4 BNC camera inputs that are used to get the video feeds from up to 4 cameras. The other 2 BNC connections are analog video outputs. There is an HDMI and VGA monitor output. HD Camera Multiplexor Images The HK-SRT2204 HD quad processor / multiplexer for video surveillance supports the following screen views: quad (4 camera view), split screen / dual camera view, single camera view, and PIP (picture in picture). Note: All of the below screenshots were taken using a HK-SRT2204 with four 1080p HD security cameras connected to it. Please click on any of the images for a full 1080p resolution view. These are the cameras that were connected to the quad when these screenshots were captured. Ch1:HD-TVI-BL180 - 1080p TVI camera with 180 degree lens Ch2:AHD-D32W - Indoor Dome 1080p AHD camera w/ infrared Ch3:AHD-D7W - Indoor Dome 1080p AHD camera Ch4:>HD-TVI-BL2 - Indoor / Outdoor Infrared 1080p TVI security camera Quad View / 4 Camera Screen View The above image shows 4 HD security cameras using the quad / 4 camera view of the HK-SRT2204. Alternate 4 Camera View / Quad View This alternative 4 camera view allows one large camerain the middle with the three small camera views along the right side. Dual Screen / Split Screen / 2 Camera Screen View The above image shows the 2 camera view / side by side. Horizontal 2 Camera View / Split Screen The above image shows the 2 camera split screen view. The camera views are horizontal. Single Screen / One Camera View The above image shows a single camera / full screen view using a 1080p HD-TVI security camera. Picture in Picture The above image shows the picture-in-picture (PIP) view. Installation / Wiring Diagram The above diagram shows 4 security cameras cam be connected to the VM-Q4 using RG59 coax cable. The multiplexer can be connected to a TV / monitor using HDMI or VGA cable. The user can control the video display layout using the wireless remote control that is included with the quad or using the buttons on the front of it. Package include: 1 x HD CCTV Multiplexer, Analog, AHD, TVI Video Quad Screen Processor 1 x Power Adapter 1 x Remote Control

Return Policy

If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.
N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.

Seller Service

On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).
Hot Clearance HD 1080P 4CH CCTV Multiplexer Analog AHD TVI Video Quad Screen Processor HDMI VGA Monitor Output 2 BNC Analog CVBS Video Outputs
