CCTV Security Cameras Product Store Choice Collections provide cctv system,security surveillance Hot Special Plug and Play P2P 4CH 1080P POE Night Vesion bullet Camera 2MP CCTV Full HD Security Surveillance NVR KIT with HDD+CAT5 cable. Price at this time US $298.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Shen Zhen Huafeng Industrial Co., LTD store3 Trusted Seller Store!

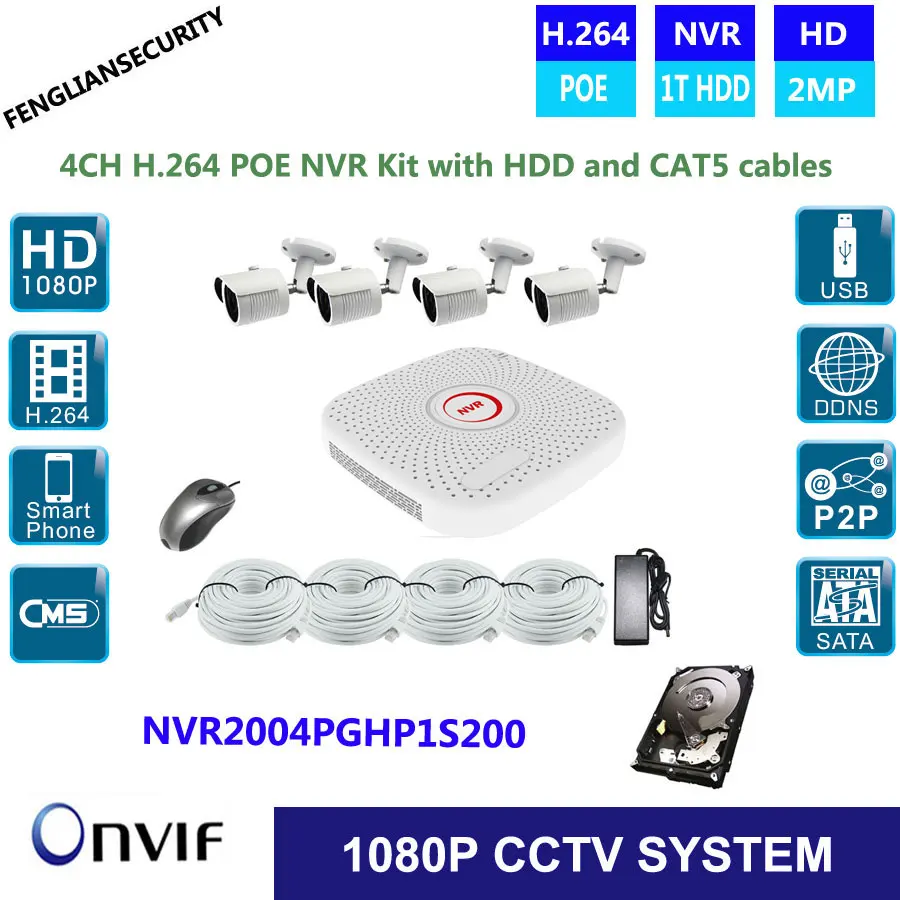

NVR2004PGHP1S200 include :
1pcs NVR2004PGHP + 4pcs POE LBH30S200 +4pcsx 18M CAT5 cables
NVR2004PGHP: 4ch POE NVR
LBH30S200:2.0MP POE bullet camera
H.264 Compression Format
24-Hours Realtime Recording :
1TB HDD can store 4ch 1080P for 6 days!
2TB HDD can store 4ch 1080P for 12 days!
3TB HDD can store 4ch 1080P for 18 days!
4TB HDD can store 4ch 1080P for 24 days!
********************************************************************************************************
NVR2004PGHP1S200 Parameters
- IP Camera Input: 4CH@2MP/1.3MP/720P (Total Incoming Bandwidth ≤20M)
- Vidieo Output: 1xHDMI/ 1xVGA
- Compression Method: H.264
- Recording Resolution: 2MP/1.3MP/1MP
- Frame Rate: Main Stream: 2MP/1.3MP/1MP@25fps (PAL) / 30fps (NTSC)
- Sub-stream:D1/VGA/CIF@ 25fps (PAL) / 30fps (NTSC)
- POE: 4 x Independent 100Mbps PoE Network Interfaces
- (Output Power≤15.4W per Interface )
- Preview Resolution: 1CH@Main Stream/4CH@Sub-stream
- Playback: Support Single Channel Mode.
- Hexaplex Operation Simultaneously: Preview, Recording, Playback, Live, Backup
- Static, Dynamic IP and DDNS, P2P, Support IE and Special Client Software
- 2 × USB, 5 x RJ45 (10M/100M Adaptive Ethernet Interface)
- 1 SATA Hard Disk Interface (2.5"/3.5" SATA, Up to 6TB)
- Backup: USB2.0 (such as U Disk, USB Drive) and Network
- Standard Color: White, Optional Color: Black (Model LS-N2004PDFB)
- Support Remote View by Smart Phone
- Power Adaptor: DC15V/6A, With 1x2TB Seagate hard disk ST2000VX002
- Dimensions of NVR (L×W×H): 215*215*53(mm)
- Weight of Package: 7.18kg
| Model | NVR2004PGHP | ||
| System | |||
| Main Processor | ARM Cortex A9 Processor(HI3520D) | ||
| Operating System | Embedded LINUX | ||
| Video | |||
| Input | 4 Channel(4 channel pc),Support1920x1080 1280x720, 1280×960, 1280×720 ect. | ||
| Output | 1 VGA, 1 HDMI | ||
| Alarm | |||
| Sensor Input | NO | ||
| Output | NO | ||
| Motion Detection | 4 Channel | ||
| Email Alarm | Support | ||
| Display | |||
| VGA | Resolution: 1920x1080 1024X720, 1280X720, 1280X1024, | ||
| HDMI | Resolution:1920x1080 1024X720, 1280X720, 1280X1024, | ||
| Display Split | 4 Channel / 1Channel | ||
| Digital Zoom | NO | ||
| OSD | Camera title, Time, Video loss, Recording, Motion Detection | ||
| Recording | |||
| Video Compression | H.264 | ||
| Resolution | 1080P (1920x1080) 960P(1280x960) / 720P(1280×720) / D1 (704×576/704×480) | ||
| Record Rate | PAL :1080P 960P@100fps,720P@100fps, D1@100fps NTSC:1080P 960P@120fps 720P@120fps, D1@120fps | ||
| Record Mode | Timer \ Motion Detection | ||
| Playback & Backup | |||
| Local Sync Playback | 1X1080P | ||
| Remote Sync Playback | YES | ||
| Search Mode | ALL, Channel, Time, Date, Motion Detection | ||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play | ||
| Backup Mode | USB Device | ||
| Network | |||
| Interface | 5 RJ45 10M/100M Adaptive Ethernet Interface | ||
| Network Functions | HTTP, IPv4, TCP/IP, DNS,DHCP,NTP,DDNS | ||
| Onvif Version | Support Onvif 2.4 | ||
| Web Browser | IE6-11 | ||
| CMS Software | Support Windows XP / Windows Vista / Windows 7/ Windows 8 | ||
| Cloud Support(P2P) | Yes | ||
| POE | support | ||
| Smart Phone | iPhone, iPad, Android, Android PAD | ||
| Hard Disk Driver | |||
| Interface Type | 1 SATA Interface , 2.5/3.5 SATA | ||
| Capacity | Up to 4TB capacity | ||
| General | |||
| Language | Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian | ||
| USB Interface | 2 USB 2.0 Interfaces | ||
| Power Supply | DC48V 1250mA | ||
| Working Environment | -10~55 degree /10~90% | ||
| Dimension(W×D×H) | 215*215*53mm | ||
| Weight | 2.0KG (without HDD) | ||
********************************************************************************************************
Remote view by Smart phone
********************************************************************************************************
Remote View by IE
********************************************************************************************************
Remote View by CMS
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
LBH30S200 Parameters
Plastic Weatherproof IR CameraIR LED: 14µ x 18PCSIR range: 30MBoard Len 3.6mm/F2.0Water resistance: IP66Anti-Cut 3-Axis BracketSize: 157 x 70 x 60Weight: 650gVoltage: DC12V/POE Main Specification1/4" OV 2.0MP CMOS Sensor HISILICON Hi3518E,Main Stream: 1080P@30fps, 2MP HD Lens, With IR-CUT
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
(1) 4ch NVR X1pcs
(1) 2.0MP POE bullet camera LBH30S200 X4pcs
(1) Mouse X1pcs
(1) Power Adaptor: DC12V6A for NVR x 1pcs
(1) 18M CAT5 cables x 4pcs
(1) Users Manual X1pcs
(1) CD Software X1pcs
