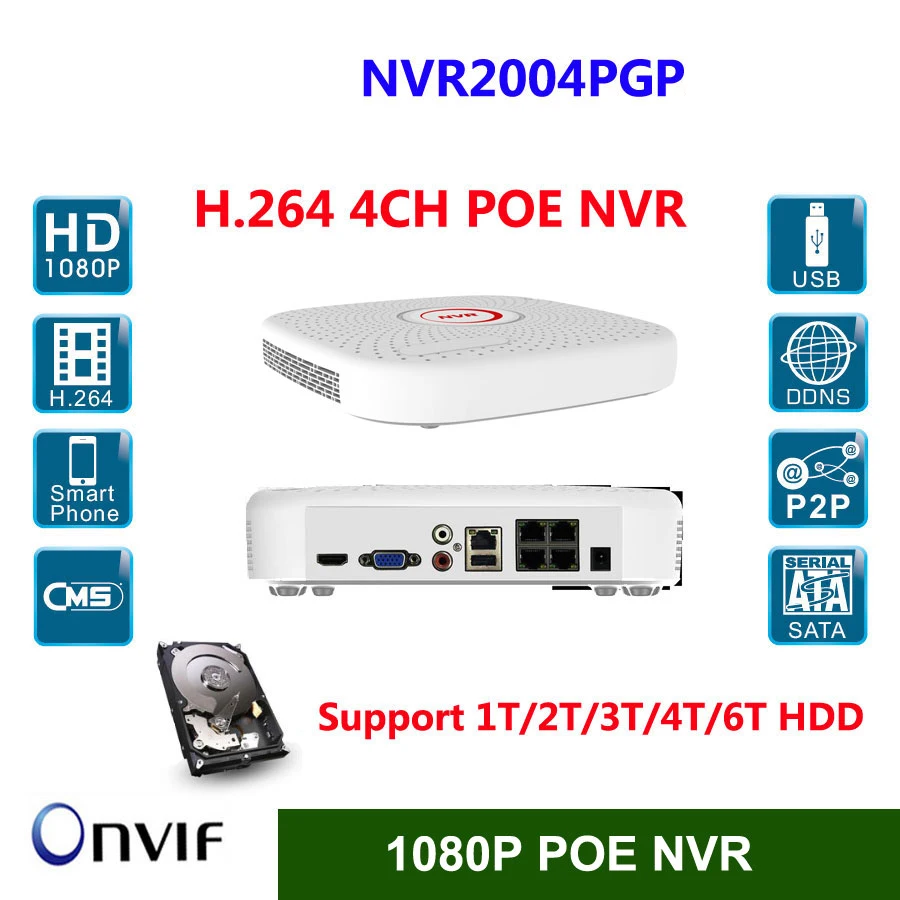

CCTV Security Cameras Product Store Choice Collections provide hidden camera,cctv camera,camera system,cctv system 2018 Clearance Full HD 1080P CCTV POE NVR, 4CH NVR For IP Camera ONVIF H.264 NVR,support 1T/2T/3T/4T/6T HDD. Price at this time US $96.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Shen Zhen Huafeng Industrial Co., LTD store4 Trusted Seller Store!
Wonderful item can enhance the high quality of your life. Qualified to be purchased. Low-cost cost and totally free delivery. Let's buy Clearance 2018 Clearance Full HD 1080P CCTV POE NVR, 4CH NVR For IP Camera ONVIF H.264 NVR,support 1T/2T/3T/4T/6T HDD prior to costs climb.
Packet:
(1) 4ch POE NVR X1pcs
(1)1TB/2TB/3TB/4TB/ DISK (option):Seagate SKYKAWK CCTV Monitoring hard disk
(1) Mouse X1pcs
(1) Power Supply for NVR X1pcs
(1) Users Manual X1pcs
(1) CD Software X1pcs
H.264 Compression Format
24-Hours Realtime Recording :
1TB HDD can store 4ch 1080P for 6 days!
2TB HDD can store 4ch 1080P for 12 days!
3TB HDD can store 4ch 1080P for 18 days!
4TB HDD can store 4ch 1080P for 24 days!
********************************************************************************************************
Seagate SKYKAWK CCTV Monitoring hard disk Advantage:
- Enterprise Monitoring,Intelligent, safe, reliable, etc.
- Long life 7x24 hours continuous work without pressure
********************************************************************************************************
- POE: 4 x Independent 100Mbps PoE Network Interfaces (Output Power≤15.4W per Interface)
- Incoming Bandwidth: 46MB
- Compression Method: H.264
- Recording Resolution: 1080P/960P/720P, etc (All Real Time)
- Preview Resolution: Multi-channels@Sub-stream/Single channel@Main Stream
- Hexaplex Operation Simultaneously: Preview, Recording, Playback, Live, Backup
- HDMI/VGA Output: 1920×1080/1280×1024/1280×720
- Network Interface: 5xRJ-45 10/100Mbps Self-adaptive Ethernet Interfaces
- 1 SATA Hard Disk Interface (2.5"/3.5" SATA, Up to 6TB)
- Support Remote View by Smart Phone
- DC48V/1250mA ≤10W (Without Hard Disk and POE)
- Dimensions (L×W×H): 215*215*53(mm) Weight: 2k
- IP Camera Input: 9CH (1920×1080, 1280×960, 1280×720, etc)
| Model | NVR2004PGP | ||
| System | |||
| Main Processor | ARM Cortex A9 Processor(HI3520D) | ||
| Operating System | Embedded LINUX | ||
| Video | |||
| Input | 4CH (1920x1080, 1280×960, 1280×720, etc) | ||
| Output | 1 VGA, 1 HDMI | ||
| Alarm | |||
| Sensor Input | NO | ||
| Output | NO | ||
| Motion Detection | 4 Channel | ||
| Email Alarm | Support | ||
| Display | |||
| VGA | Resolution: 1024X768, 1280X720, 1280X1024, | ||
| HDMI | Resolution: 1080P(1920×1080) 720P:(1280×720) | ||
| Display Split | 4 Channel / 1Channel | ||
| Digital Zoom | NO | ||
| OSD | Camera title, Time, Video loss, Recording, Motion Detection | ||
| Recording | |||
| Video Compression | H.264 | ||
| Resolution | 1080P(1920×1080) / 960P(1280x960) / 720P(1280×720) / D1 (704×576/704×480) | ||
| Record Rate | PAL :1080P@100fps, 960P@100fps,720P@100fps, D1@100fps NTSC:1080P@120fps, 960P@120fps 720P@120fps, D1@120fps | ||
| Record Mode | Timer \ Motion Detection | ||
| Playback & Backup | |||
| Local Sync Playback | 1X1080P | ||
| Remote Sync Playback | YES | ||
| Search Mode | ALL, Channel, Time, Date, Motion Detection | ||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play | ||
| Backup Mode | USB Device | ||
| Network | |||
| Interface | 5 RJ45 10M/100M Adaptive Ethernet Interface | ||
| Network Functions | HTTP, IPv4, TCP/IP, DNS,DHCP,NTP,DDNS | ||
| Onvif Version | Support Onvif 2.4 | ||
| Web Browser | IE6-11 | ||
| CMS Software | Support Windows XP / Windows Vista / Windows 7/ Windows 8 | ||
| Cloud Support(P2P) | Yes | ||
| POE | 4 x Independent 100Mbps POE Network Interfaces | ||
| Smart Phone | iPhone, iPad, Android, Android PAD | ||
| Hard Disk Driver | |||
| Interface Type | 1 SATA Interface , 2.5/3.5 SATA | ||
| Capacity | Up to 4TB capacity | ||
| General | |||
| Language | Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian | ||
| USB Interface | 2 USB 2.0 Interfaces | ||
| Power Supply | DC48V 1250mA | ||
| Working Environment | -10~55 degree /10~90% | ||
| Dimension(W×D×H) | 215*215*53mm | ||
| Weight | 2.0KG (without HDD) | ||
********************************************************************************************************
Remote view by Smart phone
********************************************************************************************************
Remote View by IE
********************************************************************************************************
Remote View by CMS
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
