CCTV Security Cameras Product Store Choice Collections provide cctv camera,hidden camera,remote cctv Big Stock Promo Plug And Play 1080P Outdoor IR Night Vision Home Surveillance Security IP Camera WIFI CCTV System 4CH Wireless NVR Kit 1TB HDD. Price at this time US $251.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Shen Zhen Huafeng Industrial Co., LTD store4 Trusted Seller Store!

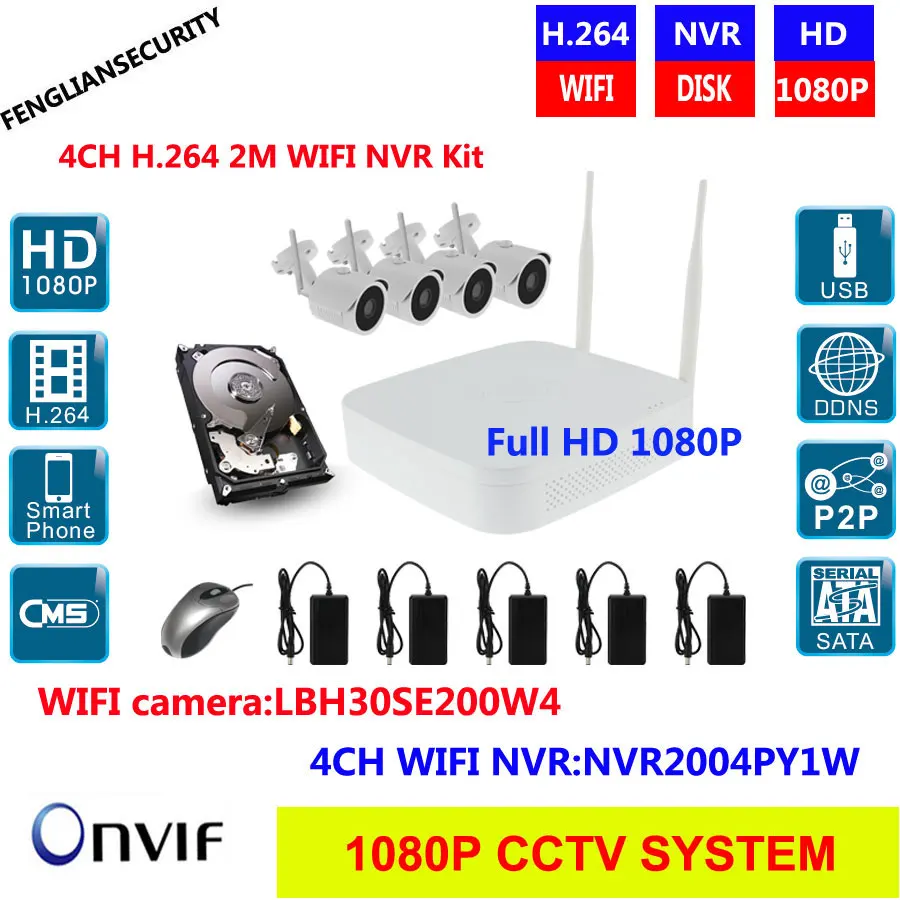

WIFI2004PY1S100 include: 1pcs NVR2004PY1W + 4pcs LBH30SE200W4 + 1pcs DISK (Option)
NVR2004PY1W: 4ch WIFI NVR
LBH30SE200W4:2.0MP WIFI bullet camera
DISK:Seagate Hard Disk (Option)
********************************************************************************************************
WIFI2004PY1SE2004 Parameters
◆4CH WIFI NVR & WIFI IP Camera Kit◆IP Camera LBH30SE200W: 1080P Hisilicon, Outdoor Metal Bullet Case, 25m Night Vision, Support WIFI & ONVIF◆Vidieo Output: 1xHDMI/ 1xVGA ◆Compression Method: H.264 ◆Recording Resolution: 1920x1080 ◆WIFI Range: No Obstacles 200m Max◆Preview Resolution: 1CH@Main Stream/4CH@Sub-stream Playback: Support Single Channel Mode.◆Hexaplex Operation Simultaneously: Preview, Recording, Playback, Live, Backup◆Static, Dynamic IP and DDNS, P2P, WIFI, Support IE and Special Client Software◆2 × USB, 1 x RJ45 (10M/100M Adaptive Ethernet Interface)◆1 SATA Hard Disk, With 1x1TB Seagate Hard Disk ST1000VM002◆Backup: USB2.0 (such as U Disk, USB Drive) and Network◆Support Remote View by Smart Phone◆Power Adaptor: 1xDC12V2A for WIFI NVR, 4xDC12V0.5A for WIFI IP Camera◆Dimensions of NVR (L×W×H): 215*215*53(mm)◆Weight of Package: 4.6kg| Model | NVR2004PY1W | ||
| System | |||
| Main Processor | ARM Cortex A9 Processor(HI3520D) | ||
| Operating System | Embedded LINUX | ||
| Video | |||
| Input | 4 Channel(4 channel wifi ipc),Support 1920×1080, 1280×960, 1280×720 ect. | ||
| Output | 1 VGA, 1 HDMI | ||
| Alarm | |||
| Sensor Input | NO | ||
| Output | NO | ||
| Motion Detection | 4 Channel | ||
| Email Alarm | Support | ||
| Display | |||
| VGA | Resolution: 1920x1080 1024X720, 1280X720, 1280X1024, | ||
| HDMI | Resolution:1920x1080 1024X720, 1280X720, 1280X1024, | ||
| Display Split | 4 Channel / 1Channel | ||
| Digital Zoom | NO | ||
| OSD | Camera title, Time, Video loss, Recording, Motion Detection | ||
| Recording | |||
| Video Compression | H.264 | ||
| Resolution | 1080P(1920×1080) / 960P(1280x960) / 720P(1280×720) / D1 (704×576/704×480) | ||
| Record Rate | PAL :1080P@100fps, 960P@100fps,720P@100fps, D1@100fps NTSC:1080P@120fps, 960P@120fps 720P@120fps, D1@120fps | ||
| Record Mode | Timer \ Motion Detection | ||
| Playback & Backup | |||
| Local Sync Playback | 1X1080P | ||
| Remote Sync Playback | YES | ||
| Search Mode | ALL, Channel, Time, Date, Motion Detection | ||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play | ||
| Backup Mode | USB Device | ||
| Network | |||
| Interface | 5 RJ45 10M/100M Adaptive Ethernet Interface | ||
| Network Functions | HTTP, IPv4, TCP/IP, DNS,DHCP,NTP,DDNS | ||
| Onvif Version | Support Onvif 2.4 | ||
| Web Browser | IE6-11 | ||
| CMS Software | Support Windows XP / Windows Vista / Windows 7/ Windows 8 | ||
| Cloud Support(P2P) | Yes | ||
| WIFI | WLAN bandwidth 16Mbps | ||
| Smart Phone | iPhone, iPad, Android, Android PAD | ||
| Hard Disk Driver | |||
| Interface Type | 1 SATA Interface , 2.5/3.5 SATA | ||
| Capacity | Up to 4TB capacity | ||
| General | |||
| Language | Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian | ||
| USB Interface | 2 USB 2.0 Interfaces | ||
| Power Supply | DC48V 1250mA | ||
| Working Environment | -10~55 degree /10~90% | ||
| Dimension(W×D×H) | 215*215*53mm | ||
| Weight | 2.0KG (without HDD) | ||
********************************************************************************************************
Remote view by Smart phone
********************************************************************************************************
Remote View by IE
********************************************************************************************************
Remote View by CMS
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
LBH30SE200W4 Parameters
WIFI IR bullet Camera
WIFI WLAN bandwidth: 16Mbps
Wireless range:100m
WIFI Antenna:2CH 5dB
WIFI connection :WPA authentication access
IR LED: 42μ x 2PCS
IR range: 25M
Board Lens 3.6mm/F2.0
Size: 157 x 70 x 66mm
Weight: 650g
Color: WhiteVoltage: DC12V Main Specification1/2.7" OV 2.1MP High-resolution CMOS SensorFARADAY GM8136S, WDR; Main Stream: 1080P@25fps; 2MP HD Lens, With IR-CUT
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
(1) 4ch wifi NVR X1pcs
(1) Disk (Seagate) X1pcs (Option)
(1) 2.0MP wifi LBH30SE200W4 X4pcs
(1) Mouse X1pcs
(1) Power Adaptor: DC12V2A for WIFI NVR x 1pcs
DC12V0.5A for WIFI IP Camera x 4pcs
(1) Users Manual X1pcs
(1) CD Software X1pcs
