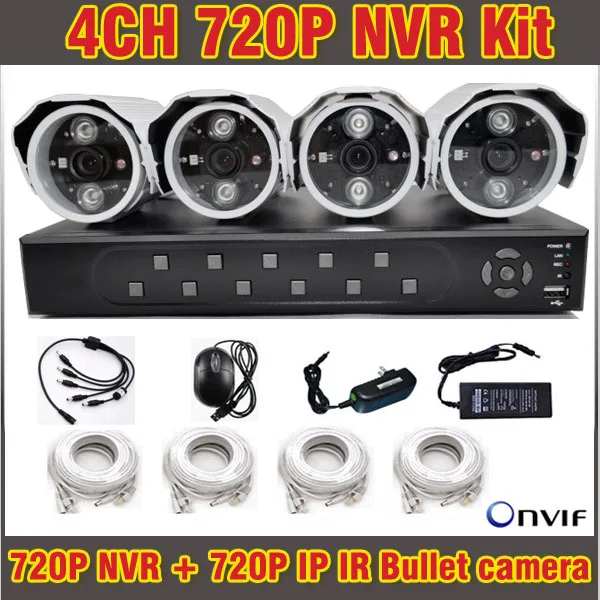

Big Deals High Quality NVR 4CH 720P H.264 Full HD CCTV NVR System Video Surveilance Security CCTV 4 Channel for IP Camera Onvif PTZ remote cctv Rating: 4.6 out of 5
CCTV Security Cameras Product Store Choice Collections provide cctv camera,remote cctv,security surveillance,camera system Big Deals High Quality NVR 4CH 720P H.264 Full HD CCTV NVR System Video Surveilance Security CCTV 4 Channel for IP Camera Onvif PTZ. Price at this time US $348.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Shenzhen Amocam Technology Co., Ltd Trusted Seller Store!
CCTV Security Cameras Product Store Choice Collections provide cctv camera,remote cctv,security surveillance,camera system Big Deals High Quality NVR 4CH 720P H.264 Full HD CCTV NVR System Video Surveilance Security CCTV 4 Channel for IP Camera Onvif PTZ. Price at this time US $348.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Shenzhen Amocam Technology Co., Ltd Trusted Seller Store!
Welcome to our store choose more products:
|
$96.60 NVR 4 CHANNEL4PCS 720P IR bullet camera
> 1/3” OV9712 1.0 Mp progressive scan CMOS image sensor
> High-performance TI DSP
> H.264 video compression and JPEG image capture
> 25/30fps@720P resolution
> Dual encoding streams supported
> Support ICR true Day/Night
> Built-in 3.6/6mm/F1.6 CS lens optional
> Built-in high-performance IR LEDs 50 metes
> Support Alarm I/O (optional)
> Support DC12V
> IP66 Water-proof protection
> Built-in web server, NVR & CMS
IP Camera Specifications
| Operating System | Embedded LINUX |
| Resource | Simultaneous remote monitoring, local recording and remote control |
| User Interface | WEB, CMS |
| Image Sensor | 1/3” 1.0 Mp progressive scan CMOS |
| Effective Pixels | 1280(H)×720(V) |
| Electronic Shutter | Auto/Manual, 1/25~1/10000s |
| Mini. Illumination | 0.2LUX/F1.6(Color), 0LUX/F1.6(B/W)(IR on) |
| Signal Noise Ratio | >50dB |
| Gain Control | Auto/Manual |
| White Balance | Auto/Manual |
| Day/Night | ICR |
| Lens | 3.6/6 F1.6 |
| IR LED | 30-50 meters optional |
| Auto Iris | Support |
| Video Compression | H.264/MJPEG |
| Image Resolution | 1.3M(1280×960) / 720P(1280×720) / D1(704×576) / |
| CIF(352×288) / VGA(640×480) | |
| Encoding Speed | Main Stream: 1.3M(1~12fps),/720P/D1/CIF/VGA(1~25fps) |
| Extra Stream: D1/CIF (1~25fps) | |
| Bit Rate | 160K~8Mbps |
| Snapshot | Fastest 1fps JPEG capture |
| Video Format | PAL |
| Analogue Video Output | 1 channel BNC(1.0Vp-p, 75?) |
| Audio Compression | G.711a / G.711u / PCM |
| Bit Rate | 128kbps/64kbps/10.2kbps |
| Input | 1 RCA (option) |
| Output | 1 RCA (option) |
| Ethernet | RJ-45 (10/100Base-T) |
| Network Functions | HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, |
| PPPOE, DDNS, FTP, Alarm Server, Onvif, SNMP, Bonjour | |
| Remote Operation | Monitor, PTZ control, Playback, System setting, File download, Log |
| information, Maintenance & Upgrade | |
| Ingress Protection | IP66 |
| Power Supply | DC12V |
| Power Consumption | Max 15W |
| Operating Environment | -10°C~+60°C, 10%~90% |
| Dimension | 288.3mm×118.3mm×101mm |
| Weight | 2.5Kg |
4CH NVR Specifications
| System | |
| Main Processor | Dual-core embedded processor |
| Operating System | Embedded LINUX |
| Video | |
| IP Camera Input | 4 channel |
| Two-way Talk | 1 channel Input, 1 channel Output, BNC |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution | 1280×960, 1280×720, 1024×768 |
| Display Split | 1/4 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording | |
| Compression | H.264 / MJPEG |
| Resolution | 960P (1280x960), 720P(1280×720) / D1 (704×576/704×480) |
| Record Rate | 200/240fps@D1, 100/120fps@720P, 100/120fps@960P |
| Bit Rate | 48 ~ 8192kbps |
| Record Mode | Manual, Schedule(Regular(Continuous), Alarm), Stop |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Video Detection & Alarm | |
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
| Video Detection | Motion Detection, Video Loss & Camera Blank |
| Alarm Input | 4 channel |
| Relay Output | 3 channel |
| Playback & Backup | |
| Sync Playback | 1/4 |
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode | USB Device / Network |
| Network | |
| Ethernet | RJ-45 port (10/100M) |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
| Max. User Access | 20 users |
| Smart Phone | iPhone, iPad, Android, Windows Phone |
| Storage | |
| Internal HDD | 1 SATA ports, up to 4TB, Raid (redundancy) |
| Auxiliary Interface | |
| USB | 2 ports (1 Rear), USB2.0 |
| RS232 | None |
| RS485 | 1 port, For PTZ control |
| General | |
| Power Supply | DC12V/2AMP |
| Power Consumption | 20W(without HDD) |
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa |
| Dimension | 1U, 375mm×285mm×50mm |
| (W×D×H) | |
| Weight | 2.3KG(without HDD) |
