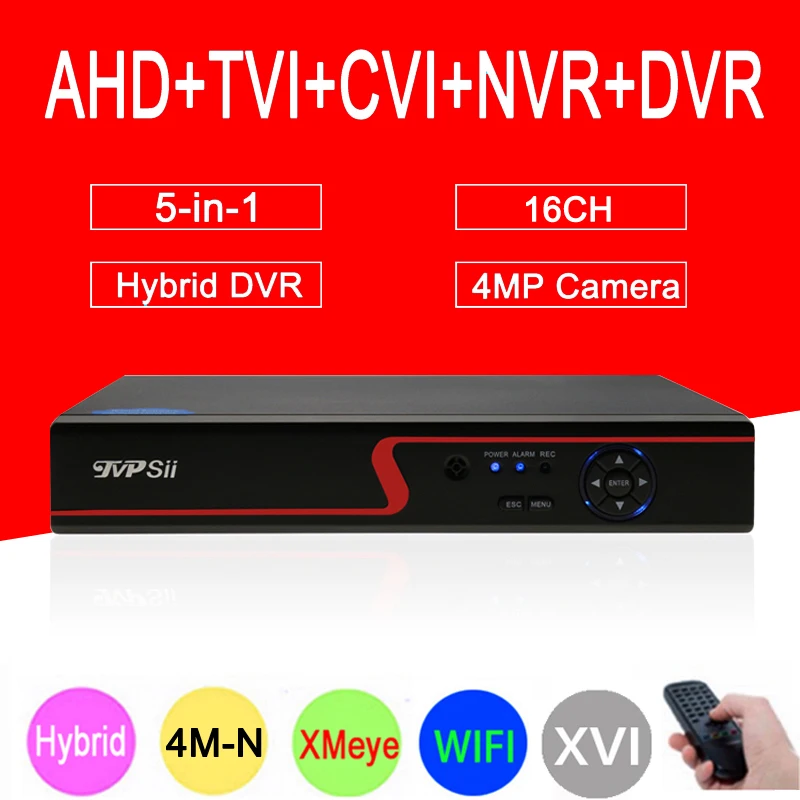

CCTV Security Cameras Product Store Choice Collections provide remote cctv, spy camera,cctv camera,camera system Big Special 4mp CCTV Camera Red Panel Hi3521A XMeye 4M-N 16CH 16 Channel 6 in 1 WIFI Coaxial Hybrid Onvif XVI NVR TVI AHD DVR Free Shipping. Price at this time US $82.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in ShenZhen TopVideo Security Store Trusted Seller Store!
- analog:16*4M-N;8*1080N;16*960H;(AHD Camera+TVI Camera+CVI Camera+960H/D1 at same time)
- hybrid:8*1080N(analog)+8*960P(network)(AHD Camera+TVI Camera+CVI Camera+960H/D1 +IP Camera at same time)
- network:8*1080P+8*960P;4*4M;4*5M；
A:
- 4M-N Coaxial DVR is new format DVR;
- Resolution is 1280px*1440px;
- Support 4 million pixels(4mp),2 million pixels(1080P/AHD-H),1.3 million pixels(960P/AHD-M), 1 million(720P/AHD-M) pixels AHD/TVI/CVI Camera; Analog Camera(960H) and IP Cmera(2mp/3mp/5mp).
Q: What is XVI function?
A: XVI also known as AXVI (Full name is Advanced XM Video Interface), it is a coaxial transmission video format newest developed by XM. Products with XVI are superior to competitors not only because of its compatibility with AHD,TVI protocols, but also its unique feature.
| Model | 6016T-LME(S) | |
| System | Main processor processor | Hi3521A |
| Interface | Preview | 1/4/8/9/16 |
| Video | Codec | H.264+（Quasi H.265）/H.264 |
| Monitor quality | VGA,HDMI:HD | |
| Encode ability | 16*4M-N/ 16*1080N(5 in 1)/16*960H | |
| Decode ability | 16*4M-N/ 16*1080N(5 in 1)/16*960H | |
| Onvif support | support | |
| Multi-mode input | analog:16*4M-N;8*1080N;16*960H; hybrid:8*1080N(analog)+8*960P(network); network:8*1080P+8*960P;4*4M;4*5M; | |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) | |
| Audio | Audio compression | G.711A |
| Intercom | support | |
| Record & playback | Record mode | manual>alarm>motion detection>timing |
| Local Playback | 16ch(local input mode) | |
| Search mode | Search by time, calendar, event, channel | |
| Storage & backup | Video storage | HDD, network |
| Backup mode | Network, USBhard disk, USB burner, SATA burner | |
| External Interface | Video output | 1ch VGA, 1ch HDMI |
| Loop Vout | N/A | |
| Audio I/O | 2(Can be extended to 6ch)/1 | |
| Alarm I/O | 0(Can be extended to 4ch)/0(Can be extended to 1ch) | |
| Network interface | RJ45 10M/100M self-adaption | |
| PTZ control | 1*RS485, Support kinds of PTZ protocols | |
| USB | 2* USB 2.0 ports | |
| HDD | 1*SATA ports (Max 6TB/per) | |
| Wireless | 3G, WIFI (extend via USB) | |
| General | Power supply | 12V/3A |
| Power Consumption | <15W (without HDD) | |
| Working environment | Temperature:0 degree - +55 degree Humidity:10%-90%,Atm:86kpa-106kpa | |
| Dimension(mother board) | 235mm*90mm | |
| Weight(mother board) | 279g |
Notice:
12V 2A Power adpater 16CH AHD Hybrid DVR will not work with 2TB,3TB or 4TB hard disk ,so must use 12V 3A power adpater!!!(many seller use 12V 2A for cutting cost,so be careful)
-
1.Russian Federation: 7-22 days By RETS-Express
-
2.Brazil: 15-30 days E-Packet
-
3.East Asia (Japan and Korea): 7-15 days EMS or E-Packet
-
4.Southeast Asia: 7-15 days E-packet or Singapore Post
-
5.Central Asia and South Asia: 7-20days China post
-
6.West Asia (Israel): E-Packet; Netherlands Post; Swiss Post, about 7-15 days
-
7.United States and Canada: 7-15 days E-Packet
-
8.Europe: E-Packet; Netherlands Post; Swiss Post, about 7-15 days
-
9.Oceania (Australia and New Zealand): 7-15 days E-Packet
-
10.DHL (America and Europe):3-10days;SPSR(Russian Federation):7-18days
Friendly Reminder:
-
we only spent two days (48 hours) for sent parcel , have tracking number and tracking number information,Thanks!
-
if you choose DHL for sent goods, please make sure that your address is not in remote areas for DHL,because it will produce huge transportation costs for remote areas, this also need pay by buyer,Thanks!
-
Due to different custom policy of many country, If want avoid high custom tax, we can declare a low price for goods with your request,we often delcare $18 for this hybrid dvr,Thanks!
Notice:
If you want to use WIFI function , please click the following button to buy USB WIFI Antenna Module,Thanks!
Q: it always cause problems in trade between countries, for example , bad weather for delay, custom problem , post worker broken it, and so on
A:if you have any problem, please frist contact us, not easy input dispute or give me a bad feedback, we will try our best to help you reslove problem ,We welcome those friendly customers,Thanks!Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Big Special 4mp CCTV Camera Red Panel Hi3521A XMeye 4M-N 16CH 16 Channel 6 in 1 WIFI Coaxial Hybrid Onvif XVI NVR TVI AHD DVR Free Shipping
