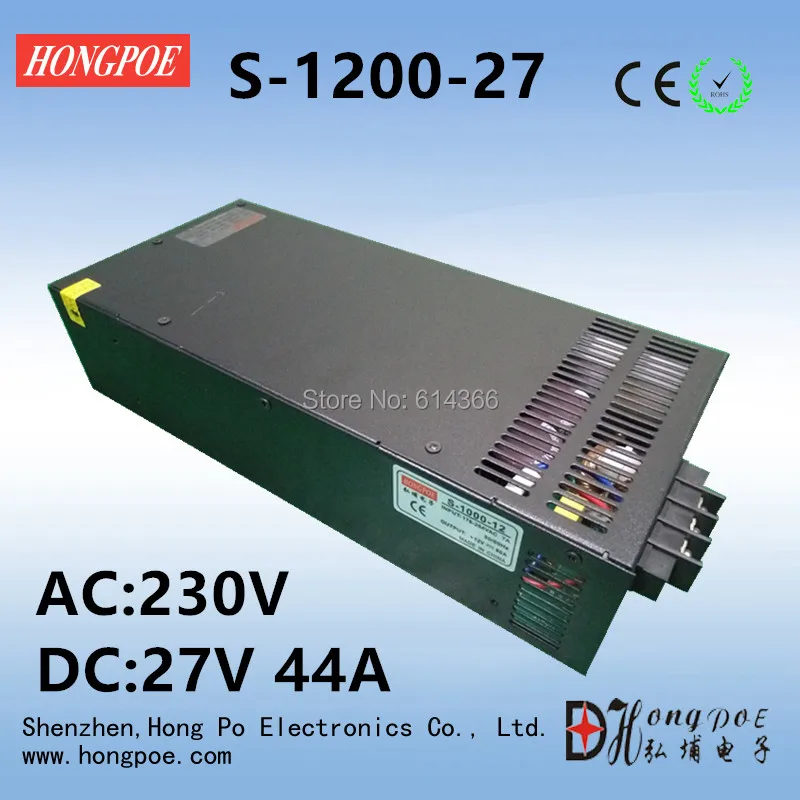

CCTV Security Cameras Product Store Choice Collections provide camera system,security surveillance,security camera Hot Limited 1PCS 27V 44A 1200W Switching Power Supply 27V 44A Driver for CCTV camera LED Strip AC 100-240V Input to DC 27V. Get Discount Now! Only US $157.96/piece at this time. Hurry buy Now before back to normal price! Normal price US $177.48 or you can Check price now. Dont waste your time. Buy Now only in Shenzhen, Hong pu Electronics Co., Ltd. Trusted Seller Store!
S-1200-27 | ||||
OUTPUT | DC VOLTAGE | 27V | ||
CURRENT RANGE | 0 ~ 44A | |||
RATED CURRENT | 44A | |||
RATED POWER | 1200W | |||
RIPPLE & NOISE (max.) Note.2 | 300mVp-p | |||
VOLTAGE ADJ. RANGE | 0~ 27V | |||
VOLTAGE TOLERANCE | 1.0% | |||
LINE REGULATION | 0.5% | |||
LOAD REGULATION | 0.5% | |||
SETUP, RISE TIME NOTE.5 | 800ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load | |||
HOLD UP TIME (Typ.) | 24ms/230VAC at full load | |||
INPUT | VOLTAGE RANGE | 180 ~ 264VAC by switch 254 ~ 370VDC | ||
FREQUENCY RANGE | 47 ~ 63Hz | |||
EFFICIENCY (Typ.) | 84% | |||
AC CURRENT (Typ.) | 7A/230VAC | |||
INRUSH CURRENT (Typ.) | COLD START 45A/230VAC | |||
LEAKAGE CURRENT | <3.5mA / 240VAC | |||
PROTECTION | OVER LOAD | 110 ~ 150% rated output power | ||
Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
OVER VOLTAGE | 24.5-29V | |||
Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
ENVIRONMENT | WORKING TEMP. | -10 ~ +60°C (Refer to output load derating curve) | ||
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
TEMP. COEFFICIENT | 0.03%/°C (0 ~ 50°C ) | |||
VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
SAFETY &EMC(Note 4) | SAFETY STANDARDS | Design representations UL1950 | ||
EMC | Design, said FCC part 15J condition, grade A | |||
WITHSTAND VOLTAGE? | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
ISOLATION RESISTANCE | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
OTHERS | DIMENSION | 344*132*69 (L*W*H) | ||
PACKING | 2.7kgs, 6pcs/17.5KG | |||
NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°Cof ambient temperature. | |||
Low shipping costs,excellent service logistics please contact us
Why choose us ?
We are a professional Switching Power Supply manufacturer, we have advanced technology and first class equipment, we own our manufacturing factory ,and all the producing process are finished all by ourselves.Our products have excellent quality, and they equipped with 100% full load burn-in testing .we offer fine after-sales services. If there is any question you want to know, please contact us at any time.
Orders
Our products are popular with North America, South America, Eastern Europe, Western Europe, Central America, Northern Europe, Southern Europe. And they achieved good reputation at the same time. Our products are widely used in electrical household appliances (like STB,digital photo frames and LED displays), security products(like monitoring head and monitors), communication products (like telephones, hubs and routers) and game players. We can also offer OEM service according to customers requirements. Always welcome your order!
Delivery
In general, we deliver goods within 7-10 days after the account’s reaching, and we usually choose DHL,UPS,TNT,EMS or Fed-Ex, of course, you can appoint another .
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Hot Limited 1PCS 27V 44A 1200W Switching Power Supply 27V 44A Driver for CCTV camera LED Strip AC 100-240V Input to DC 27V
