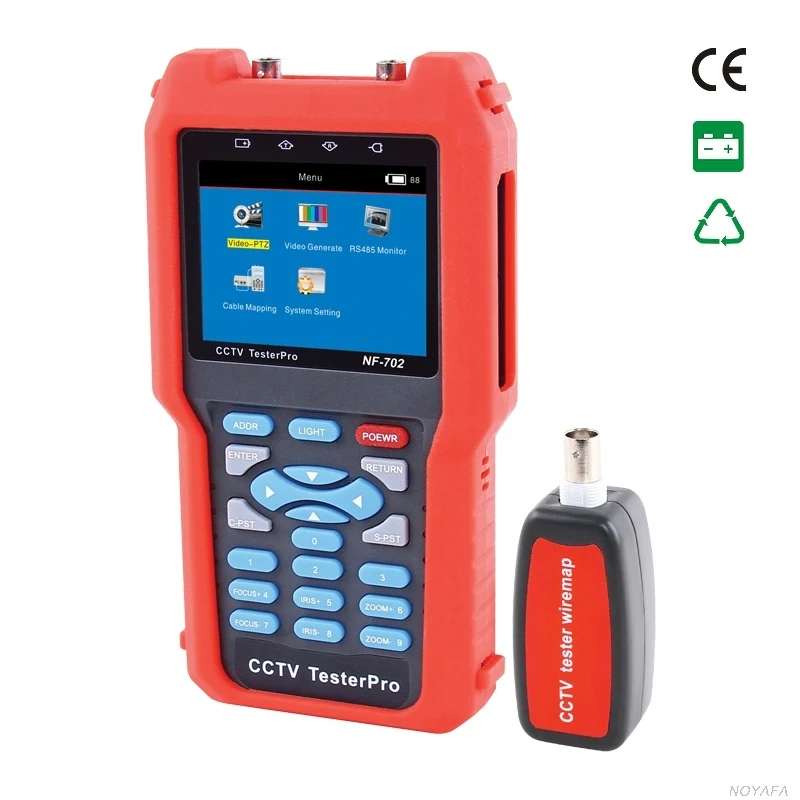

NOYAFA NF-702 3.5 inch LCD Multimeter CCTV Tester portable cctv security cameras Video Level testing, Audio input and PTZ

Features:

1. 3.5 TFT-LCD, 960(H)×240(V)resolution, 262K.

2. 2 kinds of language: Chinese, English can be slected.

3. Video Level testing, video signals measured in IRE or Mv.

4. Audio input testing and PTZ continuing rotate test. .

5. Digital multimeter, voltage, current, resistance and capacitance can be tested, continuity testing, diode testing.

6. PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and calls the preset position.

7. Video displaying. Automatically adapts and displays the video format of NTSC/PAL.

8. Video Generating, The PAL/NTSC multi-system color bar video generator

9. Check open,short,cross reverse wiremap for RJ45 and BNC cable.

Attention:

1. Pls check the power supply accessories good or not before you connect the power,and check other relative accessories carefully.

2.Dont use the tester where the humidity is high. Once the tester is damp, power off immediately, pls move away other cables connected.

3. The tester should not be used in the environment with the flammable gas.

4. Do not disassembly the instrument since no component inside can be repaired by the user. If the disassembly is necessary indeed, please contact with the technician of our company.

5. Dont touch the tester with wet hands or waterish things.

Function Comparison:

NF-702	NF-704	NF-706	NF-707	NF-708
Video Test	Signal Mode	NTSC/PAL automatically suitable	√	√	√	√	√
	Display	3.5 inch TFT LCD color screen,960x240 resolution	√	√	√	√	√
	Analog Video Input	Analog Video Input	√	√	√	√	√
	HD Video Input	AHD Video Input					√
	Video Output	Video Signal Output	√	√	√	√	√
PTZ Control and Test	Communication	RS485	√	√	√	√	√
	protocol	Include more than 20 kinds of protocols or customized	√	√	√	√	√
	Baud Rate	24,00 4,800, 960,0	√	√	√	√	√
Multi-meter Function	DC Voltage Test	Max:1000v,Precision:0.1v			√
	AC Voltage Test	Max:750v,Precision:0.1v			√
	DC Current Test	Max:10A,Precision:0.1mA			√
	AC Current Test	Max:10A,Precision:0.1mA			√
	Diode Test	Diode Test			√
	Resistance Test	Max:40MΩ,Precision:0.1Ω			√
	Continuity Test	Continuity Test			√
12 V power output	Output voltage	DC12 V	√	√	√	√	√
	Output current	Max:1000mA	√	√	√	√	√
Power and Battery	The power converter	DC5V/1A	√	√	√	√	√
	Battery	3000mAh rechargeable Large capacity lithium battery inside	√	√	√	√	√
	Rechargeable	4hours recharging time	√	√	√	√	√
	Low Consumption	Sleeping mode,display battery power state	√	√	√	√	√
	Working Time	Independent working time can be up to 12 hours	√	√	√	√	√
	Low battery prompt functions	When the battery is low, there will be a low battery prompt functions	√	√	√	√	√
Other Function	Video Analyzing	Through the analysis of synchronous level signal attenuation amplitude	√	√	√	√	√
	Video Signal	Independently output 1channel analog video signal	√	√	√	√	√
	Cable test	Check cable open,short, cross connection	√	√	√	√
	Hunting test	Hunting the target cable even in lots of unknown cables		√	√	√
	Measurement cable length	Measurement cable length when open			√	√
	Fiber Test	Insertion loss test of optical devices				√
	RS485 protocol test	Test the RS485 data sent from controlling device	√	√	√	√	√
	Signal Generating	Output 1channel video signal for testing monitor	√	√	√	√	√
	OSD Menu	English/Chinese OSD menu	√	√	√	√	√
	Keyboard	English/Chinese keyboard,new design with number buttons,easy to operation	√	√	√	√	√
	Screen adjuster	Adjust the screen brightness, contrast, color saturation to adapt to different working environment	√	√	√	√	√
Others	Work Temperature	-30°c -70°c	√	√	√	√	√
	Work Humidity	30%-90%	√	√	√	√	√
	The size of Indictor and remote	Indictor:206*112*49mm	√	√	√	√	√
		Remote:107*30*24mm
	The size of receiver	218*46*29mm	√	√	√	√	√
