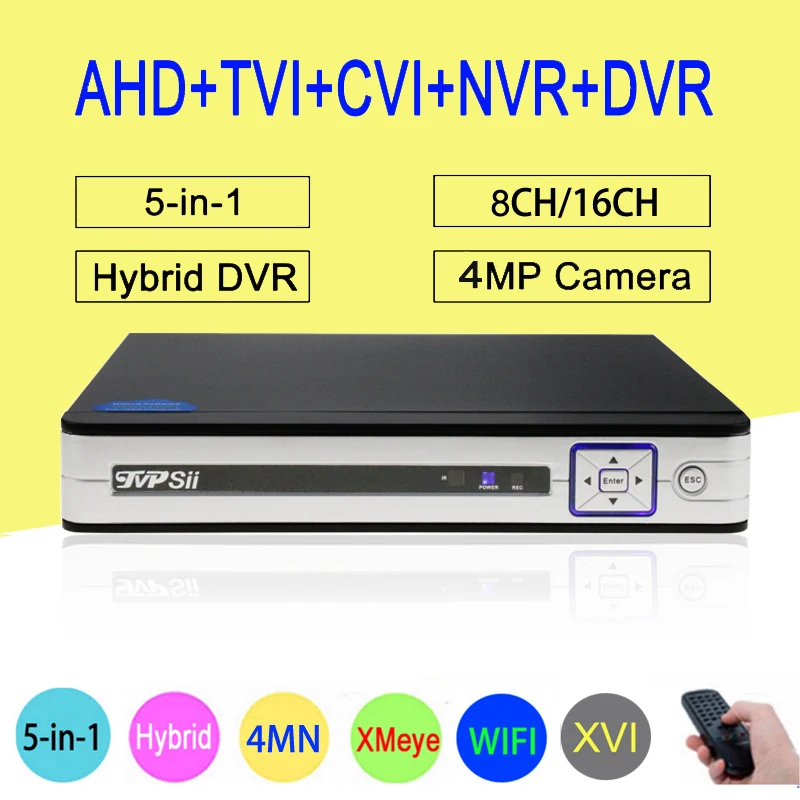

CCTV Security Cameras Product Store Choice Collections provide security surveillance,cctv camera,camera system,hidden camera Fantastic Limited 4MP,1080P,960P,720P,960H CCTV Camera Silver Panel Xmeye Hi3521A 4M-N 16CH/8CH 6 in 1 WIFI XVI TVi CVI NVR AHD DVR Free Shipping. Get Discount Now! Only US $60.35/piece at this time. Hurry buy Now before back to normal price! Normal price US $85.00 or you can Check price now. Dont waste your time. Buy Now only in Topvideo Store Trusted Seller Store!
Low-cost rate as well as cost-free delivery. Allow's acquire before costs increase.
16CH:
- analog:16*4M-N;8*1080N;16*960H;(AHD Camera+TVI Camera+CVI Camera+960H/D1 at same time)
- hybrid:8*1080N(analog)+8*960P(network)(AHD Camera+TVI Camera+CVI Camera+960H/D1 +IP Camera at same time)
- network:8*1080P+8*960P;4*4M;4*5M;
8CH:
- analog:8*4M-N;4*1080P;(AHD Camera+TVI Camera+CVI Camera+960H/D1 at same time)
- hybrid:2*1080P(analog)+2*1080P(network); 4*1080N(analog)+4*960P(network);(AHD Camera+TVI Camera+CVI Camera+960H/D1+IP Camera at same time)
- Network only::16*1080P;9*1080P;16*960P;4*5M;
A:
- 4M-N Coaxial DVR is new format DVR;
- Resolution is 1280px*1440px;
- Support 4 million pixels(4mp),2 million pixels(1080P/AHD-H),1.3 million pixels(960P/AHD-M), 1 million(720P/AHD-M) pixels AHD/TVI/CVI Camera; Analog Camera(960H) and IP Cmera(2mp/3mp/5mp).
Q: What is XVI function?
A: XVI also known as AXVI (Full name is Advanced XM Video Interface), it is a coaxial transmission video format newest developed by XM. Products with XVI are superior to competitors not only because of its compatibility with AHD,TVI protocols, but also its unique feature.
16CH:
8CH:
8CH:
| Model | 6008T-LME(H) | |
| System | Main processor | Hi3520D V300 |
| Operating system | embedded Linux | |
| System resources | Simultaneously multi-channel real-time recording, playback, network operation, USB backup | |
| Interface | Operator interface | support 16-bit true color graphical menu interface and mouse operation |
| Preview | 1/4/8/9 | |
| Video | Codec | H.264+（Quasi H.265）/H.264 |
| Monitor quality | VGA,HDMI;HD | |
| Preview ability | 8*4M-N(AHD)/8*1080N (5 in 1) | |
| Encode ability | 8*4M-N (AHD)/ 8*1080N (5 in 1) | |
| Decode ability | 8*4M-N (AHD)/ 8*1080N (5 in 1) | |
| Multi-mode input | analog: 8*4M-N;4*1080P;hybrid:2*1080P(analog)+2*1080P(network);4*1080N(analog)+4*960P(network);network:16*1080P;9*1080P;16*960P;4*5M; | |
| Motion Detection | Each screen can be set to 192 (16 * 12)detection areas; multi-level sensitivity can be set (Limited local channel) | |
| Audio | Audio compression | G.711A |
| Intercom | support | |
| Record & playback | Record mode | manual>alarm>motion detection>timing |
| Local Playback | 4ch(local input mode) | |
| Search mode | Search by time, calendar, event, channel | |
| Storage & backup | Space occupation | 1080P 20~30G/day*channel;720P ~20G/ day*channel ;960H 12~20G/ day*channel;audio;691.2M/ day*channel |
| Video storage | HDD, network | |
| Backup mode | Network, USB hard disk, USB burner, SATA burner | |
| External Interface | Video input | 8ch BNC |
| Video output | 1ch VGA, 1ch HDMI | |
| Loop Vout | N/A | |
| Audio input | 4ch RCA( Can be extended to 8ch) | |
| Audio output | 1ch RCA | |
| Alarm input | 0( Can be extended to 4ch) | |
| Alarm output | 0( Can be extended to 1ch) | |
| Network interface | RJ45 10M/100M | |
| PTZ control | 1*RS485, Support kinds of PTZ protocols | |
| USB | 2* USB 2.0 ports | |
| HDD | 1*SATA ports (Max 6TB/per) | |
| Wireless | 3G, WIFI (extend via USB) | |
| General | Power supply | 12V/2A |
| Power Consumption | <15W (without HDD) | |
| Temperature | 0 degree-+55 degree | |
| Humidity | 10%-90% | |
| Working environment | 86kpa-106kpa | |
| Dimension | 218mm*93mm | |
| Weight(mother board) | 220g |
16CH:
| Model | 6016T-LME(H) | |
| System | Main processor processor | Hi3521A |
| Interface | Preview | 1/4/8/9/16 |
| Video | Codec | H.264+（Quasi H.265）/H.264 |
| Monitor quality | VGA,HDMI:HD | |
| Encode ability | 16*4M-N/ 16*1080N(5 in 1)/16*960H | |
| Decode ability | 16*4M-N/ 16*1080N(5 in 1)/16*960H | |
| Onvif support | support | |
| Multi-mode input | analog:16*4M-N;8*1080N;16*960H; hybrid:8*1080N(analog)+8*960P(network); network:8*1080P+8*960P;4*4M;4*5M; | |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) | |
| Audio | Audio compression | G.711A |
| Intercom | support | |
| Record & playback | Record mode | manual>alarm>motion detection>timing |
| Local Playback | 16ch(local input mode) | |
| Search mode | Search by time, calendar, event, channel | |
| Storage & backup | Video storage | HDD, network |
| Backup mode | Network, USBhard disk, USB burner, SATA burner | |
| External Interface | Video output | 1ch VGA, 1ch HDMI |
| Loop Vout | N/A | |
| Audio I/O | 2(Can be extended to 6ch)/1 | |
| Alarm I/O | 0(Can be extended to 4ch)/0(Can be extended to 1ch) | |
| Network interface | RJ45 10M/100M self-adaption | |
| PTZ control | 1*RS485, Support kinds of PTZ protocols | |
| USB | 2* USB 2.0 ports | |
| HDD | 1*SATA ports (Max 6TB/per) | |
| Wireless | 3G, WIFI (extend via USB) | |
| General | Power supply | 12V/3A |
| Power Consumption | <15W (without HDD) | |
| Working environment | Temperature:0 degree - +55 degree Humidity:10%-90%,Atm:86kpa-106kpa | |
| Dimension(mother board) | 235mm*90mm | |
| Weight(mother board) | 279g |
Notice:
12V 2A Power adpater 16CH AHD Hybrid DVR will not work with 2TB,3TB or 4TB hard disk ,so must use 12V 3A power adpater!!!(many seller use 12V 2A for cutting cost,so be careful)
1.Russian Federation: 7-22 days By RETS-Express
2.Brazil: 15-30 days E-Packet
3.East Asia (Japan and Korea): 7-15 days EMS or E-Packet
4.Southeast Asia: 7-15 days E-packet or Singapore Post
5.Central Asia and South Asia: 7-20days China post
6.West Asia (Israel): E-Packet; Netherlands Post; Swiss Post, about 15-30 days
7.United States and Canada: 7-15 days E-Packet
8.Europe: E-Packet; Netherlands Post; Swiss Post, about 7-15 days
9.Oceania (Australia and New Zealand): 7-15 days E-Packet
10.DHL (America and Europe):3-10days;SPSR(Russian Federation):7-18days
Friendly Reminder:
we only spent two days (48 hours) for sent parcel , have tracking number and tracking number information,Thanks!
if you choose DHL for sent goods, please make sure that your address is not in remote areas for DHL,because it will produce huge transportation costs for remote areas, this also need pay by buyer,Thanks!
Due to different custom policy of many country, If want avoid high custom tax, we can declare a low price for goods with your request,we often delcare $18 for this hybrid dvr,Thanks!
Notice:
If you want to use WIFI function , please click the following button to buy USB WIFI Antenna Module,Thanks!
