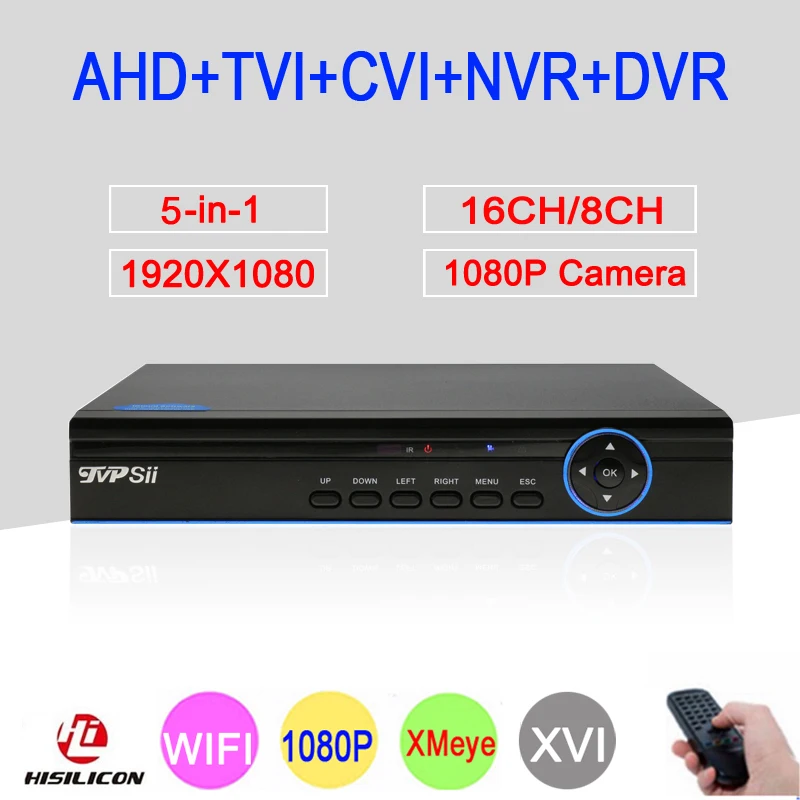

CCTV Security Cameras Product Store Choice Collections provide cctv system,hidden camera,remote cctv Fast Limited 1080P 2MP Full HD Blue Ray XMeye Hi3521A 16CH/8CH 5 in 1 WIFI Coaxial Hybrid Onvif CVI TVI NVR AHD CCTV DVR Free Shipping. Get Discount Now! Only US $63.00/piece at this time. Hurry buy Now before back to normal price! Normal price US $90.00 or you can Check price now. Dont waste your time. Buy Now only in Topvideo Store Trusted Seller Store!
16CH
- Pure Analog;16*1080P;16*1080N; 8*1080P;
- Mixed;8*1080P(Analog)+8*1080P(Network)
- Pure Network;8*1080P+8*960P;8*3M ; ;4*5M
8CH
- analog; 8*1080P,8*1080N
- Network only;8*1080+8*960P,16*960P,4*3M,4*5M
- hybrid; 4*AHD-H(analog)+4*1080P(network
Q: What is XVI function?
A: XVI also known as AXVI (Full name is Advanced XM Video Interface), it is a coaxial transmission video format newest developed by XM. Products with XVI are superior to competitors not only because of its compatibility with AHD,TVI protocols, but also its unique feature.
16CH:
8CH:
16CH 1080P DVR Screenshots:
8CH 1080P DVR Screenshots:
16CH
| Model | 6016T-MH(G) | |
| System | Main processor | Hi3531A |
| Video | Video codec | H.264 |
| Encode | 16*1080N/16*1080P | |
| Decode | 16*1080N/16*1080P | |
| Multi-mode input | Pure Analog;16*1080P;16*1080N; 8*1080P; Mixed;8*1080P(Analog)+8*1080P(Network) Pure Network;8*1080P+8*960P;8*3M ; ;4*5M | |
| Audio | Audio compression | G.711A |
| Intercom | support | |
| Recording and Playback | Record mode | Manual>alarm>motion detection>timing |
| Playback Channels | 16(pure local input mode) | |
| Storage and backup | Space occupation | 960H:12~20G/ day*channel 720P;~20G/ day*channel 1080P 20~30G/ day*channel audio:691.2M/ day*channel |
| Backup mode | Network backup,USB HDD, USB writer,SATA writer | |
| Interface | Video input | 16 BNC |
| Video output | 1ch VGA,1ch HDMI | |
| Audio input | 2ch RCA | |
| Audio output | 1ch RCA | |
| Alarm input | 4 | |
| Alarm output | 1 | |
| Network interface | RJ45 10M/100M /1000M Adaptive Ethernet port | |
| PTZ control | RS485;support multiple PTZ protocols | |
| USB | 2 USB ports | |
| Hard disk | 1 SATA(Each maximum support 6T) | |
| Wireless | 3G,WIFI(expand via USB) | |
| Other | Power | 12V/3A |
| dimension(MotherBoard) | 350mm(length)* 296mm(width)* 44mm(height) |
Notice:
12V 2A Power adpater 16CH AHD Hybrid DVR will not work with 2TB,3TB or 4TB hard disk ,so must use 12V 3A power adpater!!!(many seller use 12V 2A for cutting cost,so be careful)
8CH
| Model | 6008T-MH(G) | |
| System | Main processor | Hi3521A |
| Interface | Preview | 1/4/8/9 |
| Video | Codec | H.264 |
| Monitor quality | VGA,HDMI:HD | |
| Encode abilit | 8*1080N/8* AHD-H@15fps | |
| Decode ability | 8*1080N/4* AHD-H@15fps | |
| Onvif | support | |
| Multi-mode input | analog; 8*1080P,8*1080NNetwork only;8*1080P+8*960P,16*960P,4*3M,4*5Mhybrid; 4*1080P(analog)+4*1080P(network) ; | |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) | |
| Audio | Audio compression | G.711A |
| Intercom | support | |
| Record & playback | Record mode | manual>alarm>motion detection>timing |
| Local Playback | 4ch(local input mode) | |
| Search mode | Search by time, calendar, event, channel | |
| Storage & backup | Video storage | HDD, network |
| Backup mode | Network, USBhard disk, USB burner, SATA burner | |
| External Interface | Video input | 8ch BNC |
| Video output | 1ch VGA, 1ch HDMI | |
| Loop Vout | N/A | |
| Audio I/O | 4ch RCA ( Can be extended to 8ch)/1ch RCA | |
| Alarm I/O | 0(Can be extended to 4ch)/0(Can be extended to 1ch) | |
| Network interface | RJ45 10M/100M self-adaption | |
| PTZ control | 1*RS485, Support kinds of PTZ protocols | |
| USB | 2* USB 2.0 ports | |
| HDD | 1*SATA ports (Max 6TB/per) | |
| Wireless | 3G, WIFI (extend via USB) | |
| General | Power supply | 12V/2A |
| Power Consumption | <15W (without HDD) | |
| Working environment | Temperature:0degree-+55degree,Humidity:10%-90%,Atm:86kpa-106kpa | |
| Dimension(motherboard) | 218mm*93mm | |
| Weight (motherboard) | 220g |
1.Russian Federation: 7-22 days By RETS-Express
2.Brazil: 15-30 days E-Packet
3.East Asia (Japan and Korea): 7-15 days EMS or E-Packet
4.Southeast Asia: 7-15 days E-packet or Singapore Post
5.Central Asia and South Asia: 7-20days China post
6.West Asia (Israel): E-Packet; Netherlands Post; Swiss Post, about 15-30 days
7.United States and Canada: 7-15 days E-Packet
8.Europe: E-Packet; Netherlands Post; Swiss Post, about 7-15 days
9.Oceania (Australia and New Zealand): 7-15 days E-Packet
10.DHL (America and Europe):3-10days;SPSR(Russian Federation):7-18days
Friendly Reminder:
we only spent two days (48 hours) for sent parcel , have tracking number and tracking number information,Thanks!
if you choose DHL for sent goods, please make sure that your address is not in remote areas for DHL,because it will produce huge transportation costs for remote areas, this also need pay by buyer,Thanks!
Due to different custom policy of many country, If want avoid high custom tax, we can declare a low price for goods with your request,we often delcare $18 for this hybrid dvr,Thanks!
Notice:
If you want to use WIFI function , please click the following button to buy USB WIFI Antenna Module,Thanks!
Q: it always cause problems in trade between countries, for example , bad weather for delay, custom problem , post worker broken it, and so on
A:if you have any problem, please frist contact us, not easy input dispute or give me a bad feedback, we will try our best to help you reslove problem ,We welcome those friendly customers,Thanks!Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Fast Limited 1080P 2MP Full HD Blue Ray XMeye Hi3521A 16CH/8CH 5 in 1 WIFI Coaxial Hybrid Onvif CVI TVI NVR AHD CCTV DVR Free Shipping
