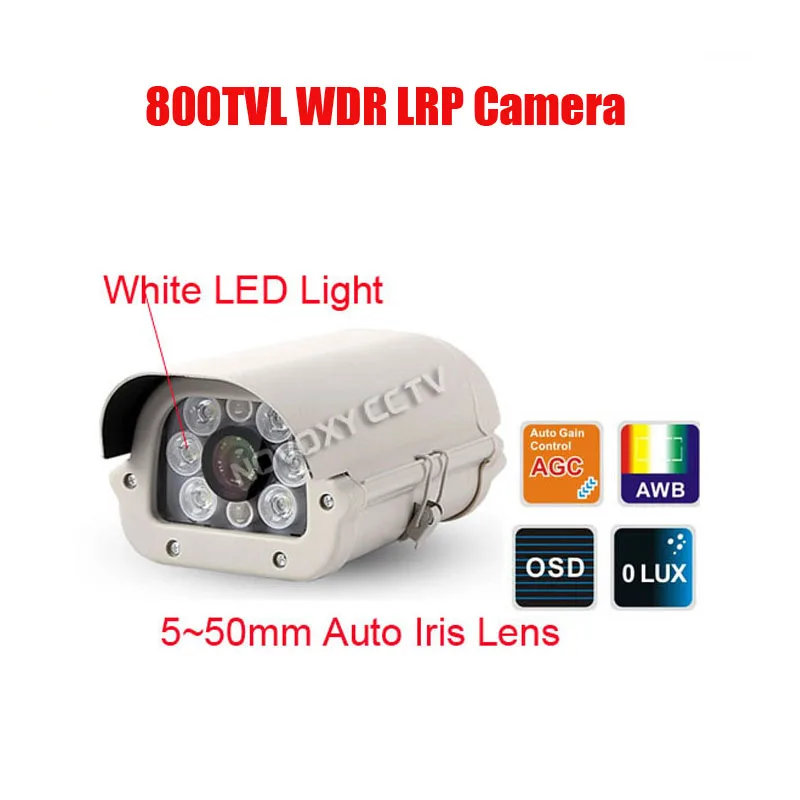

800TVL WDR CCD Effio-V Waterproof IR 30M Vehicle Car License Plate Recognition LPR Camera 5~50mm AI Lens Array LED Free Shipping
Product Description: |
This camera integrates advanced optics, electronics, Warm yellow light LED array and ambient rejection technology to deliver consistent, reliable and color vehicle body and license plate in 10m distance and slow speed scene. This camera body adopts SONY Super HAD CCD II, and the new DSP to produce high resolution up to 700TVL and clear image. It has the functions as WDR , digital noise reduction, highlight suppression. The function of shutter speed adjustable is suitable for fast moving object monitoring . Defective pixel compensation, privacy mask, motion detect and other complete function. Local OSD menu control functions are very convenient for construction and installation. The unit housing is weatherproof and field proven for successful application in extreme environment, and this camera is suitable for vehicle license plate numbercapture at low speed. Features:
|
Specifications: |
Model | SK-7970C |
Product name | Professional High Resolution White Light LPR Camera |
Video system | PAL/NTSC |
Sensor | 1/3" Sony CCD, Effio-P or Effio-V DSP |
Pixel | NTSC: 811 (H) x 508 (V) |
Resolution | Color: 650 TVL B/W: 700 TVL |
Video output | 1.0Vp~p/75 |
SNR | 50dB (AGC off) |
Illumination | 0.1 Lux/F1.2 (LED off) |
DNR | 3D |
Gamma correction | 0.45 |
White balance | ATW/AWB/MANUAL |
H-Mirror | On/Off |
Lens | 5~50mm DC lens (Upgraded from 9~22mm lens) |
White light LED | 8pcs white light array LED, 30m |
Electronic Shutter | NTSC: 1/60~1/120000 sec |
Power Supply | DC12V, 1A at DC12V (Max) |
Work environment | -20~60C, 20%~90% RH |
Temperature control | Heater works at -5C, Blower works at 45C. |
Dimension | 290 x 147 x 101 (mm) |
Remarks: Bracket is sold separately.
Package list:
1x Camera( not including power and bracket)
Tips:
1. This camera module adopts Sony 663/662 WDR CCD and 4141 Effio-V WDR DSP, which is a true hardware WDR chipset solution featuring superior dyanmic range image performance.
2. What is WDR (Wide Dynamic Range) function: Wide Dynamic Range (WDR) Technology uses two shutter speeds in alternative video fields, high and normal, and combines these two fields into one frame. It allows every detail to be captured accurately even if one portion is bright while other portions are dark. As a result, combined fields yield a frame of high quality images.
WDR describes an attribute of an imaging system that can record greater scene details, from shadows to highlights than normal. Having "wide dynamic range" is a relative term that can describe both the capability of a sensor or other imaging system, as well as the contents of an image file containing such data. The amount of dynamic range in an image which would qualify as "wide" changes over time as new systems are developed. WDR is desirable for photography and video-based systems due to its greater latitude in manipulating images. Cameras with wide dynamic range capability are commonly used in surveillance cameras, video systems, and some medical applications. In surveillance, WDR is intended to provide clear images even under backlighting, where the intensity of illumination varies a lot - namely when there are very bright and very dark areas simultaneously in the cameras field of view. WDR allows an imaging system to correct for the intense back light surrounding a subject and thus enhances the ability to distinguish features and shapes on the subject. WDR cameras are usually recommended for situations where light enters a premise from various angles such as a multi-window room. A camera placed on the inside of the room will be able to see through the intense sunlight or artificial light coming in. If an indoor security camera is pointed towards a window or an entrance door, you will see the background washed out during daytime. This is a common occurrence in restaurants and stores with large glass windows.
Application: Vehicle license plate recognition system, entrance surveillance in stores/banks/restaurants/etc., parking lot management, ATM, etc.
Below is a comparison of Effio-V WDR camera technology with its video images of regular (WDR Off) and Wide Dynamic Range On.
