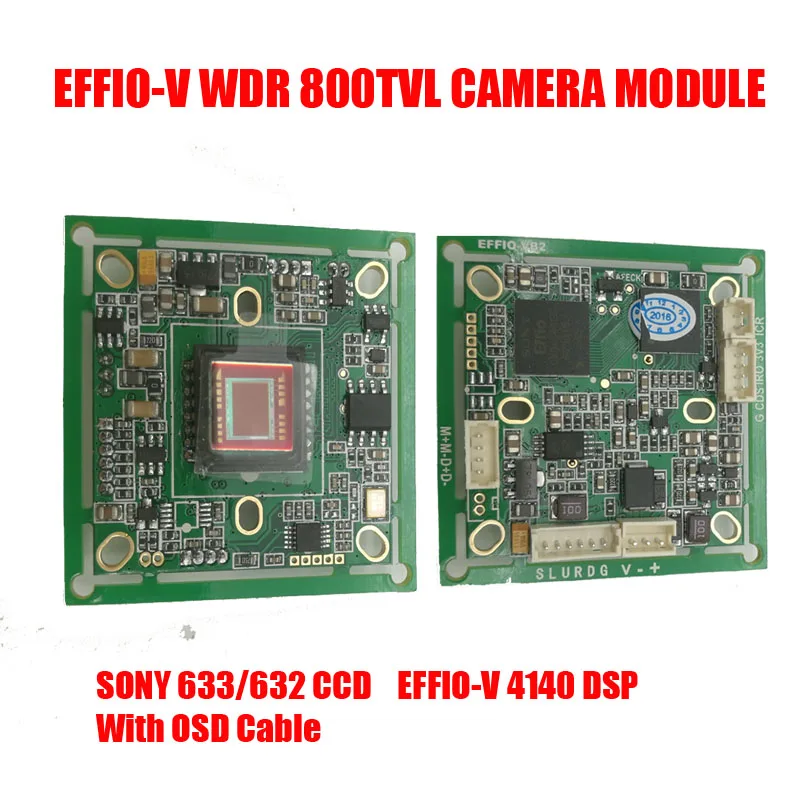

DIY 800TVL Sony 663 WDR CCD+Effio-V DSP Analog CCTV PCB Board Camera Module OSD Control Cable HLC Motion Detection Free Shipping
Notice: 1. Please write PAL or NTSC when you place order. NTSC is mainly used in USA, Canada, Korea, Japan, Israel, Philippines, Taiwan of China and partial Latin American countries.2. 2.1/2.8/3.6/6/8/12mm fixed board lens is optional and sold separately. If lens is need, please place order and leave message for us to revise the total cost, or contact us directly to get quotation for camera module assembly including lens/lens holder/screws.Tips:
1. This camera module adopts Sony 663 WDR CCD and 4141 Effio-P/V WDR DSP, which is a true hardware WDR chipset solution featuring superior dyanmic range image performance.
2. What is WDR (Wide Dynamic Range) function: Wide Dynamic Range (WDR) Technology uses two shutter speeds in alternative video fields, high and normal, and combines these two fields into one frame. It allows every detail to be captured accurately even if one portion is bright while other portions are dark. As a result, combined fields yield a frame of high quality images.
WDR describes an attribute of an imaging system that can record greater scene details, from shadows to highlights than normal. Having "wide dynamic range" is a relative term that can describe both the capability of a sensor or other imaging system, as well as the contents of an image file containing such data. The amount of dynamic range in an image which would qualify as "wide" changes over time as new systems are developed. WDR is desirable for photography and video-based systems due to its greater latitude in manipulating images. Cameras with wide dynamic range capability are commonly used in surveillance cameras, video systems, and some medical applications. In surveillance, WDR is intended to provide clear images even under backlighting, where the intensity of illumination varies a lot - namely when there are very bright and very dark areas simultaneously in the cameras field of view. WDR allows an imaging system to correct for the intense back light surrounding a subject and thus enhances the ability to distinguish features and shapes on the subject. WDR cameras are usually recommended for situations where light enters a premise from various angles such as a multi-window room. A camera placed on the inside of the room will be able to see through the intense sunlight or artificial light coming in. If an indoor security camera is pointed towards a window or an entrance door, you will see the background washed out during daytime. This is a common occurrence in restaurants and stores with large glass windows.
Application: Vehicle license plate recognition system, entrance surveillance in stores/banks/restaurants/etc., parking lot management, ATM, etc.
Below is a comparison of Effio-V WDR camera technology with its video images of regular (WDR Off) and Wide Dynamic Range On.
3. What is HLC (Highlight Compensation): Highlight Compensation suppresses strong light sources (such as the headlights of automobiles, flashlights, etc.) in dark places and prevents camera from being blinded.
Specifications:
Pick-up Device Image Processor | 1/3" Sony 663 CCD (WDR), 960H Sony Effio-V 4141 DSP (WDR) |
| CCD Size | 38*38mm |
| Pixel | PAL: 1020Hx596V (610K Pixels) NTSC: 1020Hx508V (520K Pixels) |
| Effective Pixel | PAL: 976Hx582V (570K Pixels) NTSC: 976Hx494V (480K Pixels) |
| System | PAL/NTSC |
| Horizontal Resolution | 800TVL |
| OSD menu | Supported |
| Minimum Illumination | 0.001LUX/F1.2 |
| S/N | ≥54dB |
| Lens | Auto/Manual |
| Shutter/AGC | Auto/Manual |
| Image Adjustment | Mirror/Contrast/Sharpness |
| WDR (Wide Dynamic Range) | 150dB |
| Day/Night | Auto/Manual |
| HLC/BLC | Off/ HLC (Highlight Compensation)/ BLC (Backlight Compensation) |
| Motion Zone Detection | On/Off |
| Language | Chinese/English/Japanese/Germany/French/Russia/Portuguese/Spanish |
| White Balance | ATW/Single Press/User1/User2/Color Roll Suppression/ Manual/Single Press Locking |
| DNR (Digital Noise Reduction) | Off/Low/Middle Low/Middle/Middle High/High |
| Digital Zoom | 0-255 |
| DIS (Digital Image Stabilizer) | On/Off |
| Privacy Mask | Zone/Mode/Position/Color/Transparence/Mosaic |
| Motion Detection | On/Off |
| Reset | Available |
| Video Output | 1.0Vp-p/75Ω |
| Electronic Shutter | 1/50(1/60) ~ 1/100,000(S) |
| Audio | No |
| Working Humidity | 90% |
| Power Input | DC12V ±5% |
| Working Temperature | -10 ~ +60C Degrees |
| Storage Temperature | -20 ~ +70C Degrees |
Package List:
1xCCD Board
1xOSD Cable
Remarks:
1. Above one-button cable controller is used for OSD (On-screen Display) menu settings. It is available to set the cameras to the best status according to your actual application condition.
2. Fixed lens or vari-focal board lens is available to be provided based on extra charge.
(1) Mount 2.1mm lens: Extra USD2, assembled including lens holder and screws,
(2) Mount 2.8mm lens: Extra USD1.5, assembled including lens holder and screws,
(3) Mount 3.6/6/8mm lens: Extra USD1, assembled including lens holder and screws.
Please note:
The board defaut lens mode is "MANAUL", if you use auto iris lens. need to switch "MANUAL "to "AUTO". otherwise do not show any image.
