CCTV Security Cameras Product Store Choice Collections provide security camera,security surveillance,camera system Fast Offers Free shipping New 2MP IR 30M 4x Optical Zoom AHD TVI CVI CVBS 4 In 1 PTZ Bullet Camera 2 Megapixel 2.8~12mm. Price at this time US $65.80/piece. Check price now to get discount! Dont waste your time. Buy Now only in MYESOURCES Trusted Seller Store!

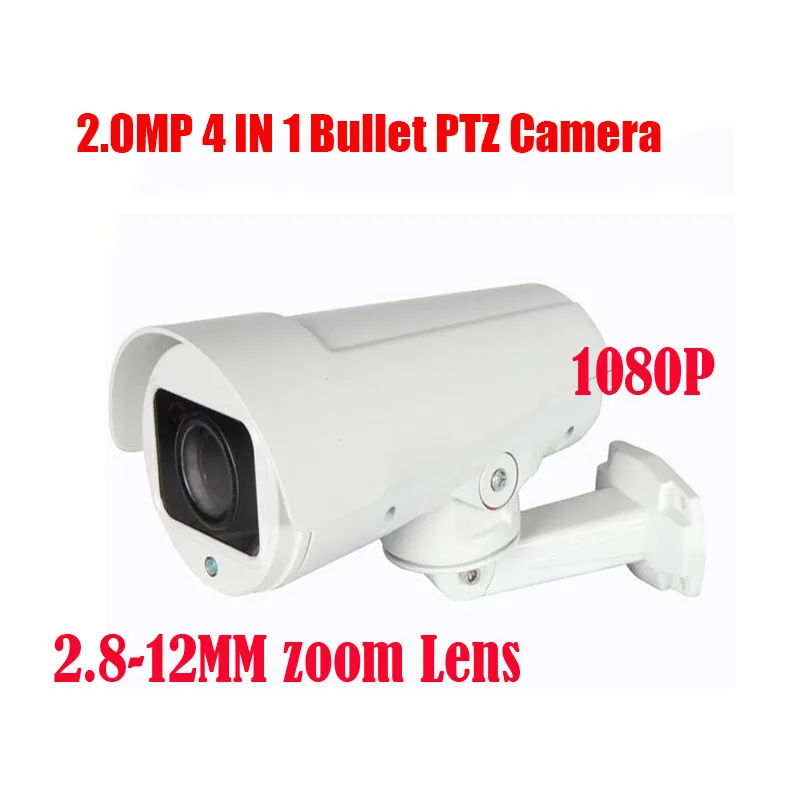

Free shipping New 2MP IR 30M 4x Optical Zoom AHD TVI CVI CVBS 4 In 1 PTZ Bullet Camera 2 Megapixel 2.8~12mm
Note: 1.defualt AHD signal ouput. please leave message that you want signal ouput
2. the camera only can electirc control pan rotation, the tilt rotation is manual controlled.
3. the coaxial control function is not suitable for all brand DVR. if your DVR can not control the camera , you can control it via the RS485 interface.
* Keep original analog system | ||||
* Real time transmission,lossless video | ||||
* High definition 1080P 4XZoom | ||||
* OSD menu available / IR distance 30M | ||||
* Total metal body construction,IP 66 rate protection | ||||
* A-B scan, tour available | ||||
*Support coaxial function with XM / Raysharp and so on *Support AHD/TVI/CVI/CVBS Output | ||||
Lens | 4X/ 2.8mm~12mm | |||
Sensor | 1/3” Progressive scan CMOS | |||
Total pixel | 2.0MP | |||
Resolution | 1080P/30fps /1080p/25fps | |||
Rotation | Pan：160º | |||
Pan speed | 0-30°/s | |||
IR range | 30M | |||
IR control | PWM | |||
AB scan | Support, 0-160 degree | |||
AB speed | 1-9 grade selectable | |||
Preset | 220 | |||
Tour | 3 groups ( each group 16 preset、dwell time and speed selectable) | |||
Calibration | support | |||
FOV | H: 106.6°（W）～51.8°（T） V：76.8°（W）～38.8°（T） | |||
BW | Auto | |||
Focus | Auto/Manual | |||
BLC | Adjust | |||
Power | DC12V(2A) | |||
Temperature | Indoor:0º~+40º Outdoor:-40ºC～+60ºC | |||
Thunder Proof | 6000V | |||
Package Size | W265mm*D137mm*H130mm | |||
Weight | NW: 0.83KG/GW: 0.98KG | |||
Special Instruction For The 4 IN 1 Series camera
1.1 Overview for 4 in 1 products(Support AHD/ CVI/ TVI/ CVBS output)
Basic on single HD Analog coaxial series,( AHD/TVI/CVI/CVBS series), the 4 in 1 series have combined the 4 single output signal together,it can be switched the video signal freely between the AHD/TVI/CVI/CVBS by shortcut commends. This gives great convenience for all application, reduce cost, and easy for maintenance.
1.2 Two ways to switch the video signal
A.Call twice preset 102 to enter the Sub OSD menu.
Press “Zoom+” or “Zoom-” to move the option to the item 1.
Press the “Focus+” or ”Focus-” to switch to the signal output needed,
Then press “ zoom+ or Zoom- to the item 6“ RETURN”
Call twice 102 again to exit from the Sub OSD menu.
B.Direct shortcut commend to switch the video output signal needed. Please
Reference to the below table for details.
Remark:
Please do not change the parameter of the Sub OSD menu randomly to avoid any unexpected happen.
Please reboot the PTZ after switch the video signal output.
1.3 Shortcut commend list.
Shortcut commends are complaince with Pelco D and its Extended protocol. User can use the shortcut commend to enable the function directly.
Preset No. | Function | Preset No. | Function |
81（41） | Auto day/ night | 97 | Call tour 2 |
82（42） | Switch to night | 98（38） | Call tour 1 |
83 | Switch to day | 99（39） | Pan scan |
84 | Force on far light | Twice 137 | Switch to AHD |
85 | Force on near light light | Twice 138 | Switch to TVI |
92 | A-B Scan | Twice 139 | Switch to CVI |
94 | OSD off | Twice 140 | Switch to CVBS |
95 | OSD on | Twice 115 | Switch to NTSC |
96 | Call tour 3 | Twice 116 | Switch to PAL |
Remark:
Because the limit of COC protocol,it is possible that some of the shortcut commend are not valid when connected to some of the controlled equipment.
If no video or video is stuck in black and white, please make sure the video output of the signal, the TV system ( NTSC/Pal) between the PTZ and the controlled equipment to be consistent, if not, please adjust accordingly.
