CCTV Security Cameras Product Store Choice Collections provide spy camera,remote cctv,security camera,cctv system Excellent Promo Wanglu New upgraded IV7W 4.3 Inch 5MP 4MP AHD TVI CVI CVBS Analog CCTV Camera Tester Monitor UTP PTZ Audio test DC12V Output. Price at this time US $74.90/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!
This Flash Deal Excellent Promo Wanglu New upgraded IV7W 4.3 Inch 5MP 4MP AHD TVI CVI CVBS Analog CCTV Camera Tester Monitor UTP PTZ Audio test DC12V Output item is really unique, made with top quality products absolutely long lasting for use in a lengthy period. Prior to you utilize it, ensure you check out the guide thoroughly. When utilizing it, do not make an error. Quality products ensure your life a lot more comfy when utilizing it. You can straight contact the sales to get even more details concerning this top quality goods if you are interested to get it.
Item Descriptions:

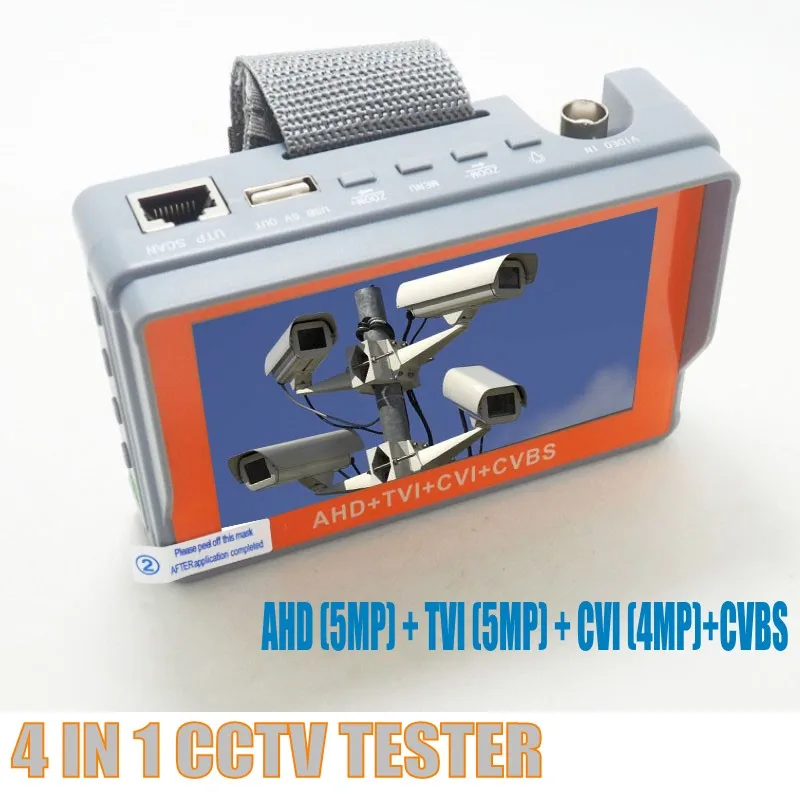

New upgraded IV7W 4.3 Inch 5MP 4MP AHD TVI CVI CVBS Analog CCTV Camera Tester Monitor UTP PTZ Audio test DC12V Output
IV7W support CVBS + AHD (5MP) + TVI (5MP) + CVI (4MP) Camera VideoTest:
(1) HD AHD Camera test: Support 5MP 4MP 3MP 1080P 720P Camera Video test;
(2) HD TVI Camera test: Support 5MP 4MP 3MP 1080P 720P Camera Video test;
(3) HD CVI Camera test : Support 4MP 3MP 1080P 720P Camera Video test;
Product overview:
HD AHD TVI CVI Analog CVBS Camera Tester
The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, like TVI,CVI, AHD,Analog, CVBS. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, cable testing, LED lamp etc.
Main Features:
● 4.3-inch LCD 480 * RGB * 272 (QVGA) resolution, 64K color
● Support PAL/NTSC standard video signal. CVBS testing.
● PTZ controller
Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
● Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
● UTP Network cable testing
Display UTP cable connection status , cable type and the sequence of wires as well as read the number of the test box.
● TVI camera test
HD TVI video surveillance testing, When TVI signal input, the tester will display HD TVI camera image.
● CVI camera test
HD CVI video surveillance testing, When CVI signal input, the tester will display HD CVI camera image.
● AHD camera test
HD video surveillance testing. When AHD signal input, the tester will display the AHD camera image.
● LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
Specifications:
Model | IV7W |
Video test | |
Video System | NTSC/PAL Automatically recognize |
Video level | 1VPP |
Display screen | 4.3 inch LCD RGB 480 * 272 (QVGA) resolution, 64K color |
Screen adjustment | Video display brightness, contrast, color saturation adjustable, LCD backlight brightness adjustable |
Video input / output | 1 channel BNC Video IN |
HD AHD ，TVI Test | |
SD signal Format | NTSC,PAL |
Video signal | HD AHD,TVI,CVI,CVBS |
Resolution | D1,720P,960p,1080P,3MP,4MP,5MP |
MAX Support 5MP,4MP AHD 20FPS ; 5MP 4MP TVI 20FPS | |
Signal Level | 1Vpp |
12V power output | |
Power output | Temporary power output 12V 1A DC |
USBX1 5V1A output | |
Audio test | |
Audio test | Input audio signal, and played on the internal speaker |
Power supply | |
External power supply | DC 5V（2A） |
Battery-powered | Built-in 3.7V li-polymer battery, Capacity 2600mAh |
Charge | Charge time 3-4 hours Battery power time 8 hours |
Power saving features | Low power consumption, automatic power off, Real-time display of battery level |
System settings | |
Language settings | Chinese, English user selectable |
Auto power off | Disable / 5-60 minutes |
Cable test | |
cable test | Test any two or more wire cable Display connect sequence and remote number |
LED Light | 1*35lm LED light |
Working environment and Specifications | -20℃---+70℃/30%-90%Rh |
Packing list:
HD AHD+TVI+CVI+CVBS CCTV Tester x 1
AC/DC Adapter x 1
Power Output Cable x1
Transformer x 1
A/V Cable x 1
Video Cable x 1
Date Cable x 1
Wristbands x 1
Item Pictures:
