CCTV Security Cameras Product Store Choice Collections provide cctv camera,camera system,cctv system Big Stock Offers HUISUN POE 2MP 1080P IP IR Speed Dome 20X optical zoom IR distance 150M H.264 support ONVIF 2.0 PTZ IR CCTV Security. Price at this time US $485.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in PTZ IP Camera Store Trusted Seller Store!

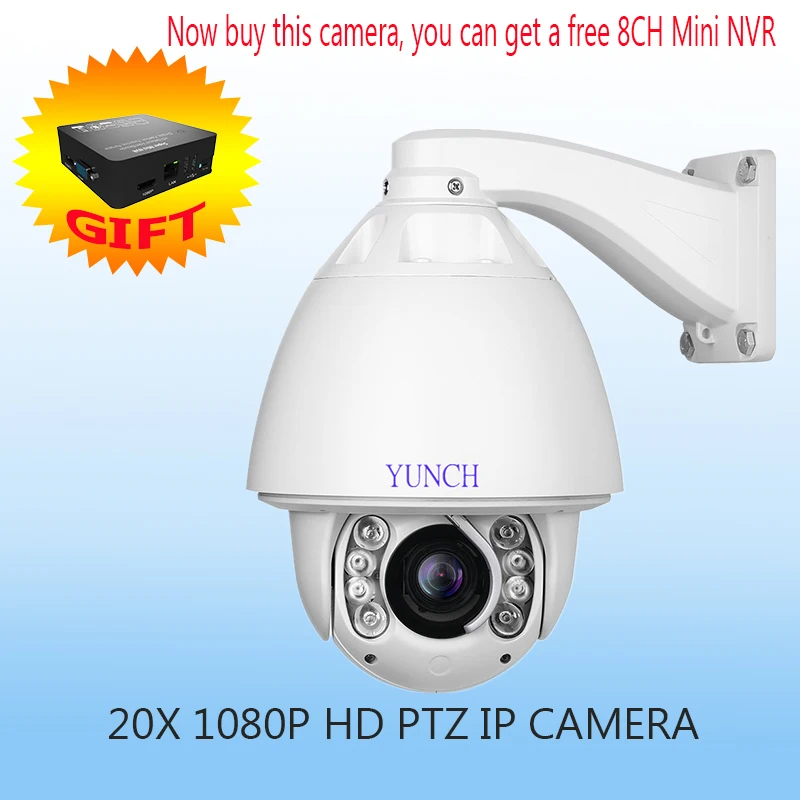

HUISUN POE 2MP 1080P IP IR Speed Dome 20X optical zoom IR distance 150M H.264 support ONVIF 2.0 PTZ IR CCTV Security
Specification
1)SONY 1/2.7"COMS,1080P IP IR Speed Dome
2)20X optical zoom, F=5-90MM,IR distance: 150M
3)Manual control:180°/s,Horizontal: 360°,Vertical:90°,180°auto overturn
4)H.264 video coding, Main Profile;MJPEG/JPEG Baseline
5)1920*1080,25F/S
6)Support: TCP/IP,UDP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP, UPNP
7)Also support ONVIF
| MODEL | YC-HD785R-20X | |
| Processor | SONY 1/2.7"COMS | |
| Video Compression Standard | H.264 | |
| Image Sensor | SONY 1/2.7"COMS | |
| Valid Pixel | 2 million | |
| Communication Interface | VISCA protocol (CMOS 3.3V) | |
| Minimum Illuminance | 0.1lux (ICR ON, 1/25sec) | |
| Synchronization Method | Inter-sync | |
| Zooming Rate | 20 times optical zoom | |
| Focal Length | f=5mm(Wide angle)~90mm(far post) | |
| Image Angle | 53.2°(Wide angle)~5.65°(far post) | |
| Max Frame Rate | 1080P25 Frame/S | |
| Video Resolution | 1920*1080(1080P),1280*720(720P) ,720*576(D1),352*288(CIF) | |
| Code Stream Type | Video stream:1080P or 720P ,D1,CIF can be selected | |
| Video Compression Code Rate | 16Kbps~8Mbps | |
| Image Delay | <200 millisecond(LAN) | |
| Internet Interface | RJ-45 10/100M network self-adjustable | |
| Internet Protocol | RTSP/RTP/RTCP/HTTP /DHCP/MUDP/SMTP/UPNP/ DDNS | |
| Trigger Condition | Video motion detect/video loss | |
| Aperture | Auto | |
| Focus | Auto/Manual | |
| Electronic Shutter | Auto/manual | |
| White Balance | Auto/manual | |
| Gain Control | Auto/manual | |
| ICR Switch | Auto/manual | |
| Mirror | Up down/left right/up down + left right | |
| Image Adjust | Brightness/definition/contrast/color enhance | |
| RJ45 | Ethernet 10/100M network self-adjustable | |
| Motion Detection | Sensitivity 1~100 adjustable, linkage alarm can be setted | |
| Video Loss | Sensitivity 1~100 adjustable, linkage alarm can be setted | |
| Manually Horizontal Rotate Speed | 0.1º~140º/S,max manual speed can be adjusted between 115 º~160 º/S, max speed is 350º/S when rotate to preset position | |
| Manually Vertical Rotate Speed | 0.1º~120º/S,max manual speed can be adjusted between 95 º~140 º/S, max 300º/S when rotate to preset position | |
| Rotate range | Horizontal 360º no limit rotate, vertical -5º~90º,max angle can be adjusted between 85 º~90º | |
| Auto flip function | Auto-flip 180º when vertical 90° | |
| Pan/tilt function | Running speed automatically adjusted following the change of zoom ratio | |
| Left & Right Scan Speed | 256 grades adjustable | |
| Area indicate | Can set 8 area | |
| No. of prset positions | 256 | |
| Tour group | 4 groups | |
| No. of tour group supervision point | Max 24 preset positions | |
| Privacy protection | 16 | |
| OSD menu | English | |
| IR Light | ||
| IR | 11 high power IR lamps/illumination distance can reach 100 meters | |
| Brightness mode of IR lamps | Indoor, outdoor, manual low, manual medium, manual high etc different modes for different situation | |
| IR lamp max power consumption | 8W | |
| Control of the startup of IR lamps | Controlled by photosensitive resistor / controlled by zoom module, 2 modes available | |
| External Interface | ||
| RJ45 | Ethernet 10/100M self-adapted | |
| Return to factory default setting button | Button | |
| DC power interface | DC12V/3A | |
| General Regulation | ||
| Power Supply | DC12V±10%(3A) | |
| Max power consumption | 30W | |
| Working environment | Temperature -25°C~60°C; relative humidity: ≤95% non-condensation | |
| Protection level | IP66 | |
| Weight | 7Kg | |
MINI NVR Specification
| Model Number | N6200-8E | |
| Operating System | Embedded LINUX operating system | |
| Image Code Control | Image code quality adjustable, variable bitstream and constant bitstream optional | |
| Dual Stream | Each channel can set main stream and sub stream | |
| Video Standard | 1080P(1920×1080)30fps/960P/(1280×960)/720P(1280×720)30fps | |
| Monitoring Image Quality | 1080P(1920×1080) / 960P/(1280×960)/720P(1280×720) | |
| Image Motion Detection | Each screen can set mutiple detection areas and set 6-level sensitivity（IPC Support） | |
| Recording Playback Quality | 4ch playback in8ch 720/960P mode; 1ch 1080P playback in 8ch 1080P mode | |
| Region Cover | Every channel can set 4 cover regions（IPC Support） | |
| Recording Mode | Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support) | |
| Backup Way | Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup | |
| Operation Way | Mouse | |
| Local Login | User name and password | |
| Recording Storage | Local HDD, network | |
| External Ports | Video Input | ① 8×(1280*720)+sub[640*360]+1Ref.+4Play 8CH 1.0MP IP Camera |
| ② 8×(1280*960)+sub[640*480]+4Ref.+1Play 8CH 1.3MP IP Camera | ||
| ③ 8×(1280*960)+sub[720*576]+2Ref.+1Play 8CH 1.3MP IP Camera | ||
| ④ 8×(1920*1080)+sub[720*576]+1Ref.+1Play 8CH 2.0MP IP Camera | ||
| Audio Input | 8ch network audio input | |
| Video Output | 1ch VGA+1ch HDMI | |
| Network Port | 1 RJ45,10M/100M self-adaptive LAN port | |
| USB Port | 2 USB 2.0 ports | |
| Wireless Port | NO | |
| HDD | Mobile HDD/E-SATA/USB Disk | |
| Mobile Surveillance | Support( iPhone, Windows Mobile, BlackBerry, Symbian,Android) smart phone | |
| Power Supply | 5V2A | |
| Power Consumption | ≤10W（without HDD） | |
| Working Temperature | -10℃～＋55℃ | |
| Working Humidity | 10％-90％ | |
| Dimension | Equipment：88mm×88mm×32mm，Packing：185.5mm×115.5mm×36mm | |
| Weight(without HDD) | N.W.: 105g; With packing:250 | |
| Outside Carton | 30 pcs/carton. 365mm×350mm×188mm; Weight: 8kg | |
| Installation Way | Desktop Installation | |
